Deye battery module, 7.68 kWh, 38.4 V LiFePO4, BOS-A-Pack7.68

Deye battery module, 7.68 kWh, 38.4 V LiFePO4, BOS-A-Pack7.68

38.4 V
€1,572 Tax included

€1,310 Tax excluded

BOS-A-Pack7.68 is a 38.4 V, 200 Ah, 7.68 kWh LiFePO4 battery module for Deye BOS-A high voltage systems. It has a nominal charge and discharge current of 160 A, IP20 protection and a weight of 66 kg. It connects in series, from 7 to 21 modules, with a BOS-A-PDU-2 control box.

Reference BOS-A-Pack7.68

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

BOS-A-Pack7.68 - LiFePO4 battery module, 7.68 kWh

BOS-A-Pack7.68 is a 38.4 V, 200 Ah, 7.68 kWh lithium iron phosphate (LiFePO4) battery module designed for Deye BOS-A small-scale commercial and industrial storage systems. Modules connect in series, from 7 to 21 modules, together with a BOS-A-PDU-2 HV control box, to build systems from 53.76 to 161.28 kWh.

Main features:

  • Nominal energy: 7.68 kWh
  • Nominal voltage: 38.4 V
  • Rated capacity: 200 Ah
  • Nominal current: 160 A, charge and discharge
  • Operating temperature: charge 0 ... 55 °C, discharge -20 ... 55 °C
  • Ingress protection: IP20
  • Weight: 66 kg

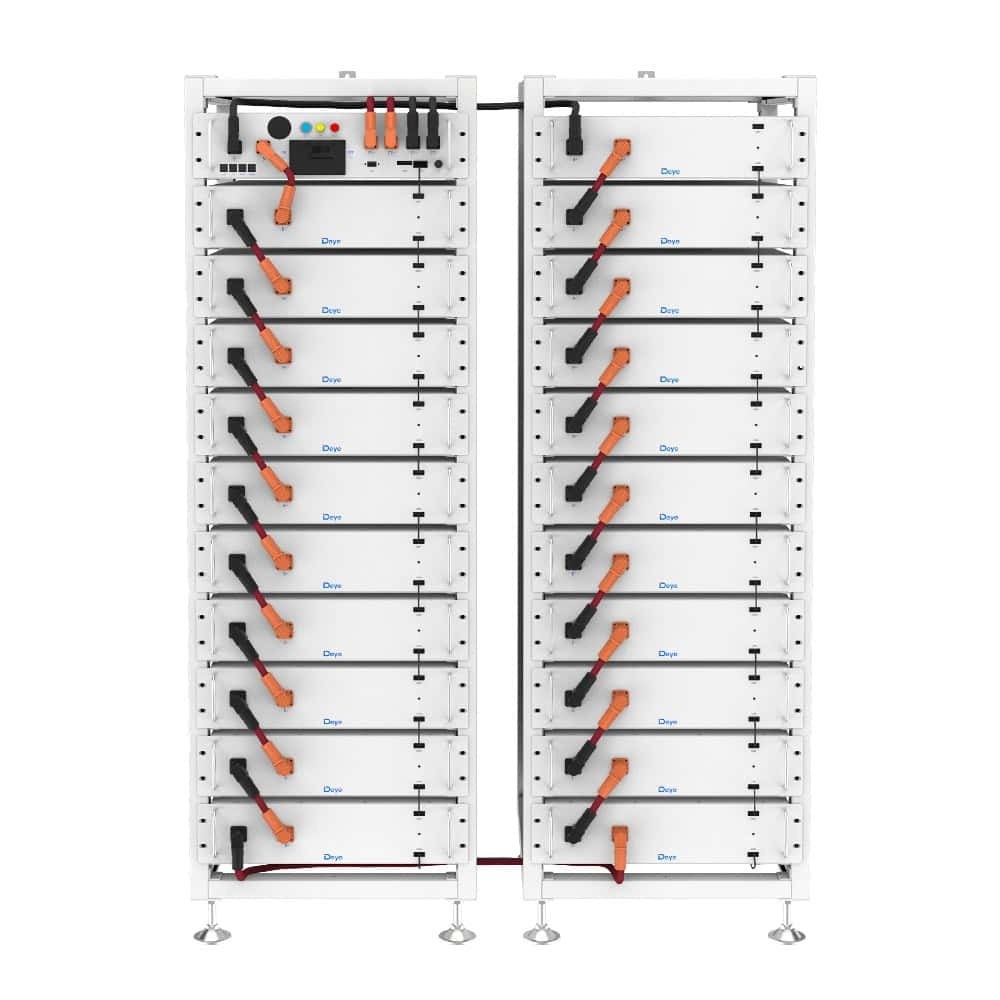

The module is installed in BOS-A racks of 3U design, of type BOS-A-Rack9, BOS-A-Rack11 or BOS-A-Rack14. A system consists of 7 to 21 modules in series and a BOS-A-PDU-2 control box, with a nominal voltage of 268.8 to 806.4 V.

The BOS-A series has a cycle life of at least 6000 cycles at 25 ± 2 °C and 0.5C, down to 70 % of capacity, with a recommended depth of discharge of 90 %. Up to 16 battery racks can be connected in parallel, together with up to 10 inverters in AC parallel.

Technical specifications

Cell chemistryLiFePO4
Nominal energy7.68 kWh
Nominal voltage38.4 V
Rated capacity200 Ah
Nominal charge/discharge current160 A
Charging temperature0 ... 55 °C
Discharging temperature-20 ... 55 °C
Storage temperature0 ... 35 °C
Ingress protectionIP20
Dimensions (W x D x H)576 x 632 x 135.2 mm
Approximate weight66 kg

Data sheet

Reference
BOS-A-Pack7.68
MPN
BOS-A-Pack7.68
Product type
Battery
Battery chemistry
LiFePO4 (lithium iron phosphate)
Battery voltage
HV (high voltage)
Nominal voltage (exact)
38.4 V
Nominal capacity
200 Ah
Capacity class
6-20 kWh
Nominal energy
7.68 kWh
Max. continuous discharge current
160 A
Max. charge current
160 A
Dimensions (H x W x D)
135.2 x 576 x 632 mm
Weight
66 kg
Ingress protection (IP)
IP20
Operating temperature
charge 0 ... 55 °C, discharge -20 ... 55 °C
Standards and compliance
CE, IEC 62619, IEC 62040, UN38.3, VDE-2510

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
