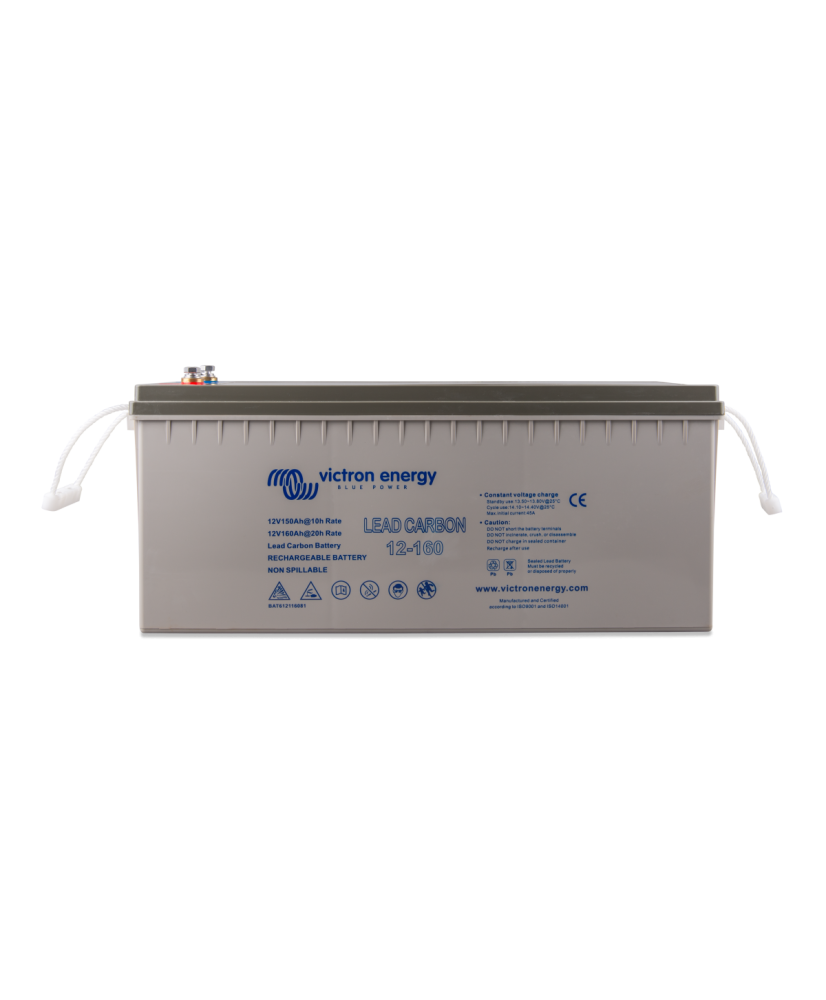

Lead Carbon Battery 12V/160Ah (M8) Victron Energy
  • Lead Carbon Battery 12V/160Ah (M8) Victron Energy
  • Lead Carbon Battery 12V/160Ah (M8) Victron Energy
  • Lead Carbon Battery 12V/160Ah (M8) Victron Energy
  • Lead Carbon Battery 12V/160Ah (M8) Victron Energy
  • Lead Carbon Battery 12V/160Ah (M8) Victron Energy
  • Lead Carbon Battery 12V/160Ah (M8) Victron Energy

Lead Carbon Battery 12V/160Ah (M8) Victron Energy

12 V
€603 Save €91
€512 Tax included

€427 Tax excluded

Lead Carbon 12V/160Ah (M8) is a battery in which the active material of the negative plate is replaced by a lead carbon composite. This reduces sulfation, allows a lower charge voltage with higher efficiency and less corrosion, and improves cycle life. It suits off-grid solar systems and boats where the battery often operates at partial state of charge.

Reference BAT612116081

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

Lead Carbon 12V/160Ah (M8) - Deep cycle lead carbon battery

Lead Carbon 12V/160Ah (M8) is a battery in which the active material of the negative plate is replaced by a lead carbon composite. This reduces sulfation, allows a lower charge voltage with higher efficiency and less corrosion, and improves cycle life. It suits off-grid solar systems and boats where the battery often operates at partial state of charge.

Main features:

  • Voltage and capacity: 12 V, 160 Ah (C20)
  • Cycles at 100% DoD: 500 cycles
  • Partial discharge cycles: 1,000 at 60% DoD, 1,400 at 40% DoD
  • Cold cranking amps (CCA): 600 A
  • Terminals: M8 threaded inserts
  • Dimensions and weight: 532 × 207 × 226 mm, 55 kg

Replacing the active material of the negative plate by a lead carbon composite potentially reduces sulfation and improves charge acceptance of the negative plate.

The advantages of lead carbon therefore are:

  • Less sulfation in case of partial state-of-charge operation.
  • Lower charge voltage and therefore higher efficiency and less corrosion of the positive plate.
  • And the overall result is improved cycle life.

Technical specifications

Nominal battery voltage12 V
Nominal battery voltage (class)12
Nominal battery capacity160 Ah
Capacity (C20)160 Ah
Capacity (C10)150 Ah
Capacity (C5)138 Ah
ChemistryLead-acid
TechnologyLead carbon
Seal typeSealed VLRA (Valve Regulated Lead Acid)
Cold cranking amps (CCA)600 A
Reserve capacity290 Ah
Cycle design life at 100 % DoD500 cycles
Cycle design life at 60 % DoD1000 cycles
Cycle design life at 40 % DoD1400 cycles
Recommended absorption charge voltage14.1 … 14.6 V
Recommended float charge voltage13.5 … 13.8 V
Recommended storage charge voltage13.2 … 13.5 V
Battery terminalsM8 threaded inserts
Weight55 kg
Length532 mm
Width207 mm
Height226 mm

Data sheet

Reference
BAT612116081
EAN13
8719076045472
Brand
Victron Energy
Product type
Battery
Battery chemistry
Lead-carbon
Battery voltage
12 V
Nominal voltage (exact)
12 V
Nominal capacity
160 Ah
Capacity class
1-2.5 kWh
Nominal energy
1.92 kWh
Dimensions (H x W x D)
226 x 207 x 532 mm
Weight
55 kg

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
