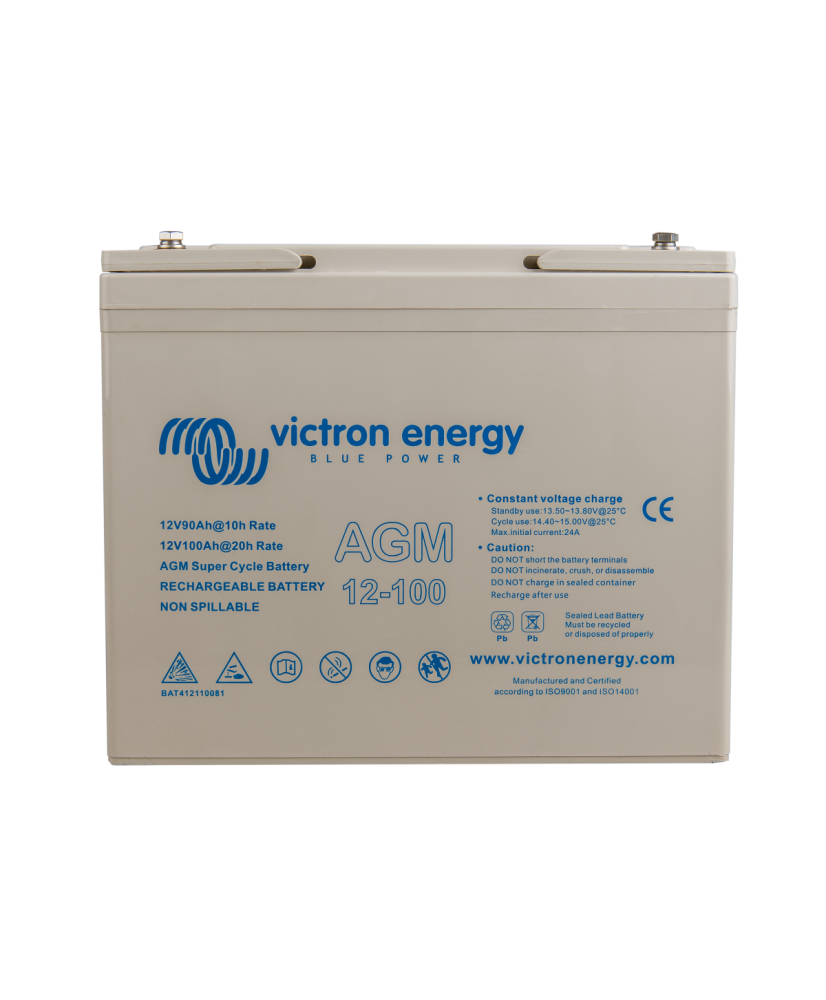

12V/100Ah AGM Super Cycle Battery (M6) Victron Energy
  • 12V/100Ah AGM Super Cycle Battery (M6) Victron Energy
  • 12V/100Ah AGM Super Cycle Battery (M6) Victron Energy
  • 12V/100Ah AGM Super Cycle Battery (M6) Victron Energy
  • 12V/100Ah AGM Super Cycle Battery (M6) Victron Energy

12V/100Ah AGM Super Cycle Battery (M6) Victron Energy

12 V
€356 Save €54
€302 Tax included

€252 Tax excluded

AGM Super Cycle 12V/100Ah (M6) is an AGM battery designed for applications with frequent deep discharges. Improved electrochemistry makes it resistant to sulfation and plate softening even after repeated 100% discharges, with tests showing at least 300 full cycles. The 100 Ah version is used in motorhomes, boats and off-grid systems where occasional full discharges are expected.

Reference BAT412110081

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

AGM Super Cycle 12V/100Ah (M6) - AGM battery for frequent deep discharges

AGM Super Cycle 12V/100Ah (M6) is an AGM battery designed for applications with frequent deep discharges. Improved electrochemistry makes it resistant to sulfation and plate softening even after repeated 100% discharges, with tests showing at least 300 full cycles. The 100 Ah version is used in motorhomes, boats and off-grid systems where occasional full discharges are expected.

Main features:

  • Voltage and capacity: 12 V, 100 Ah (C20)
  • Cycles at 100% DoD: 300 cycles
  • Partial discharge cycles: 700 at 60% DoD, 1,000 at 40% DoD
  • Cold cranking amps (CCA): 500 A
  • Recommended use: occasional 100% or frequent 60-80% DoD discharges
  • Dimensions and weight: 260 × 168 × 215 mm, 26 kg
The Victron AGM Super Cycle Battery is designed for applications that involve frequent deep discharges.
Thanks to improvements in battery electrochemistry, it resists sulfation and plate softening, even after repeated 100% depth of discharge (DoD) cycles.
Tests have shown that Super Cycle batteries can withstand at least 300 full 100% DoD cycles. This makes them a reliable choice for mobile, off-grid and marine applications where occasional full discharges or frequent partial discharges are expected.

Technical specifications

Nominal battery voltage12 V
Nominal battery voltage (class)12
Nominal battery capacity100 Ah
Capacity (C20)100 Ah
Capacity (C10)90 Ah
Capacity (C5)82 Ah
ChemistryLead-acid
TechnologyFlat plate AGM (Absorbent Glass Mat) with improved electrolyte
Seal typeSealed VLRA (Valve Regulated Lead Acid)
Cold cranking amps (CCA)500 A
Reserve capacity170 Ah
Cycle design life at 100 % DoD300 cycles
Cycle design life at 60 % DoD700 cycles
Cycle design life at 40 % DoD1000 cycles
Recommended absorption charge voltage14.2 … 14.6 V
Recommended float charge voltage13.5 … 13.8 V
Recommended storage charge voltage13.2 … 13.5 V
Battery terminalsM6 threaded inserts
Weight26 kg
Length260 mm
Width168 mm
Height215 mm

Data sheet

Reference
BAT412110081
EAN13
8719076039990
Brand
Victron Energy
Product type
Battery
Battery chemistry
AGM
Battery voltage
12 V
Nominal voltage (exact)
12 V
Nominal capacity
100 Ah
Capacity class
1-2.5 kWh
Nominal energy
1.2 kWh
Dimensions (H x W x D)
215 x 168 x 260 mm
Weight
26 kg

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
