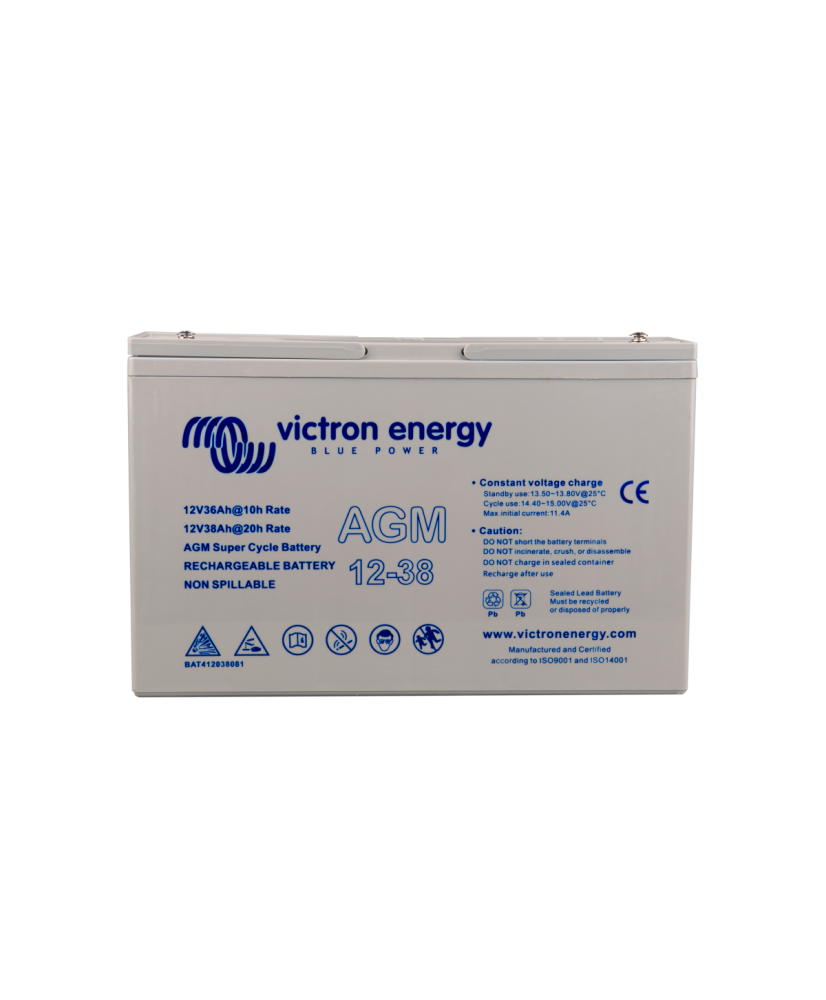

12V/38Ah AGM Super Cycle Battery (M5) Victron Energy
  • 12V/38Ah AGM Super Cycle Battery (M5) Victron Energy
  • 12V/38Ah AGM Super Cycle Battery (M5) Victron Energy
  • 12V/38Ah AGM Super Cycle Battery (M5) Victron Energy
  • 12V/38Ah AGM Super Cycle Battery (M5) Victron Energy

12V/38Ah AGM Super Cycle Battery (M5) Victron Energy

12 V
€139 Save €21
€118 Tax included

€98 Tax excluded

AGM Super Cycle 12V/38Ah (M5) is an AGM battery designed for applications with frequent deep discharges. Improved electrochemistry makes it resistant to sulfation and plate softening even after repeated 100% discharges, with tests showing at least 300 full cycles. With 38 Ah it suits small mobile systems, small boats and off-grid applications.

Reference BAT412038081

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

AGM Super Cycle 12V/38Ah (M5) - AGM battery for frequent deep discharges

AGM Super Cycle 12V/38Ah (M5) is an AGM battery designed for applications with frequent deep discharges. Improved electrochemistry makes it resistant to sulfation and plate softening even after repeated 100% discharges, with tests showing at least 300 full cycles. With 38 Ah it suits small mobile systems, small boats and off-grid applications.

Main features:

  • Voltage and capacity: 12 V, 38 Ah (C20)
  • Cycles at 100% DoD: 300 cycles
  • Partial discharge cycles: 700 at 60% DoD, 1,000 at 40% DoD
  • Recommended use: occasional 100% or frequent 60-80% DoD discharges
  • Terminals: M5 threaded inserts
  • Dimensions and weight: 267 × 77 × 175 mm, 9.5 kg
The Victron AGM Super Cycle Battery is designed for applications that involve frequent deep discharges.
Thanks to improvements in battery electrochemistry, it resists sulfation and plate softening, even after repeated 100% depth of discharge (DoD) cycles.
Tests have shown that Super Cycle batteries can withstand at least 300 full 100% DoD cycles. This makes them a reliable choice for mobile, off-grid and marine applications where occasional full discharges or frequent partial discharges are expected.

Technical specifications

Nominal battery voltage12 V
Nominal battery voltage (class)12
Nominal battery capacity38 Ah
Capacity (C20)38 Ah
Capacity (C10)36 Ah
Capacity (C5)34 Ah
ChemistryLead-acid
TechnologyFlat plate AGM (Absorbent Glass Mat) with improved electrolyte
Seal typeSealed VLRA (Valve Regulated Lead Acid)
Cycle design life at 100 % DoD300 cycles
Cycle design life at 60 % DoD700 cycles
Cycle design life at 40 % DoD1000 cycles
Recommended absorption charge voltage14.2 … 14.6 V
Recommended float charge voltage13.5 … 13.8 V
Recommended storage charge voltage13.2 … 13.5 V
Battery terminalsM5 threaded inserts
Weight9.5 kg
Length267 mm
Width77 mm
Height175 mm

Data sheet

Reference
BAT412038081
EAN13
8719076041818
Brand
Victron Energy
Product type
Battery
Battery chemistry
AGM
Battery voltage
12 V
Nominal voltage (exact)
12 V
Nominal capacity
38 Ah
Capacity class
0-1 kWh
Nominal energy
0.456 kWh
Dimensions (H x W x D)
175 x 77 x 267 mm
Weight
9.5 kg

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
