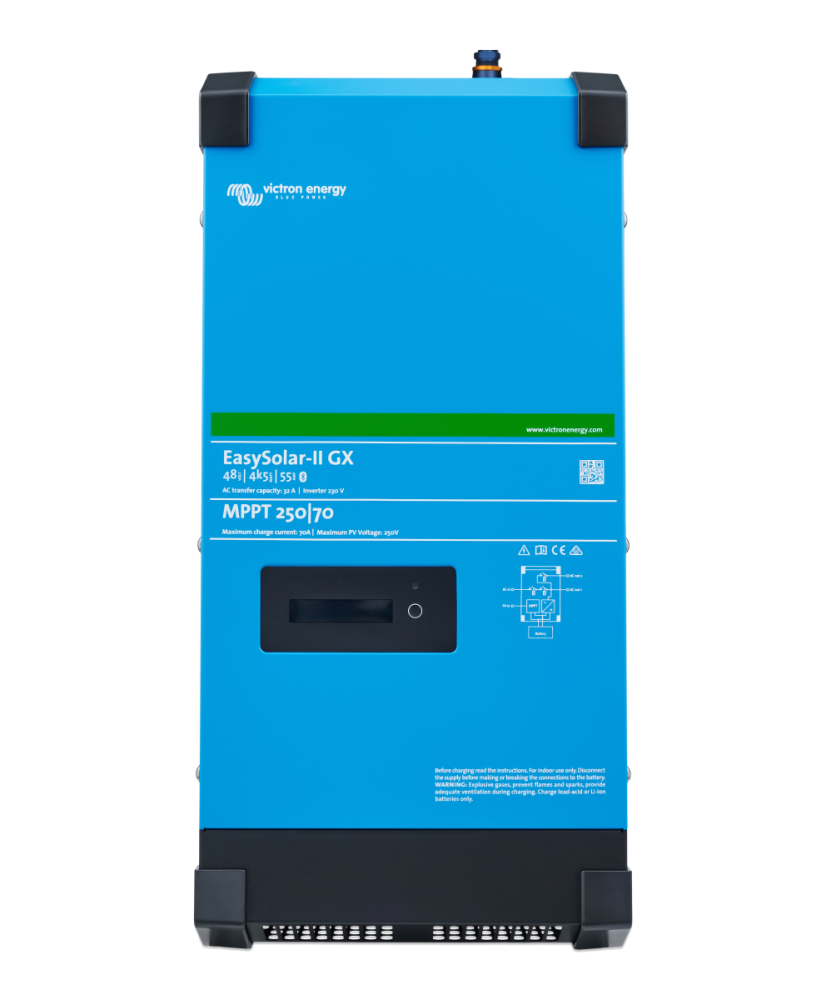

EasySolar-II 48/4k5/55-32 MPPT 250/70 GX Victron Energy
  • New


EasySolar-II 48/4k5/55-32 MPPT 250/70 GX Victron Energy

€1,333.00
Tax excluded

EasySolar-II 48/4k5/55-32 MPPT 250/70 GX is a system that combines an MPPT solar charge controller, an inverter/charger for 48V batteries and a GX control hub in one enclosure. It is easy to install with minimal wiring and is intended for self-consumption and home storage, with 4000 W continuous power and up to 4000 W of PV power.

: VICTRON ENERGY
Quantity

EasySolar-II 48/4k5/55-32 MPPT 250/70 GX - 48V all-in-one solar system

EasySolar-II 48/4k5/55-32 MPPT 250/70 GX is a system that combines an MPPT solar charge controller, an inverter/charger for 48V batteries and a GX control hub in one enclosure. It is easy to install with minimal wiring and is intended for self-consumption and home storage, with 4000 W continuous power and up to 4000 W of PV power.

Main features:

  • Battery voltage: 48 V (38-60 V)
  • Continuous power: 4000 W at 25 °C, 7000 W peak
  • Solar charger: MPPT 250/70-Tr, 250 V max. open-circuit, 70 A, 4000 W PV
  • Transfer switch: 32 A
  • Charge current: 55 A, adaptive 4-stage algorithm
  • Communication: VE.Direct, BMS-Can, WiFi, Ethernet

The EasySolar-II GX combines an MPPT Solar Charge Controller, an inverter/charger and control hub in one enclosure. The product is easy to install, with a minimum of wiring.

Technical specifications

Nominal battery voltage48 V
PowerControlYes
PowerAssistYes
Includes MPPTYes
Number of AC inputs1
Transfer switch current rating32 A
Maximum AC input current32 A
AUX AC output current32 A
DC input voltage range38 … 60 VDC
AC output voltage230 VAC
AC output frequency50 Hz
Continuous output power at 25 °C (W)4000 W
Continuous output power at 40 °C3700 W
Peak power7000 W
Maximum apparent feed-in power4000 W
Maximum efficiency95 %
Zero load power20 W
Zero load power in AES mode12 W
Zero load power in search mode7 W
AC input voltage range187 … 265 VAC
AC input frequency range45 … 65 Hz
Absorption charge voltage57.6 VDC
Float charge voltage55.2 VDC
Storage charge voltage52.8 VDC
Charge algorithmAdaptive, 4-stage
Maximum battery charge current55 A
Starter battery charge current50 A
Solar charge controller modelMPPT 250/70-Tr
Maximum solar charger output current70 A
Maximum PV power4000 W
Maximum PV open-circuit voltage250 V
Maximum solar charger efficiency99 %
Self-consumption20 mA
Absorption charge voltage (solar)57.6 VDC
Float charge voltage (solar)55.2 VDC
Auxiliary outputYes
Number of AC outputs2
External AC current sensor100A (optional)
Programmable relayAC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
ProtectionsOutput short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication portBMS-Can, Ethernet, WiFi, VE.Direct
Remote control terminalOn / Off
Programmable via computerYes
Operating temperature range-20 … 65 °C
Fan-assisted coolingYes
Maximum humidity95 %
Maximum altitude2000 m
AC connection terminalsScrew terminals 16 mm² (6 AWG)
Battery connection terminalsM8 bolts
PV connection terminalsM6 bolts
Remote terminal typeScrew terminal two pole
Relay terminalScrew terminal 3-pole
VE.Bus terminal typeTwo RJ45 terminals
MaterialSteel
ColourBlue (RAL 5012)
Protection categoryIP21
Weight27 kg
Height591 mm
Width275 mm
Depth254 mm
SafetyEN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
Emission and immunityEN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Anti-islanding standardSee our website
: PMP482457010
Out of Stock

Data sheet

Brand
Victron Energy
