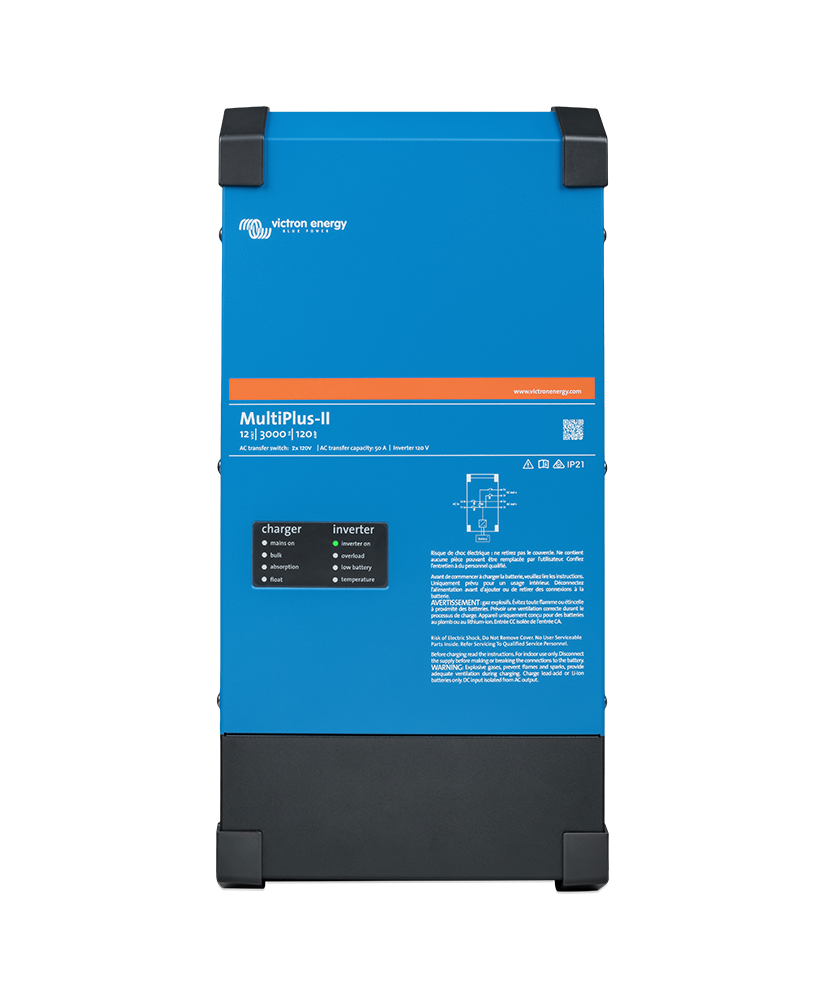

MultiPlus-II 12/4k/160-32 230V Victron Energy

Name: MultiPlus-II 12/4k/160-32 230V Victron Energy
Brand: VICTRON ENERGY
SKU: PMP122405010
Price: 1372 EUR
Availability: PreOrder

€1,372.00

Tax excluded

MultiPlus-II 12/4k/160-32 230V is a multifunctional inverter/charger with two AC outputs, suitable for marine, vehicle and off-grid systems as well as ESS installations. PowerControl prevents grid or generator overload, PowerAssist boosts power during peak demand, and during an outage it switches over in milliseconds. It charges 12V batteries at up to 160 A.

Brand : VICTRON ENERGY

MultiPlus-II 12/4k/160-32 230V - 12V inverter/charger with 2 AC outputs

Main features:

Battery voltage: 12 V (9.5-17 V)
Continuous power: 3400 W at 25 °C, 6000 W peak
Charge current: 160 A, adaptive 4-stage algorithm
Transfer switch: 32 A
Maximum efficiency: 93%
Second AC output: for loads that should not discharge the battery

The MultiPlus-II is a multifunctional inverter/charger with two AC outputs. Suitable for professional marine, yachting, vehicle, and land-based off-grid systems, it also provides the isolation and redundancy required for ESS setups. PowerControl allows the MultiPlus-II to prevent grid or generator overload, while PowerAssist boosts AC power during peak demand. In the event of an outage, the inverter switches over in milliseconds, keeping computers and sensitive electronics running without interruption. The battery charger combines speed with efficiency through a smart adaptive algorithm that extends battery life. Ready for expansion, the MultiPlus-II supports parallel and three-phase configurations when a system needs to scale.

Note: for a short period of time this product was called MultiGrid-II.

Technical specifications

Nominal battery voltage	12 V
PowerControl	Yes
PowerAssist	Yes
Parallel operation	Yes
Three-phase operation	Yes
Number of AC inputs	1
AC input voltage range (2)	187 … 265 VAC
Frequency selection	50Hz
Transfer switch current rating	32 A
Maximum AC input current	32 A
DC input voltage range	9.5 … 17 VDC
AC output voltage	230 VAC
AC output frequency	50 Hz
Short name	4k
Continuous output power at 25 °C (W)	3400 W
Continuous output power at 40 °C	3100 W
Continuous output power at 65 °C	2600 W
Peak power	6000 W
Maximum apparent feed-in power	3400 W
Maximum efficiency	93 %
Zero load power	18 W
Zero load power in AES mode	11 W
Zero load power in search mode	4 W
AC input voltage range	187 … 265 VAC
AC input frequency range	45 … 65 Hz
Absorption charge voltage	14.4 VDC
Float charge voltage	13.8 VDC
Storage charge voltage	13.2 VDC
Charge algorithm	Adaptive, 4-stage
Maximum battery charge current	160 A
Starter battery charge output	Yes
Starter battery charge current	4 A
Temperature sensor	Included
Auxiliary output	Yes
External AC current sensor	50A or 100A (optional)
Programmable relay	AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections	Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication port	VE.Bus
General-purpose communication port	Yes
Remote control terminal	On / Off
Programmable via computer	Yes
Operating temperature range	-40 … 65 °C
Fan-assisted cooling	Yes
Maximum humidity	95 %
Maximum altitude	4000 m
AC connection terminals	Screw terminals 13 mm² (6 AWG)
Battery connection terminals	M8 bolts (two for positive and two for negative connection)
Remote terminal type	Screw terminal two pole
Relay terminal	Screw terminal 3-pole
VE.Bus terminal type	Two RJ45 terminals
Material	Steel
Colour	Blue (RAL 5012)
Protection category	IP21
Weight	22 kg
Height	576 mm
Width	276 mm
Depth	164 mm
Safety	EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
Emission and immunity	EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Anti-islanding standard	Please consult the certificates on our website
UPS standard	Please consult the certificates on our website
