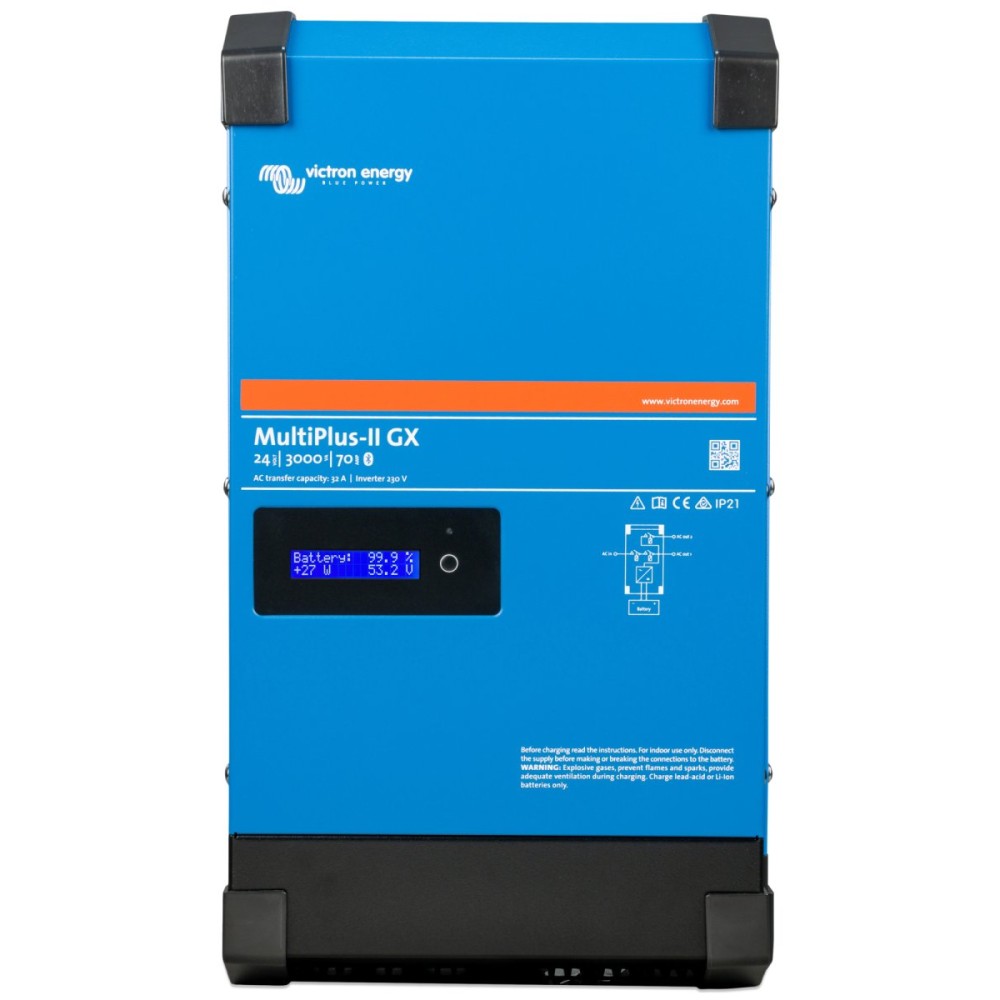

MultiPlus-II 24/3000/70-32 230V GX Victron Energy
  • MultiPlus-II 24/3000/70-32 230V GX Victron Energy
  • MultiPlus-II 24/3000/70-32 230V GX Victron Energy
  • MultiPlus-II 24/3000/70-32 230V GX Victron Energy
  • MultiPlus-II 24/3000/70-32 230V GX Victron Energy

Inverter/charger Victron Energy MultiPlus-II 24/3000/70-32 230V GX, 24 V, 3000 VA

€1,164 Save €175
€989 Tax included

€824 Tax excluded

MultiPlus-II 24/3000/70-32 230V GX is an inverter/charger with a built-in GX device, which communicates with solar chargers, batteries and other equipment to control grid-connected, off-grid or remote installations. It can operate in parallel or in three-phase, and functions such as uninterruptible power supply and consumption limiting are controlled from your phone, with remote monitoring.

Reference PMP242306000

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

MultiPlus-II 24/3000/70-32 230V GX - 24 V inverter/charger with built-in GX

MultiPlus-II 24/3000/70-32 230V GX is an inverter/charger with a built-in GX device, which communicates with solar chargers, batteries and other equipment to control grid-connected, off-grid or remote installations. It can operate in parallel or in three-phase, and functions such as uninterruptible power supply and consumption limiting are controlled from your phone, with remote monitoring.

Key features:

  • Battery voltage: 24 V (19-33 V)
  • Continuous power: 2400 W / 3000 VA at 25 °C, peak 5500 W
  • Charging current: 70 A, adaptive 4-stage algorithm
  • Transfer relay: 32 A
  • Communication: VE.Bus, VE.Can, VE.Direct, BMS-Can, Wi-Fi, Ethernet
  • Built-in display: 2 x 16 characters, battery, inverter and MPPT data

An inverter/charger with built-in grid-connection capability for GX devices, the MultiPlus-II GX communicates with a solar charger, batteries and other devices to control grid-connected, stand-alone or remotely powered installations. As it can operate in parallel for more power or faster battery charging, the MultiPlus-II GX can also be configured for three-phase supply. It includes advanced features such as uninterrupted power supply, setting load limits and supplementing a limited grid supply with battery power - all of which can be controlled directly from your phone or smart device. Remote monitoring is also possible.

Technical specifications

Nominal battery voltage24 V
PowerControlYes
PowerAssistYes
Parallel operationYes
Three-phase operationYes
Number of AC inputs1
Transfer switch rated current32 A
Maximum AC input current32 A
DC input voltage range19 … 33 VDC
AC output voltage230 VAC
AC output frequency50 Hz
Continuous output power at 25 °C (VA)3000 VA
Continuous output power at 25 °C (W)2400 W
Continuous output power at 40 °C2200 W
Continuous output power at 65 °C1700 W
Peak power5500 W
Maximum apparent power fed in3000 VA
Maximum efficiency94 %
No-load consumption13 W
No-load consumption in AES mode9 W
No-load consumption in search mode3 W
AC input voltage range187 … 265 VAC
AC input frequency range45 … 65 Hz
Charge voltage in absorption28.8 VDC
Float charge voltage27.6 VDC
Storage mode charge voltage26.4 VDC
Charging algorithmAdaptive, 4-stage
Maximum battery charge current70 A
Temperature sensorIncluded
Number of AC outputs2
Auxiliary outputYes
External AC current sensor50 A or 100 A (optional)
Programmable relayAC ratings: 230 V / 4 A, DC ratings: 4 A up to 35 VDC and 1 A up to 60 VDC
ProtectionsOutput short circuit, Overload, High battery voltage, Low battery voltage, Over-temperature, AC voltage at inverter output, Excessive DC ripple
Communication portVE.Bus, VE.Can, VE.Direct, BMS-Can, Wi-Fi, Ethernet
General-purpose communication portYes
Remote control terminalOn / Off
Programmable by computerYes
Operating temperature range-40 … 65 °C
Fan-assisted coolingYes
Maximum humidity95 %
Maximum altitude2000 m
AC connection terminalsScrew terminals 13 mm² (6 AWG)
Battery connection terminalsM8 bolts
Remote terminal typeTwo-pole screw terminal
Relay terminalThree-pole screw terminal
VE.Bus terminal typeTwo RJ45 terminals
MaterialSteel
ColourBlue (RAL 5012)
Ingress protectionIP22
Weight20 kg
Height506 mm
Width275 mm
Depth147 mm
SafetyEN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
Emission and immunityEN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Anti-islanding standardPlease refer to the certificates on our website
UPS standardIEC 62040-1

Data sheet

Reference
PMP242306000
EAN13
8719076051695
Brand
Victron Energy
Product type
Inverter/charger
Inverter type
Inverter/charger
Phases
Single-phase
Power class
2-3.5 kW
Continuous output power (VA, 25 °C)
3000 VA
Continuous output power (W, 25 °C)
2400 W
Peak power
5500 W
Maximum efficiency
94 %
Zero-load power
13 W
Output waveform
Pure sine wave
Battery voltage
24 V
DC input voltage range
19-33 V
Max. charge current
70 A
AC output voltage
230 V
Output frequency
50 Hz
AC input voltage range
187-265 V
Max. AC input current
32 A
Parallel operation
Yes
Communication interfaces
BMS-Can
Ethernet
VE.Bus
VE.Can
VE.Direct
Wi-Fi
Programmable relay
Yes
Protections
Output short-circuit, overload, overtemperature, high battery voltage, low battery voltage, excessive DC ripple, AC voltage on output
Dimensions (H x W x D)
506 x 275 x 147 mm
Weight
20 kg
Ingress protection (IP)
IP22
Operating temperature
-40 ... 65 °C
Max. relative humidity
95 %
Colour
Blue
Material
Steel
Standards and compliance
EN-IEC 60335-1, EN 55014-1, EN 55014-2, EN-IEC 61000-3-2

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
