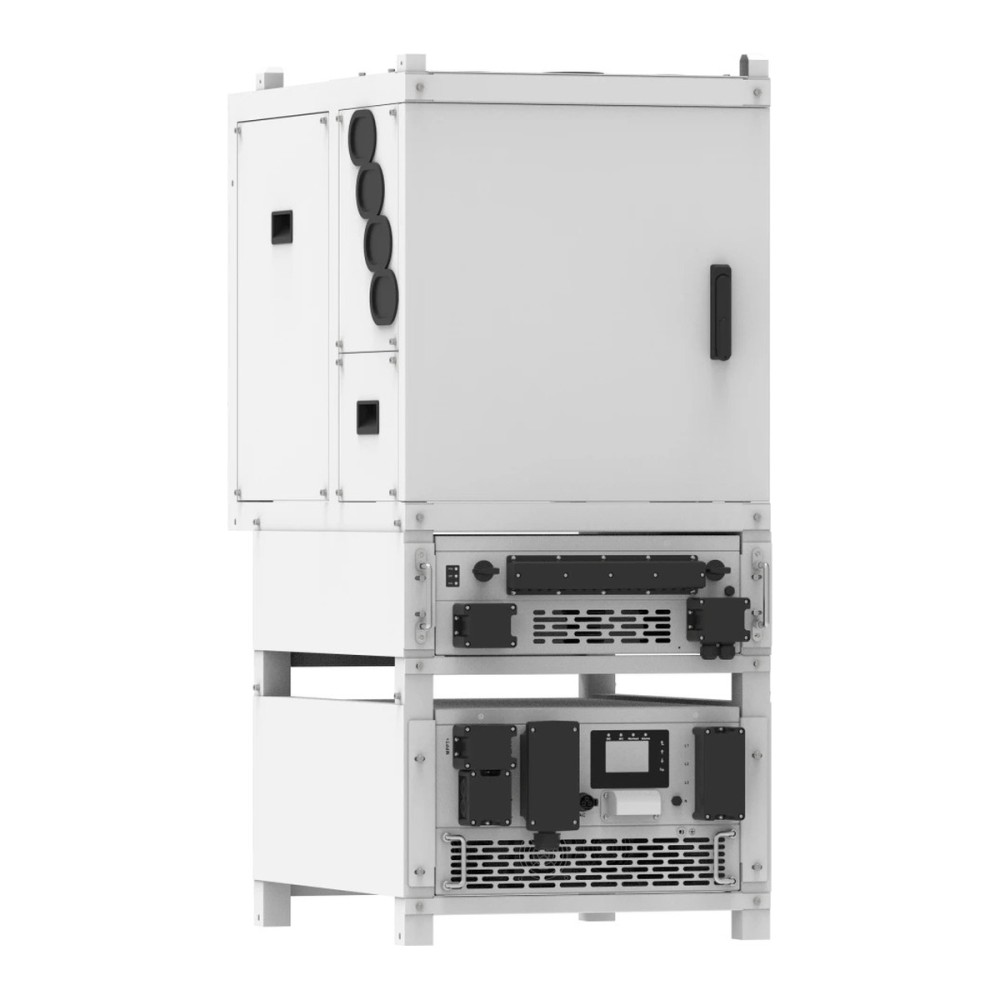

125 kW Deye PCS inverter, three-phase, HV, SUN-125K-PCS01HP3

125 kW Deye PCS inverter, three-phase, HV, SUN-125K-PCS01HP3

€6,156 Tax included

€5,130 Tax excluded

SUN-125K-PCS01HP3 is a 125 kW three-phase PCS module with a 630-1000 V lithium-ion battery input, a maximum charge and discharge current of 200 A, a maximum efficiency of 98.5 % and an IP65 protection rating. It supports a peak power of 200 % of the rated power for 15 s and has an integrated EMS. For commercial and industrial systems up to 2.5 MW.

Reference SUN-125K-PCS01HP3

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

SUN-125K-PCS01HP3 - Three-phase PCS inverter 125 kW for HV batteries

SUN-125K-PCS01HP3 is a 125 kW three-phase PCS module for Deye commercial and industrial energy storage systems, with an input for high-voltage lithium-ion batteries (630-1000 V). It is combined with the MPPT module, the STS module and the BOS-B Pro-A3 system, and several units can form a system of up to 2.5 MW.

Main features:

  • Rated power: 125 kW, three-phase
  • Battery voltage range: 630-1000 V
  • Charge/discharge current: 200 A
  • Maximum efficiency: 98.5 %
  • Peak power: 200 % of rated, 15 s
  • Parallel operation: up to 20 units
  • Protection rating: IP65

The AC output is three-phase (3L+N+PE, 220/380 V or 230/400 V), with a rated current of 189.4/181.2 A and a maximum current of 189.4/181.2 A. The European efficiency is 97.8 %. The unit has no PV input: PV power is added through the SUN-MPPT-L01-EU-AM8 module.

The module integrates zero-export and time-of-use charging and discharging, with no need for an additional EMS. It communicates over Wi-Fi, RS485, CAN and meter, and has an LCD display. One STS unit can connect four 125 kW PCS modules, and five STS units in parallel can support twenty 125 kW PCS modules, forming a 2.5 MW system.

One PCS can support up to 16 battery racks in parallel. It operates from -40 to 60 °C, with derating above 45 °C, up to an altitude of 4000 m, and has an IP65 enclosure (PCS module), with a noise level below 75 dB.

Technical specifications

Product typeInverter
Inverter typeInverter/charger
PhasesThree-phase
Battery voltageHV (high voltage)
Power class20+ kW
Continuous output power (W, 25 °C)125000 W
Peak power250000 W, 15 s
Maximum efficiency98,5 %
Max. charge current200 A
DC input voltage range630-1000 V
Max. AC input current189,4 A
AC output voltage220/380 V, 230/400 V
Output frequency50/60 Hz
Parallel operationYes
Communication interfacesWi-Fi, RS485, CAN-bus
Ingress protection (IP)IP65
Operating temperature-40 ... 60 °C
Max. relative humidity95 %
ProtectionsAC overcurrent, AC overvoltage, AC short circuit, thermal protection, anti-islanding, insulation impedance, residual current
Standards and complianceIEC/EN 62477-1
Dimensions (H x W x D)310 x 543 x 775 mm
Weight81,86 kg

Data sheet

Reference
SUN-125K-PCS01HP3
MPN
SUN-125K-PCS01HP3
Product type
Inverter
Inverter type
Inverter/charger
Phases
Three-phase
Power class
20+ kW
Continuous output power (W, 25 °C)
125000 W
Peak power
250000 W, 15 s
Maximum efficiency
98,5 %
Battery voltage
HV (high voltage)
DC input voltage range
630-1000 V
Max. charge current
200 A
AC output voltage
220/380 V, 230/400 V
Output frequency
50/60 Hz
Max. AC input current
189,4 A
Parallel operation
Yes
Communication interfaces
CAN-bus
RS485
Wi-Fi
Protections
AC overcurrent, AC overvoltage, AC short circuit, thermal protection, anti-islanding, insulation impedance, residual current
Dimensions (H x W x D)
310 x 543 x 775 mm
Weight
81,86 kg
Ingress protection (IP)
IP65
Operating temperature
-40 ... 60 °C
Max. relative humidity
95 %
Standards and compliance
IEC/EN 62477-1

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
