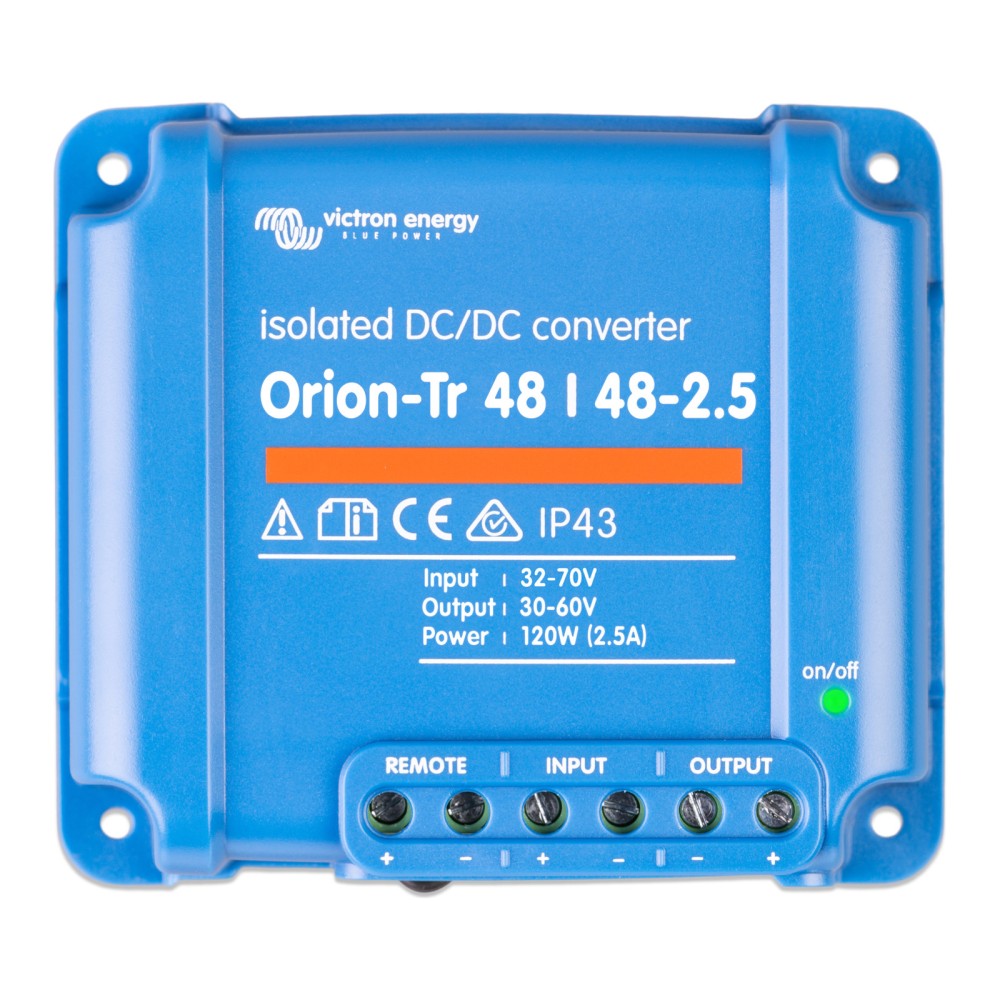

Victron Energy Orion-Tr 48/48-2.5A (120W) converter

Isolated DC-DC converter Victron Energy Orion-Tr 48/48-2.5A (120 W)

Name: Isolated DC-DC converter Victron Energy Orion-Tr 48/48-2.5A (120 W)
Brand: Victron Energy
SKU: ORI484810110
Price: 68.00 EUR
Availability: InStock

€81 Save €13

€68 Tax included

€57 Tax excluded

Victron's Orion-48/48-2.5A (120W) galvanically isolated DC-DC converters are highly efficient devices, reaching up to 89% efficiency. They are designed to transform direct current into another direct current by changing the amplitude of the voltage.

Reference ORI484810110

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Victron's Orion-Tr 48/48 models are fitted with screw connection terminals and an aluminum housing, providing IP43 protection.

Technical Specifications

Battery voltage: 48V
Input voltage (V): 32-70
Output voltage (V): 40-60
Maximum charging current: 2.5A
Programmable DC output: Yes
Operating temperature: -20 to +55°C
Efficiency: 89%
Size (mm): 100 x 113 x 47
Weight (kg): 0.42

Data sheet

Reference: ORI484810110
Product type: DC-DC converter
Maximum efficiency: 89 %
DC input voltage range: 32-70 V
Input voltage: 48 V
Output voltage: 48 V
DC output voltage range: 40-60 V
Rated output current: 2.5 A
Charge current class: 0-10 A
Galvanic isolation: Yes (isolated)
Bluetooth (app): No
Protections: Output short-circuit, overtemperature
Dimensions (H x W x D): 100 x 113 x 47 mm
Weight: 0.42 kg
IP rating class: IP43
Ingress protection (IP): IP43 (electronics)
Operating temperature: -20 ... 55 °C
Max. relative humidity: 95 %
Colour: Blue
Material: Aluminium
Standards and compliance: EN 60950, ECE R10-5, EN 55014-1, EN-IEC 61000-6-3

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the manufacturer’s datasheet.
