€2,176 Tax excluded

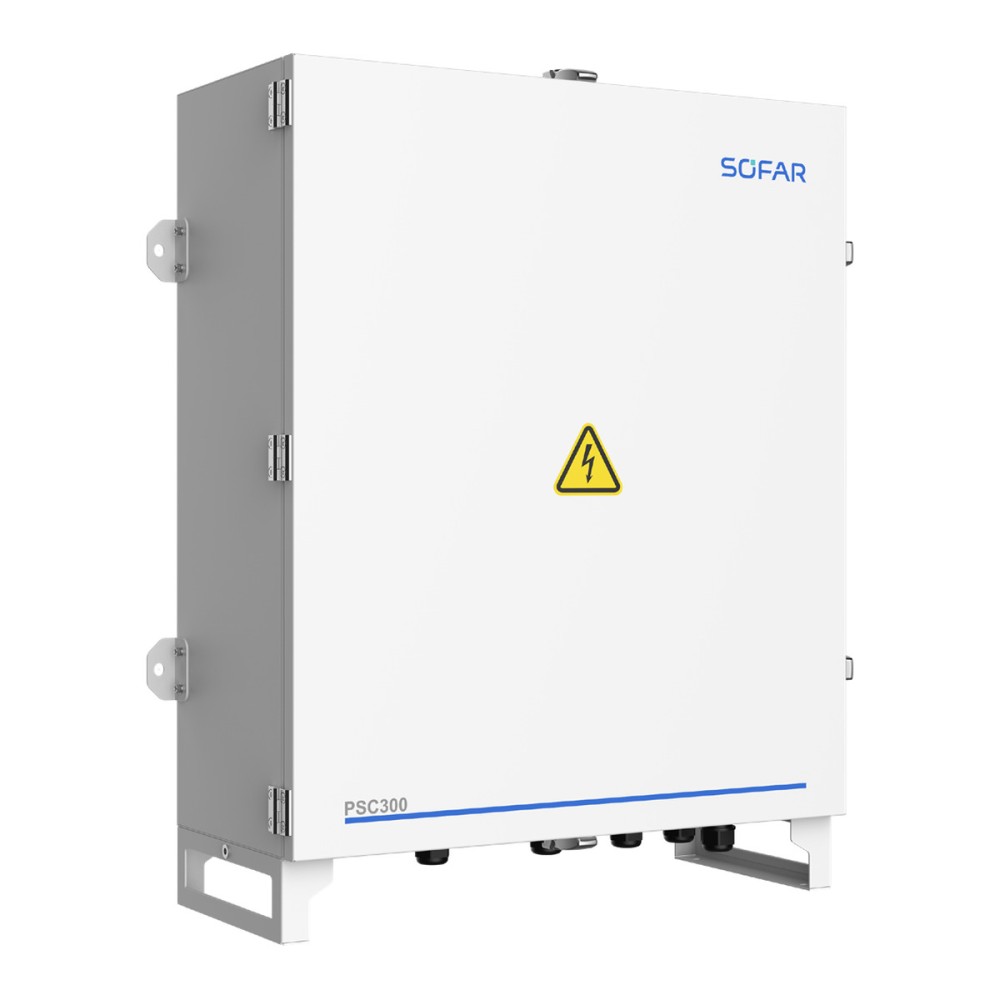

PSC300A is a SOFAR communication box in an IP66 enclosure, with 2 anti-PID modules and AC type II surge protection. It connects up to 30 inverters with the anti-PID function (60 without it) over PBUS or RS485 and communicates over Ethernet or optical fibre. It weighs 34 kg and measures 660 x 776 x 265 mm.
PSC300A is a SOFAR communication box for PV plants, in an outdoor IP66 enclosure. It collects inverter data over PBUS or RS485 and sends it to the monitoring system over Ethernet or optical fibre; it has 2 anti-PID modules and AC type II surge protection.
The box integrates a main power-line communication module (CCO), an industrial ring switch for the optical fibre ring, an RS485 communication module, a CH1000 Control Hub, the PID modules and a surge protector. It collects data from inverters, the transformer, environment monitors and meters over PBUS or RS485 and sends it to the plant monitoring station over a fibre-optic ring; supported protocols are MODBUS-TCP, IEC 103, IEC 104 and IEC 61850.
The anti-PID function compensates the PV modules of the connected inverters at the same time, and the earthing cable of the PID module output must be connected to the transformer earth bar with a reliable earth. The box supports local and remote firmware upgrades, active and reactive power dispatch and local web configuration. It operates from -30 to 60 °C and up to 4000 m altitude.
| Manufacturer | SOFARSOLAR |
|---|---|
| Model | PSC300A |
| Auxiliary power input | 100 ... 240 V AC, 50 ... 60 Hz |
| Standby power consumption | under 50 W |
| Communication method | ETH, RS485, PBUS, SFP |
| Maximum inverters with anti-PID function | 30 |
| Maximum inverters without anti-PID function | 60 |
| Number of PID modules | 2 |
| PBUS communication | 2 |
| RS485 communication | 4 |
| Fibre-optic port | 2 |
| Maximum transmission distance RS485 / PBUS | 1000 m / 1000 m |
| Fibre-optic | maximum distance 20 km, LC interface |
| Protocols supported | MODBUS-TCP, IEC 103, IEC 104, IEC 61850 |
| Operating temperature | -30 ... 60 °C |
| Storage and transport temperature | -40 ... 85 °C |
| Operating altitude | 4000 m |
| Protection level | IP66 |
| Relative humidity | maximum 95 %, non-condensing |
| Surge protection | AC type II |
| Cooling method | natural cooling |
| Dimensions (width x height x depth) | 660 x 776 x 265 mm |
| Weight | 34 kg |
| Installation mode | wall mounting or flat mounting |
| Certificates | IEC 62109-1/2, IEC 61000-6-2/4, IEC 60529 |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
