  • New

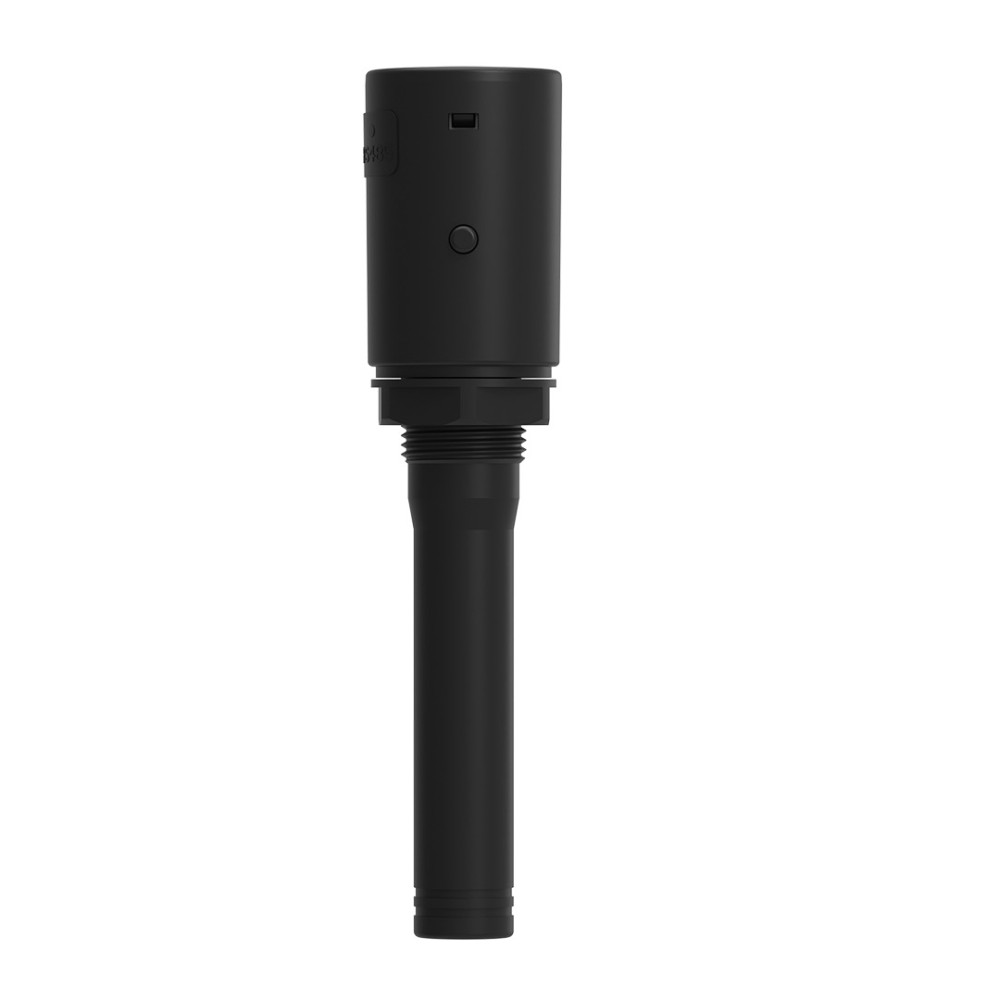

Deye LoRa transmitter for hybrid inverters, SUN-SMART-TX01

Deye LoRa transmitter for hybrid inverters, SUN-SMART-TX01

€86 Tax included

€72 Tax excluded

SUN-SMART-TX01 is a Deye LoRa transmitter, compatible with all Deye hybrid inverters, that supports up to 10 smart plugs or switches, 2 CTs and 1 EV charger. It has a communication range of about 200 m without obstacles, a 5 V DC supply and IP20 protection (IP65 after installation).

Reference SUN-SMART-TX01

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

SUN-SMART-TX01 - LoRa transmitter for Deye hybrid inverters

SUN-SMART-TX01 is a Deye transmitter with LoRa communication, compatible with all Deye hybrid inverters. It provides the wireless link between the inverter and the smart devices in the system and supports up to 10 smart plugs or switches, 2 CTs and 1 EV charger.

Main features:

  • Compatibility: All Deye hybrid inverters
  • Communication: LoRa, about 200 m without obstacles
  • Supported devices: 10 plugs or switches, 2 CTs, 1 EV charger
  • Supply: 5 V DC
  • Frequency: 863-870 MHz
  • Protection degree: IP20 (IP65 after installation)

LoRa communication offers low latency and long range, and the system can also work offline. Installation is simple and pairing with Deye hybrid inverters is quick.

The antenna is built in, with a gain of 0.56 dBi. The device operates from -40 to 60 °C, at 0-100% humidity and up to 4000 m altitude, and complies with IEC/EN 62368-1.

Technical specifications

Input voltageDC 5 V
Communication typeLoRa
Communication distanceAbout 200 m (barrier free)
Operating temperature range-40 ... 60 °C
Permissible ambient humidity0-100%
Ingress protection (IP) ratingIP20 (IP65 after installation)
Allowable altitudeMax. 4000 m
Product size (width x height x depth)137.8 x 31.3 x 31.3 mm
Weight45.8 g
StandardIEC/EN 62368-1
LoRa frequency range863-870 MHz
AntennaBuilt-in, gain 0.56 dBi
Supported devices10 smart plugs or switches, 2 CTs, 1 EV charger

Data sheet

Reference
SUN-SMART-TX01
MPN
SUN-SMART-TX01
Product type
Communication (LTE, Wi-Fi, antennas)
Communication interfaces
LoRa
Dimensions (H x W x D)
31,3 x 137,8 x 31,3 mm
Weight
45,8 g
Ingress protection (IP)
IP20 (IP65 after installation)
Operating temperature
-40 ... 60 °C

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.

Compatibility

Compatibility is calculated automatically from the manufacturers’ technical data and is for information only. For complex systems, we recommend having the configuration checked by a consultant before ordering. Details in the Terms and conditions
