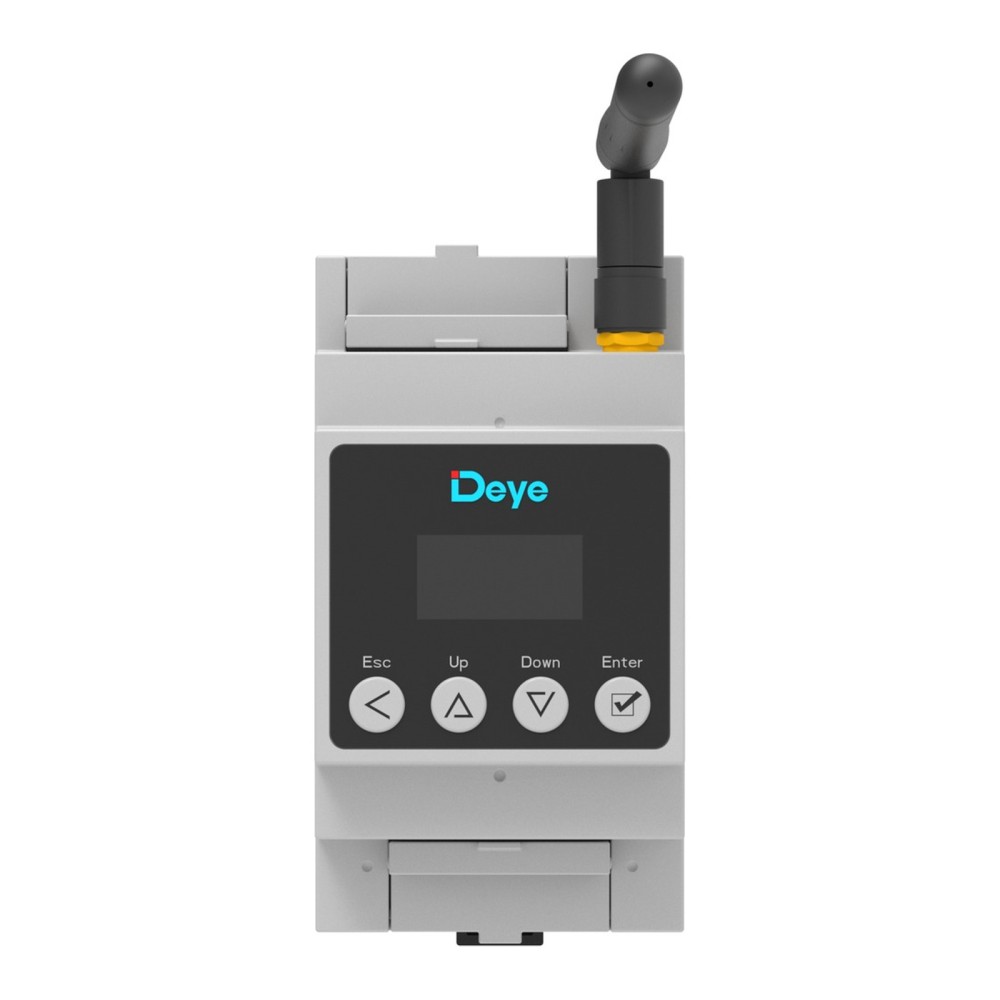

Deye wireless CT for measurement, LoRa, RS485, SUN-SMART-CT01

Deye wireless CT for measurement, LoRa, RS485, SUN-SMART-CT01

€155 Tax included

€129 Tax excluded

SUN-SMART-CT01 is a Deye wireless CT for measurement in single-phase and three-phase systems, with a 50 mA secondary current and an operating voltage of 85-300 V AC (L-N). It shows voltage, current, active and reactive power, frequency, power factor and energy on the LCD, communicates over LoRa or RS485 and mounts on a DIN rail.

Reference SUN-SMART-CT01

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

SUN-SMART-CT01 - Wireless CT for energy measurement, single-phase and three-phase

SUN-SMART-CT01 is a Deye wireless CT device for measurement, usable in single-phase (L1/N) and three-phase (L1/L2/L3/N) systems. It communicates over LoRa or RS485, has an LCD and mounts on a DIN rail.

Main features:

  • Connection type: Single-phase L1/N, three-phase L1/L2/L3/N
  • CT secondary current: 50 mA
  • Operating voltage: 85-300 V AC (L-N)
  • Communication: LoRa and RS485
  • Display: LCD, 7 measured values
  • Mounting: DIN rail, IP20

The device shows voltage, current, active power, reactive power, frequency, power factor and energy. The stated accuracy is ±0.1 V for voltage, ±0.01 A for current, ±0.01 Hz for frequency and ±1 W for power.

Self-consumption is at most 2 W and the AC voltage withstand is 4 kV for 1 minute. The LoRa communication distance is about 200 m without obstacles. It operates from -40 to 60 °C and complies with IEC/EN 61010-1.

Technical specifications

Connection typeL1/N (single phase), L1/L2/L3/N (three phase)
CT secondary current50 mA
Operation voltage85-300 V AC (L-N)
Rated frequency and range50 Hz (45-55 Hz) / 60 Hz (55-65 Hz)
Self consumption powerMax. 2 W
AC voltage withstand4 kV / 1 min
Accuracy, voltage±0.1 V
Accuracy, current±0.01 A
Accuracy, frequency±0.01 Hz
Accuracy, power±1 W
Communication interfaceLoRa, RS485
LoRa communication distanceAbout 200 m (barrier free)
DisplayLCD
Display dataVoltage, current, active power, reactive power, frequency, power factor, energy
Operation temperature-40 ... 60 °C
Operation humidity0-75%
Ingress protection (IP) ratingIP20
AltitudeMax. 4000 m
MountingDIN-rail mounting
Size53 x 96 x 64 mm
Weight0.15 kg
Certification standardsIEC/EN 61010-1

Data sheet

Reference
SUN-SMART-CT01
MPN
SUN-SMART-CT01
Product type
Sensors and meters
Communication interfaces
LoRa
RS485
Dimensions (H x W x D)
96 x 53 x 64 mm
Weight
0,15 kg
Ingress protection (IP)
IP20
Operating temperature
-40 ... 60 °C

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
