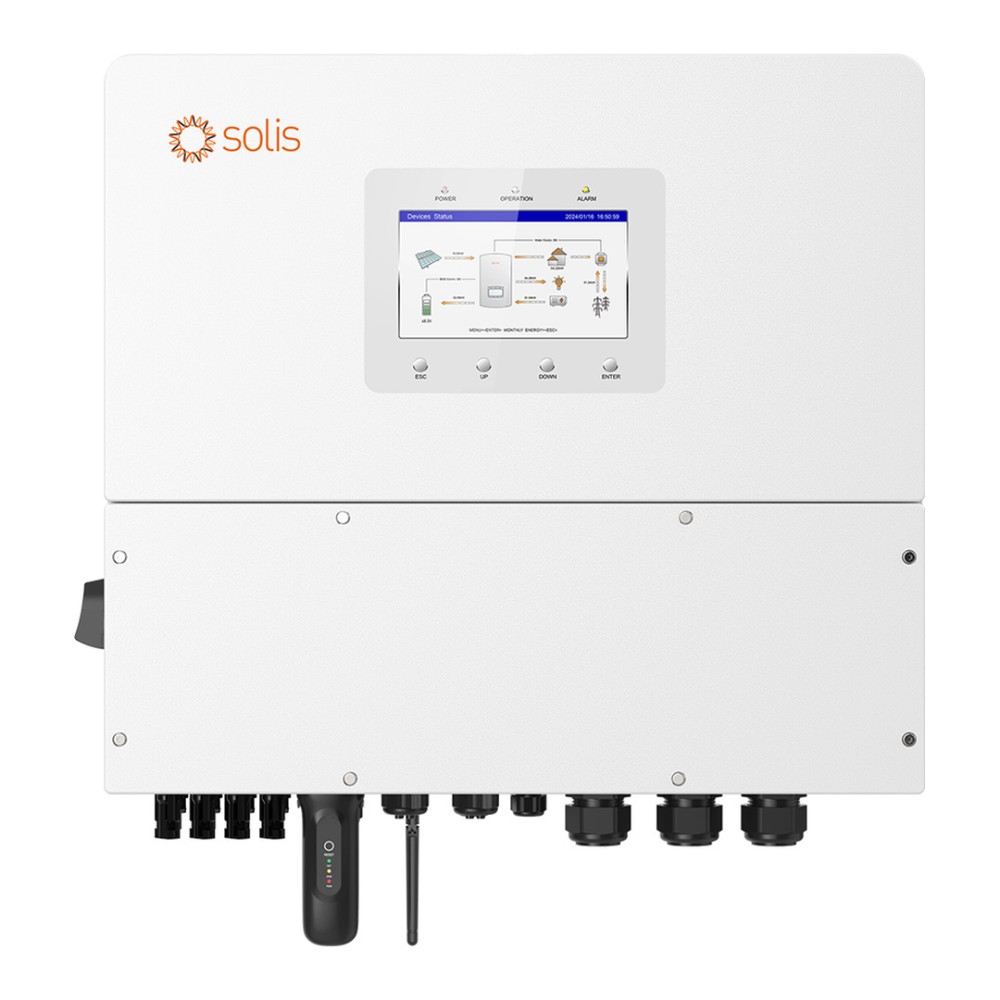

12 kW Solis hybrid inverter, three-phase, HV, S6-EH3P12K-H
  • 12 kW Solis hybrid inverter, three-phase, HV, S6-EH3P12K-H
  • 12 kW Solis hybrid inverter, three-phase, HV, S6-EH3P12K-H
  • 12 kW Solis hybrid inverter, three-phase, HV, S6-EH3P12K-H
  • 12 kW Solis hybrid inverter, three-phase, HV, S6-EH3P12K-H

12 kW Solis hybrid inverter, three-phase, HV, S6-EH3P12K-H

€2,209 Tax included

€1,841 Tax excluded

S6-EH3P12K-H is a 12 kW three-phase hybrid inverter for high-voltage lithium-ion batteries (120-800 V), with 4 MPPT (200-850 V), a maximum charge and discharge current of 50 A and a maximum efficiency of 97.7%. It has IP66 protection, a 7-inch LCD and CAN, RS485 and Ethernet communication, and parallel operation allows up to 6 units.

Reference S6-EH3P12K-H

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

S6-EH3P12K-H - Three-phase hybrid inverter 12 kW for HV batteries

S6-EH3P12K-H is a 12 kW three-phase hybrid inverter for high-voltage lithium-ion batteries (120-800 V), with 4 MPPT inputs, a 7-inch LCD and Bluetooth app configuration. It combines solar conversion, battery charging and load supply in one unit and can run in parallel, up to 6 units, in grid-connected or off-grid systems.

Main features:

  • AC rated power: 12000 W
  • HV battery: 120-800 V, lithium-ion, max. current 50 A
  • PV input: 4 MPPT, 200-850 V, maximum 19200 W
  • Maximum efficiency: 97.7%
  • Communication: CAN, RS485, Ethernet, Bluetooth
  • Protection and cooling: IP66, intelligent cooling
  • Parallel operation: Up to 6 units

The inverter connects to high-voltage lithium-ion batteries in the 120-800 V range, with a single battery port, communicates with the battery over CAN or RS485 and is compatible with the HV batteries of the brands in the manufacturer compatibility list, for example BYD, Dyness or Pylontech. Up to 19200 W of PV power can be used, on 4 MPPT inputs with one string each (20 A maximum and 30 A short-circuit current per input), with a maximum voltage of 1000 V and a start-up voltage of 160 V.

The three-phase output accepts unbalanced loads, with up to 40% of the rated power on each phase, and the switchover from grid to backup supply takes less than 10 ms. The inverter can be AC-coupled to an existing PV installation, and a generator connects to the dedicated port, with a maximum input power of 12 kW.

Up to 6 units of the same model can be connected in parallel, and remote monitoring and control are done through the SolisCloud platform. The package includes an Eastron meter with 3 current transformers (CT) and a data logging stick. The IP66 enclosure operates from -25 °C to +60 °C and at altitudes up to 2000 m.

Technical specifications

Inverter typeThree-phase hybrid inverter, for high-voltage (HV) batteries
Battery typeLi-ion
Battery voltage range120-800 V
Max. charge/discharge current50 A
Number of battery ports / BMS ports1 / 1
Battery communicationCAN / RS485
Max. usable PV input power19200 W
Max. input voltage1000 V
Rated voltage600 V
Start-up voltage160 V
MPPT voltage range200-850 V
Max. input current4 x 20 A
Max. short-circuit current4 x 30 A
MPPT number / max. number of strings4/4
Rated output power12000 W
Max. apparent output power12000 VA
Rated grid voltage3/N/PE, 220/380 V, 230/400 V
Rated grid frequency50 Hz / 60 Hz
Rated grid output current18.2 A / 17.3 A
Power factor> 0.99 (0.8 leading - 0.8 lagging)
THDi< 3%
Max. input power (grid side)18 kW
Input voltage range (grid side)320-460 V
Max. input current (grid side)27.3 A / 26.0 A
Rated output power (back-up)12000 W
Max. apparent output power (back-up)2 x rated power, 10 s
Back-up switch time< 10 ms
Rated output current (back-up)18.2 A / 17.3 A
THDv (linear load)< 3%
Generator max. input power12 kW
Generator rated input current18.2 A / 17.3 A
Max. power per phase40% of rated power
Max. efficiency97.7%
EU efficiency97.5%
BAT charged by PV max. efficiency98.5%
BAT charged/discharged to AC max. efficiency97.2%
MPPT efficiency99.9%
Integrated protectionsAnti-islanding protection, output overcurrent protection, insulation resistance monitoring, residual current detection, short-circuit protection, integrated AFCI 2.0 (optional), integrated DC switch, DC reverse-polarity protection, PV overvoltage protection, battery reverse protection
Dimensions (W x H x D)563 x 546 x 250 mm
Weight35.2 kg
Inverter topologyTransformerless
Self-consumption< 25 W
Operating temperature range-25 ... +60 °C
Relative humidity0-100%
Ingress protectionIP66
Noise emission (typical)< 65 dB(A)
Cooling conceptSmart cooling
Max. operation altitude2000 m
Grid connection and safety / EMC standardsEN 50549-1, VDE 4105, CEI 0-21, CEI 0-16, NC-RFG TypeB, NRS 097-2-1 ED 2.1; IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3, IEC 61000-2
PV connectionMC4 connector
Battery connectionOT terminal
AC connectionOT terminal
Display7.0" LCD display & Bluetooth + APP
Communication interfaceCAN, RS485, Ethernet, optional: Wi-Fi, Cellular, LAN

Data sheet

Reference
S6-EH3P12K-H
Product type
Inverter
Inverter type
Hybrid (built-in MPPT)
Phases
Three-phase
Power class
10-20 kW
Continuous output power (VA, 25 °C)
12000 VA
Continuous output power (W, 25 °C)
12000 W
Maximum efficiency
97.7 %
Zero-load power
under 25 W
Battery voltage
HV (high voltage)
DC input voltage range
120-800 V
Max. charge current
50 A
Max. PV input voltage
1000 V
Max. PV short-circuit current
4 x 30 A
Number of MPPT trackers
4
MPPT voltage range
200-850 V
AC output voltage
220/380 V, 230/400 V
Output frequency
50/60 Hz
AC input voltage range
320-460 V
Max. AC input current
27.3 A
Parallel operation
Yes
Communication interfaces
Bluetooth
CAN-bus
Ethernet
RS485
Protections
Anti-islanding protection, output overcurrent protection, insulation resistance monitoring, residual current detection, short-circuit protection, integrated AFCI 2.0 (optional), integrated DC switch, DC reverse-polarity protection
Dimensions (H x W x D)
546 x 563 x 250 mm
Weight
35.2 kg
Ingress protection (IP)
IP66
Operating temperature
-25 ... 60 °C
Max. relative humidity
100 %
Standards and compliance
EN 50549-1, VDE 4105, CEI 0-21, CEI 0-16, NC-RFG TypeB, NRS 097-2-1 ED 2.1; IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3, IEC 61000-2

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
