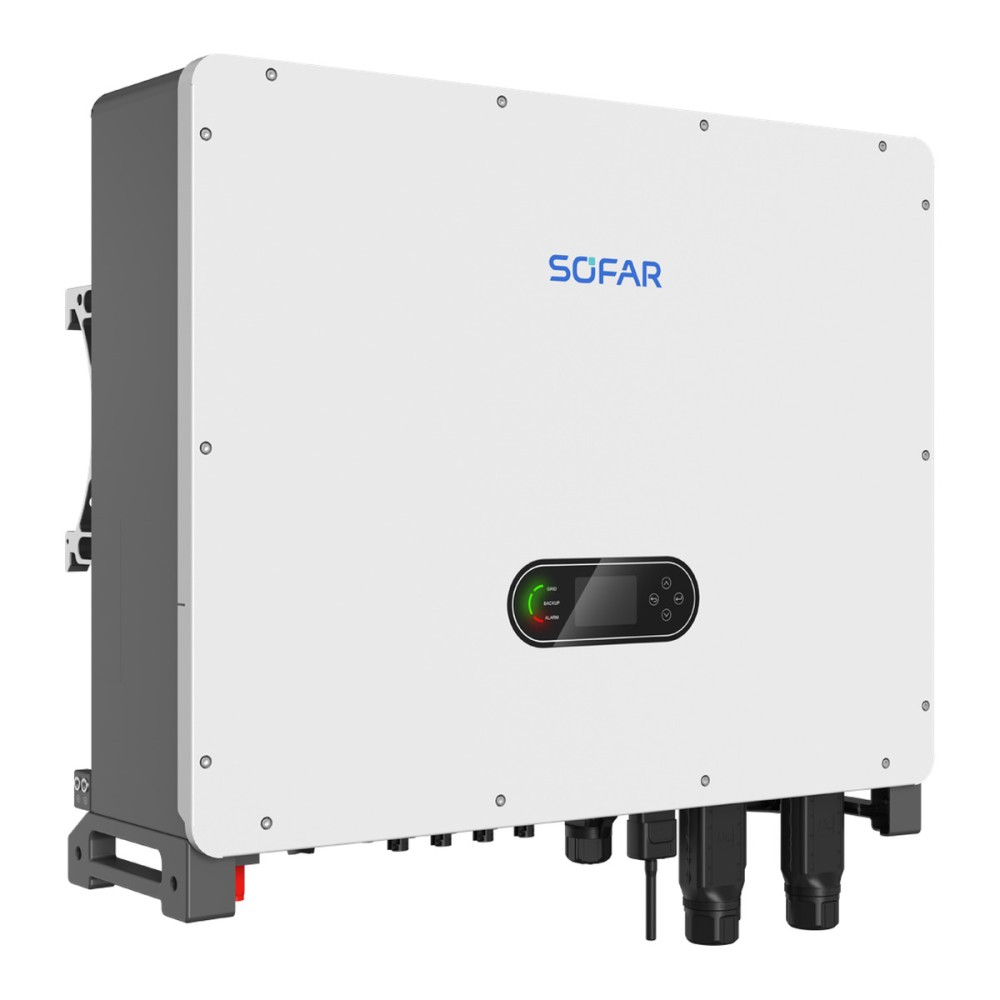

HYD-60K-T1 is a 60 kW three-phase SOFAR hybrid inverter with 4 MPPT (160-950 V, 40 A per MPPT) and a 600-1000 V HV battery input. Battery charging is up to 60 kW (100 A), discharging up to 60 kW (100 A), and the backup output switches over in 4 ms. It is wall mounted, rated IP66 and weighs 75 kg.
HYD-60K-T1 is a 60 kW three-phase hybrid inverter for commercial installations, with 4 MPPT and a port for a high-voltage battery (600-1000 V). It combines PV inversion, battery charging and backup supply in a single IP66 wall-mounted unit.
The inverter connects to a SOFAR HV battery (600-1000 V) over CAN communication. The manual describes configurations with SOFAR CBS5000 batteries (5.12 kWh modules) and CBS8000 batteries (16 kWh modules). The battery is not included. Up to 6 inverters can run in parallel in grid-connected mode and up to 3 in off-grid mode, all of the same model and with the same battery configuration.
The unit has a port for a generator or for controlled loads (smartload), an LCD and an app for commissioning. Standard communication is RS485; Wi-Fi, 4G or LAN are optional modules. The operating temperature is -30 ... 60 °C, with derating above 45 °C.
| Number of MPPT | 4 |
|---|---|
| Max. number of input strings per MPPT | 2 |
| Recommended max. PV power | 120 kWp |
| Max. PV input voltage | 1000 V |
| Start-up voltage | 200 V |
| Rated input voltage | 600 V |
| MPPT voltage range | 160-950 V |
| Max. input current per MPPT | 40 A |
| Max. short-circuit current per MPPT | 50 A |
| Battery voltage range | 600-1000 V |
| Battery type | Lithium-ion |
| BMS communication | CAN |
| Max. charging power | 60 kW |
| Max. charging current | 100 A |
| Max. discharging power | 60 kW |
| Max. discharging current | 100 A |
| Rated AC power | 60 kW |
| Max. apparent power | 66 kVA |
| Rated output current (380/400/415 V) | 91.2/86.6/83.5 A |
| Max. output current (380/400/415 V) | 100/95.3/91.8 A |
| Max. grid input current | 100 A |
| AC voltage and frequency | 3N~+PE, 380/400/415 V, 50/60 Hz |
| Peak power in backup mode | 1.5 times rated power, 10 s |
| Backup switching time | 4 ms |
| Unbalanced load | Yes, 100 % three-phase |
| THDi | under 3 % |
| Power factor | 0.8 lagging - 0.8 leading |
| Max. MPPT efficiency | 99.9 % |
| Max. efficiency | 98.2 % |
| European efficiency | 97.5 % |
| Ingress protection | IP66 |
| Operating temperature | -30 ... 60 °C (derating above 45 °C) |
| Relative humidity | 5-95 % |
| Max. operating altitude | 4000 m (derating above 2000 m) |
| Standby self-consumption | under 15 W |
| Installation | Wall mounted |
| Dimensions (W x H x D) | 850 x 660 x 305 mm |
| Weight | 75 kg |
| Communication | RS485; optional Wi-Fi, 4G, LAN |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
