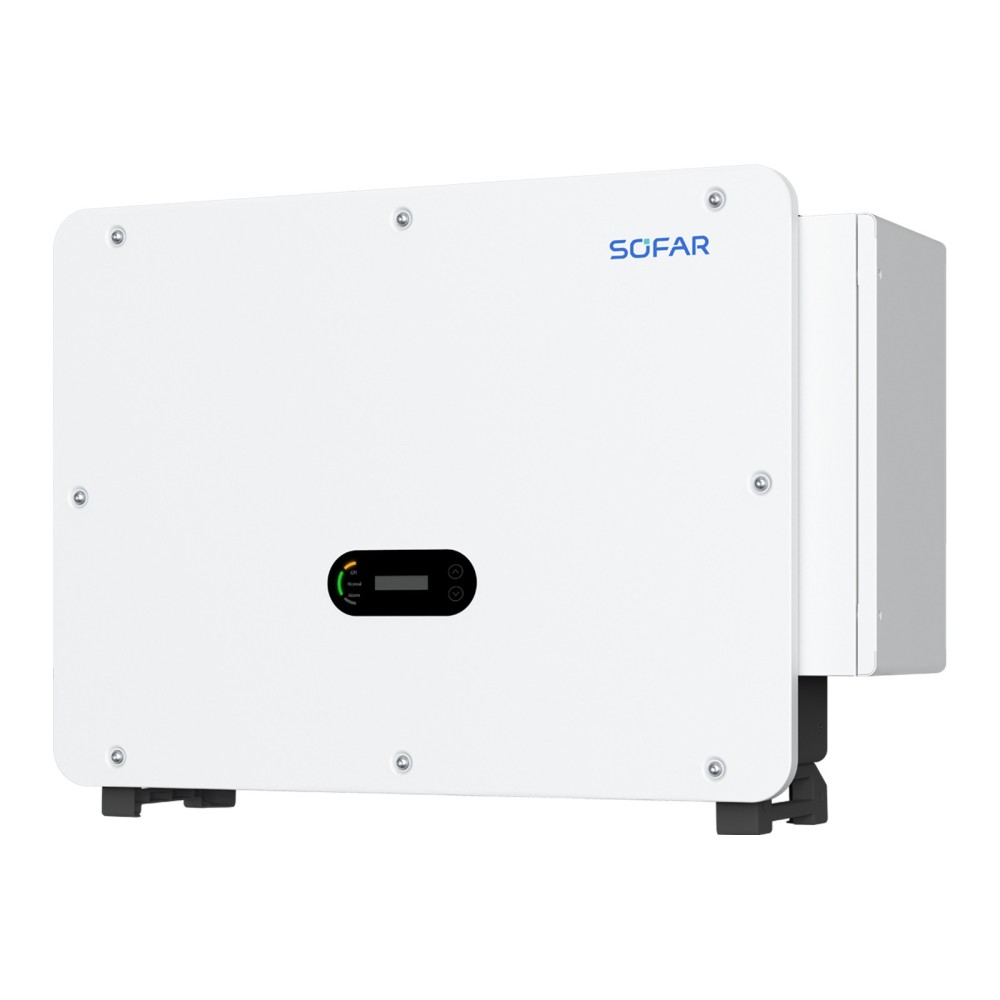

100 kW SOFAR on-grid inverter, three-phase, 100KTLX-G4

100 kW SOFAR on-grid inverter, three-phase, 100KTLX-G4

€4,456 Tax included

€3,713 Tax excluded

100KTLX-G4 is a SOFAR three-phase on-grid inverter with a rated power of 100 kW (maximum apparent power 100 kVA at 45 °C), 10 MPPTs, a 180-1000 V MPPT range and a maximum efficiency of 98.6%. It has built-in AFCI, IP66 protection, RS485 and Wi-Fi communication, and weighs 75 kg.

Reference 100KTLX-G4

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

100KTLX-G4 - 100 kW three-phase on-grid inverter, 10 MPPTs, built-in AFCI

100KTLX-G4 is a three-phase on-grid string inverter from SOFAR with a rated power of 100 kW (maximum apparent power 100 kVA at 45 °C), 10 MPPTs, built-in AFCI and IP66 protection, for commercial and industrial PV systems.

Main features:

  • Rated power: 100 kW
  • Maximum apparent power: 100 kVA at 45 °C, 90 kVA at 50 °C
  • MPPT: 10 MPPTs, 180-1000 V, 20 DC inputs
  • Recommended maximum PV power: 170 kWp
  • Maximum efficiency: 98.6%
  • Protection: IP66, built-in AFCI, type II surge protection on DC and AC
  • Dimensions and weight: 970 x 695 x 325 mm (W x H x D), 75 kg

Each of the 10 MPPTs takes a maximum input current of 40 A and a short-circuit current of 50 A. The recommended maximum PV power is 170 kWp and the inverter accepts 170% DC overload. For monitoring it offers I-V curve scanning, Modbus communication over RS485 and an external Wi-Fi module.

Protections include AFCI, PID recovery, DC reverse polarity, anti-islanding, leakage current, ground fault, PV string fault monitoring, a DC switch and type II surge protection on DC and AC. It operates from -30 to 60 °C, up to 4000 m altitude (derating above 3000 m), with air cooling.

At 75 kg, the 100KTLX-G4 is unpacked and mounted by at least two people, on the bracket (rear panel) supplied with the inverter.

Technical specifications

Recommended maximum PV input power170 kWp
Maximum input voltage1100 V
Rated input voltage625 V
Start-up voltage200 V
MPPT operating voltage range180-1000 V
Number of MPP trackers10
Number of DC inputs20
Maximum input current per MPPT10 x 40 A
Maximum short-circuit current per MPPT10 x 50 A
Rated output power100 kW
Maximum apparent power100 kVA at 45 °C / 90 kVA at 50 °C
Maximum output current152 A at 380 V / 145 A at 400 V / 139.2 A at 415 V
Rated output voltage3/N/PE, 380/400/415 V
Output voltage range310-480 V
Rated output frequency50/60 Hz
Output frequency range45-55 Hz / 55-65 Hz
Active power adjustable range0-100 %
THDiunder 1% (at 100% power)
Power factor0.8 leading - 0.8 lagging
Maximum efficiency98.6 %
European efficiency98.3 %
DC reverse polarity protectionYes
Anti-islanding protectionYes
Leakage current protectionYes
Ground fault monitoringYes
PV-array string fault monitoringYes
DC switchYes
AFCI (arc fault detection)Yes
PID recoveryYes
Surge protection (SPD)PV: type II, AC: type II
Ambient temperature range-30 ... 60 °C
TopologyTransformerless
Degree of protectionIP66
Allowable relative humidity range0-100 %
Maximum operating altitude4000 m (derating above 3000 m)
CoolingSmart air cooling
Dimensions (W x H x D)970 x 695 x 325 mm
Weight75 kg
DisplayLCD & Bluetooth + APP
CommunicationRS485, Wi-Fi
StandardsEN/IEC 62109-1/2, EN/IEC 61000-6-2/-4, IEC 61000-3-4/-5, EN 50530, EN 50549, IEC 62116, IEC 61727, IEC 61683, IEC 60068-2-1/2/14/30, VDE V 0126-1-1, UTE C15-712-1, VDE-AR-N 4105/4110, NTS 631, UNE 217001, UNE 217002, G99, C10/11

Data sheet

Reference
100KTLX-G4
MPN
100KTLX-G4
Product type
Inverter
Inverter type
On-grid (no battery)
Phases
Three-phase
Power class
20+ kW
Continuous output power (VA, 25 °C)
100000 VA
Continuous output power (W, 25 °C)
100000 W
Maximum efficiency
98.6 %
Battery voltage
No battery
Max. PV input voltage
1100 V
Max. PV short-circuit current
50 A
Number of MPPT trackers
10
MPPT voltage range
180-1000 V
AC output voltage
3/N/PE, 380/400/415 V
Output frequency
50/60 Hz
Max. AC input current
145 A at 400 V
Communication interfaces
Bluetooth
Modbus
RS485
Wi-Fi
Protections
DC reverse polarity, anti-islanding, leakage current, ground fault, PV string monitoring, DC switch, type II surge protection on DC and AC, AFCI
Dimensions (H x W x D)
695 x 970 x 325 mm
Weight
75 kg
Ingress protection (IP)
IP66
Operating temperature
-30 ... 60 °C
Max. relative humidity
100 %
Standards and compliance
EN/IEC 62109-1/2, EN/IEC 61000-6-2/-4, IEC 61000-3-4/-5, EN 50530, EN 50549, IEC 62116, IEC 61727, IEC 61683, IEC 60068-2-1/2/14/30, VDE V 0126-1-1, UTE C15-712-1, VDE-AR-N 4105/4110, NTS 631, UNE 217001, UNE 217002, G99, C10/11

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
