5 kW Pylontech Force-H3X hybrid inverter, single-phase, HV, FH3X5K-HY-1P

Name: 5 kW Pylontech Force-H3X hybrid inverter, single-phase, HV, FH3X5K-HY-1P
Brand: Pylontech
SKU: FH3X5K-HY-1P
Price: 1739.00 EUR
Availability: InStock

€1,739 Tax included

€1,449 Tax excluded

FH3X5K-HY-1P is a 5 kW single-phase hybrid inverter with 2 MPPT (80-550 V) and built-in BMS, mounted on 1-4 FH10050 battery modules (5.12-20.48 kWh). It has a maximum efficiency of 98%, a maximum charge and discharge current of 40 A, a back-up output with switchover in 10 ms or less, IP65, and Wi-Fi and Bluetooth communication.

Reference FH3X5K-HY-1P

Your legal guarantee rights

FH3X5K-HY-1P - Single-phase hybrid inverter 5 kW for HV battery modules

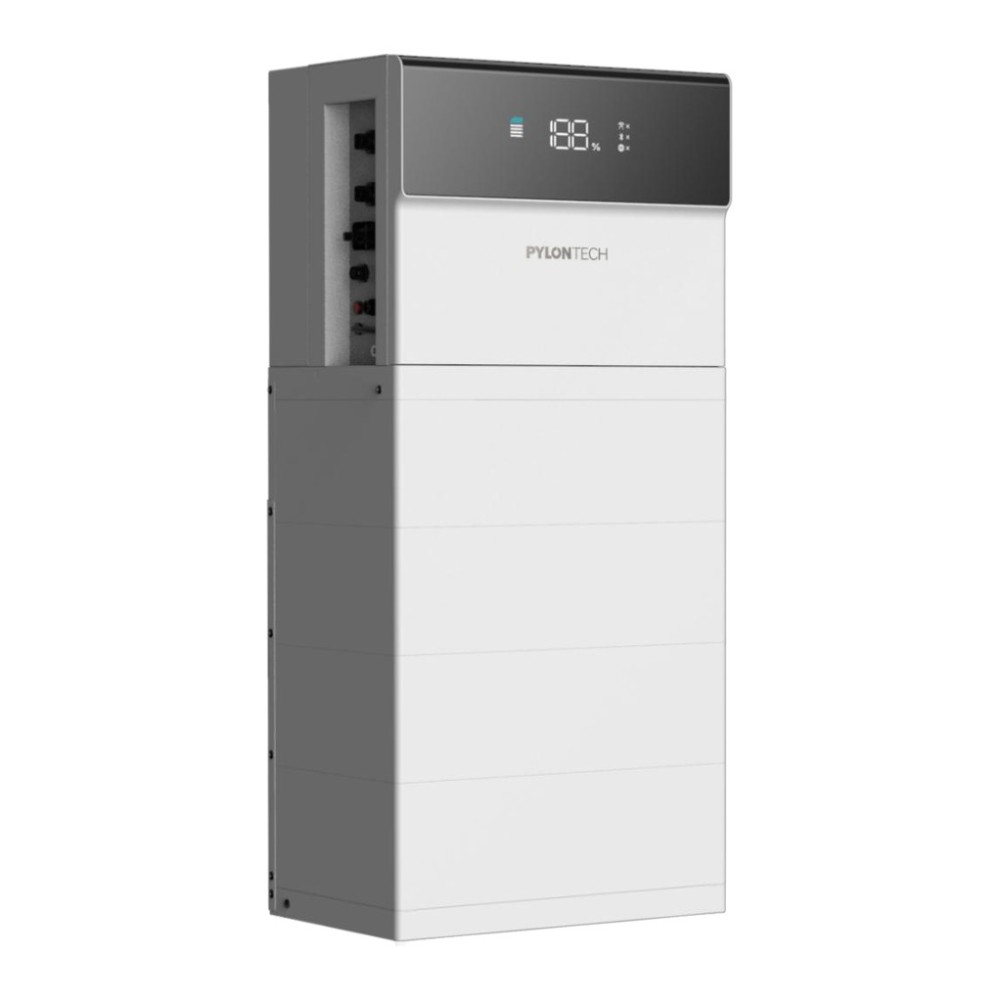

FH3X5K-HY-1P is the all-in-one controller of the Pylontech Force-H3X system: a 5 kW single-phase hybrid inverter with built-in MPPT and BMS, mounted directly on 1-4 FH10050 battery modules (5.12-20.48 kWh) to form a complete solar storage system, with no extra junction box or switch. The FH10050 modules are not included and are added separately.

Main features:

Rated power: 5 kW
PV input: 2 MPPT, 80-550 V, maximum 8 kW
Battery: 1-4 FH10050 modules, 5.12-20.48 kWh
Battery current: 40 A charge and discharge
Maximum efficiency: 98%
Back-up output: 5000 VA, switchover in at most 10 ms
Protection and communication: IP65, Wi-Fi and Bluetooth

The controller contains the inverter, the MPPT trackers and the battery management system (BMS). It is installed on 1, 2, 3 or 4 FH10050 battery modules of 102.4 V and 5.12 kWh (system capacity 5.12 / 10.24 / 15.36 / 20.48 kWh) and does not use the FC1000 controller of the Force-H3 system. With a single module the maximum charge and discharge power is 2.5 kW; with 2-4 modules charging can reach 8 kW and discharging 5 kW.

The PV input has 2 MPPT with one string each, an MPPT range of 80-550 V (full load 190-520 V), a start-up voltage of 80 V, a maximum input voltage of 600 V, a maximum current of 16 A and a short-circuit current of 25 A per MPPT; the maximum PV power is 8 kW. The grid is 1/N/PE, 230 V, 50/60 Hz, with a nominal current to the grid of 21.7 A and a maximum current from the grid of 32.6 A. The back-up output delivers 5000 VA, with a peak of 6000 VA for 60 s, and the changeover between grid and back-up takes at most 10 ms.

The controller box contains the base, the anti-tipping and module brackets, the AC, PV and RJ45 connectors, one current transformer (CT) and the mounting accessories; the battery modules are packed separately. An energy meter can optionally be connected to the COM terminal, and the CT is then connected to the meter. The controller has natural cooling, a transformerless topology, a noise level below 30 dB at 1 m, a night-time consumption below 15 W, an LED display, an installed emergency power off (EPO) button and Wi-Fi and Bluetooth communication. It operates at -10...55 °C (power is reduced above 45 °C), at 0-100% humidity, and power is reduced above 2000 m altitude. The user manual states parallel operation of up to 6 units.

Technical specifications

Type	Single-phase all-in-one hybrid inverter, controller with built-in BMS
Battery module model	FH10050
Number of battery modules	1 / 2 / 3 / 4
System nominal capacity	5.12 / 10.24 / 15.36 / 20.48 kWh
System nominal power	5 kW
Maximum PV power	8 kW
Maximum PV input voltage	600 V
Start-up voltage	80 V
MPPT voltage range	80-550 V
MPPT full-load voltage range	190-520 V
Number of MPPT	2
Number of PV strings per MPPT	1
Maximum input current per MPPT	16 A
Short-circuit current per MPPT	25 A
PV surge protection	Type II
Maximum continuous charge/discharge current	40 A
Maximum charging power with 1 module	2.5 kW
Maximum discharging power with 1 module	2.5 kW
Maximum charging power with 2-4 modules	8 kW
Maximum discharging power with 2-4 modules	5 kW
Nominal grid voltage	1/N/PE, 230 V
Nominal grid frequency	50/60 Hz
Nominal continuous current to the grid	21.7 A
Nominal active power to the grid	5000 W
Maximum apparent power to the grid	5000 VA
Maximum continuous current from the grid	32.6 A
Nominal active power from the grid	7500 W
Maximum apparent power from the grid	7500 VA
Power factor range	-0.8...+0.8
Current harmonic distortion (THDi)	< 3 %
Nominal voltage (back-up)	1/N/PE, 230 V
Nominal output frequency (back-up)	50/60 Hz
Maximum continuous current (back-up)	21.7 A
Maximum apparent power (back-up)	5000 VA
Peak off-grid power (60 s)	6000 VA
Grid / back-up switching time	≤ 10 ms
Voltage harmonic distortion (THDv)	< 3 %
Maximum efficiency	98 %
European efficiency	97.5 %
Protections	Anti-islanding, AFCI 2.0 (IEC 63027), insulation resistance monitoring, residual current monitoring, output overcurrent, short-circuit and overvoltage protection, DC switch, DC reverse-polarity protection, PV overvoltage protection, DC/AC surge protection type II
Complete system dimensions, W x H x D (1 / 2 / 3 / 4 modules)	540 x 665 / 835 / 1005 / 1175 x 350 mm
Complete system weight (1 / 2 / 3 / 4 modules)	77 / 116 / 155 / 194 kg
Topology	Transformerless
Operating temperature	-10...55 °C (power is reduced above 45 °C)
Operating relative humidity	0-100 %
Altitude	Power is reduced above 2000 m
Noise level (1 m)	< 30 dB
Protective class	I
Overvoltage category	DC II / AC III
Ingress protection	IP65
Salt spray resistance	C5-M
Cooling	Natural
Standby consumption (night)	< 15 W
Communication	Wi-Fi, Bluetooth
Display	LED
Emergency power off (EPO)	Installed
Parallel operation	Up to 6 units
Standards and compliance	VDE-AR-N 4105, EN 50549-1, EN 50549-10, IEC 62109-1, IEC 62109-2, IEC 62619, IEC 62477-1, UN 38.3, VDE-AR-E 2510-50, CEI 0-21, G98, G99

Data sheet

Reference: FH3X5K-HY-1P
MPN: FH3X5K-HY-1P
Product type: Inverter
Inverter type: Hybrid (built-in MPPT)
Phases: Single-phase
Power class: 3.5-6 kW
Continuous output power (W, 25 °C): 5000 W
Peak power: 6000 VA, 60 s
Maximum efficiency: 98 %
Zero-load power: under 15 W
Battery voltage: HV (high voltage)
Max. charge current: 40 A
Max. PV input voltage: 600 V
Max. PV short-circuit current: 25 A
Number of MPPT trackers: 2
MPPT voltage range: 80-550 V
AC output voltage: 230 V
Output frequency: 50/60 Hz
Max. AC input current: 32.6 A
Parallel operation: Yes
Communication interfaces: Bluetooth
Wi-Fi
Protections: Anti-islanding, AFCI 2.0 (IEC 63027), insulation resistance monitoring, residual current monitoring, output overcurrent, short-circuit and overvoltage protection, DC switch, DC reverse-polarity protection, PV overvoltage protection
Dimensions (H x W x D): 495 x 540 x 350 mm
Weight: 38 kg
Ingress protection (IP): IP65
Operating temperature: -10 ... 55 °C
Max. relative humidity: 100 %
Standards and compliance: VDE-AR-N 4105, EN 50549-1, EN 50549-10, IEC 62109-1, IEC 62109-2, IEC 62619, IEC 62477-1, UN 38.3, VDE-AR-E 2510-50, CEI 0-21, G98, G99

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
