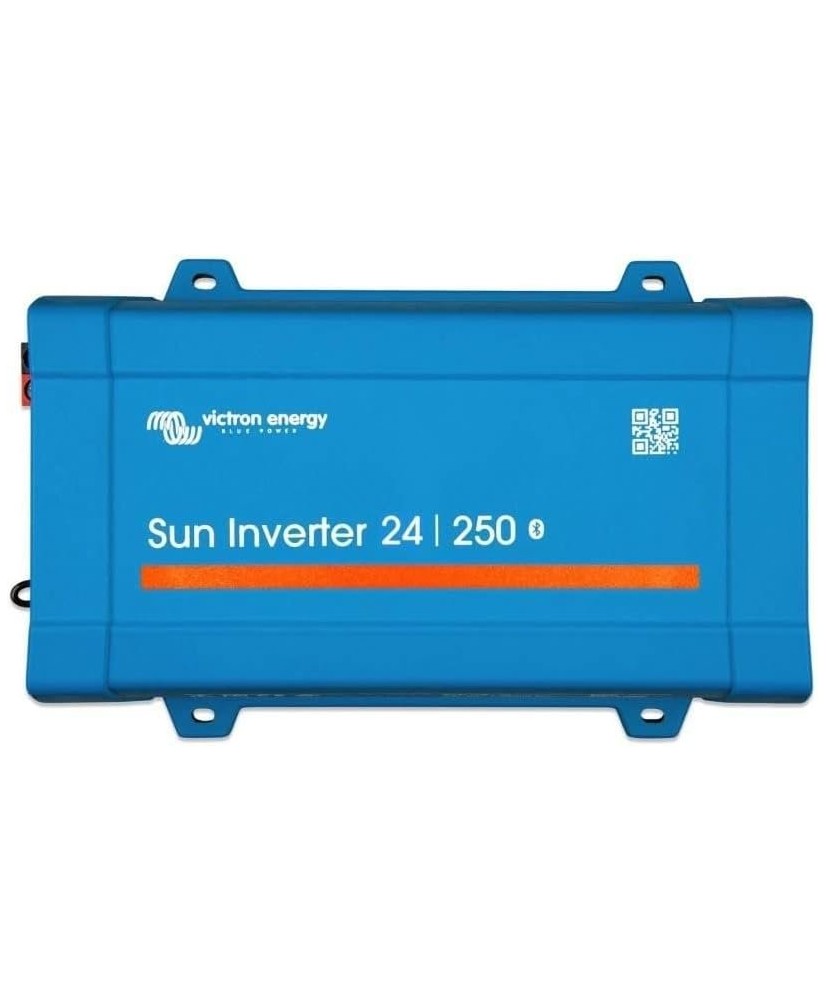

Sun Inverter 24/250-10 IEC - Sine wave inverter 24V with PWM solar charger
Sun Inverter 24/250-10 IEC is a 24 V sine wave inverter with a built-in PWM solar charger in one easy-to-install enclosure. It delivers 200 W continuous and 400 W peak at 230 V AC, powering domestic equipment from 24 V batteries charged by solar panels. Parameters can be read via Bluetooth in VictronConnect, and a VE.Direct port allows connection to a GX device.
Main features:
- Battery voltage: 24 V
- Continuous power (25 °C): 200 W
- AC output: 230 V, 50 or 60 Hz
- Solar charging: PWM, 72-cell panel or 2 x 36 in series
- Max. PV input: 50 V / 10 A / 500 W
- Communication: Bluetooth, VE.Direct
The Sun Inverter combines a sinewave inverter and a PWM solar charger in one enclosure and is easy to install, with a minimum of wiring.
The inverter allows you to power domestic equipment - requiring 230V AC - using 'leisure' or 'automotive' batteries rated at 12V or 24V.
The solar charger ensures that the batteries are being charged by energy harvested from your solar panels. The charge algorithm is programmable.
The inverter and solar charger parameters can be read out via Bluetooth using the VictronConnect app. In addition to this, the inverter has a VE.Direct Port for connection to a GX device or GlobalLink 520 for system monitoring.
Technical specifications
| Nominal battery voltage | 24 V |
|---|
| Continuous output power at 25 °C (W) | 200 W |
|---|
| Continuous output power at 40 °C | 175 W |
|---|
| Peak power | 400 W |
|---|
| AC output voltage | 230 V |
|---|
| Frequency selection | 50Hz or 60Hz |
|---|
| DC input voltage range | 18.4 … 34 V |
|---|
| DC low shutdown | 18.6 V |
|---|
| DC low restart and alarm | 21.8 V |
|---|
| Dynamic low DC shutdown | Yes |
|---|
| Battery charged detection voltage | 28 V |
|---|
| Maximum efficiency | 88 % |
|---|
| Zero load power | 5.2 W |
|---|
| Zero load power in ECO mode | 1.3 W |
|---|
| Includes PWM | Yes |
|---|
| Solar technology | Pulse With Modulation (PWM) |
|---|
| Solar panel type | Solar panel with 72 cells, Two solar panles with 36 cells in series |
|---|
| Charge voltages | Adjustable and able to be temperature compensated |
|---|
| Temperature sensor | Optional (Smart Battery Sense) |
|---|
| Protections | Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, Excessive DC ripple |
|---|
| Bluetooth | Yes |
|---|
| Remote on/off terminal | Yes |
|---|
| Communication port | Bluetooth, VE.Direct |
|---|
| Fully programmable | Yes |
|---|
| Operating temperature range | -40 … 60 °C |
|---|
| Power derating | 1.25 %/°C |
|---|
| Maximum humidity | 95 % |
|---|
| AC outlet socket | IEC-320 (male plug included) |
|---|
| Battery connection terminals | Screw terminals 10 mm² (8 AWG) |
|---|
| PV connection terminals | Screw terminals 4 mm² (12 AWG) |
|---|
| Remote control terminal | Screw terminal two pole |
|---|
| Colour | Blue (RAL 5012) |
|---|
| Material | Steel chassis and plastic cover |
|---|
| Protection category | IP21 |
|---|
| Weight | 2.4 kg |
|---|
| Height | 86 mm |
|---|
| Width | 165 mm |
|---|
| Depth | 260 mm |
|---|
| Safety | EN-IEC 60335-1, EN-IEC 62109-1 |
|---|
| EMC | EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3 |
|---|
| Automotive directive | ECE R10-4, EN 50498 |
|---|
