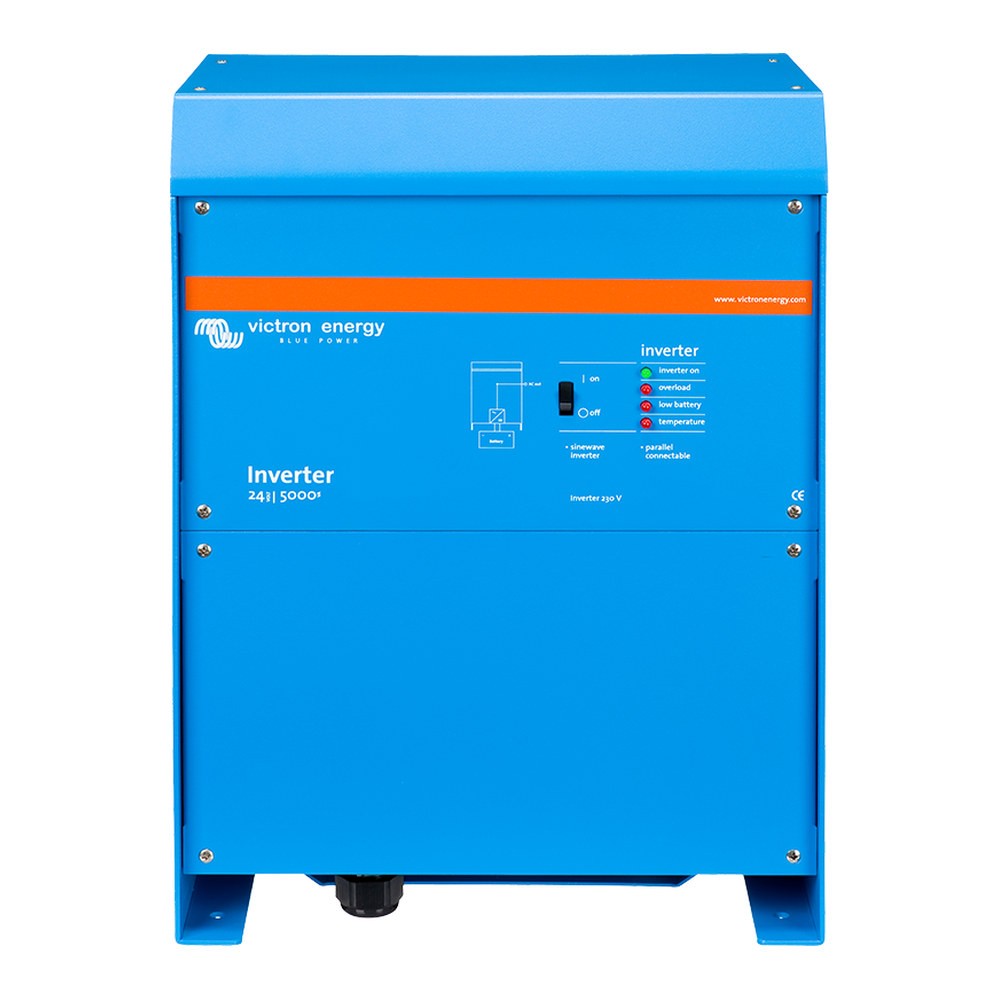

Inverter 24/5000 230V VE.Bus Victron Energy
  • Inverter 24/5000 230V VE.Bus Victron Energy
  • Inverter 24/5000 230V VE.Bus Victron Energy
  • Inverter 24/5000 230V VE.Bus Victron Energy

Inverter 24/5000 230V VE.Bus Victron Energy

€2,026 Save €304
€1,722 Tax included

€1,435 Tax excluded

Phoenix 24/5000 230V VE.Bus is a pure sine wave inverter from the SinusMax range, combining high frequency and line frequency technologies for high efficiency and high peak power. It delivers 4000 W continuous from 24V batteries and can operate in parallel, up to 6 units, or in a three-phase configuration.

Reference PIN245020000

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

Phoenix 24/5000 230V VE.Bus - 24V SinusMax sine wave inverter

Phoenix 24/5000 230V VE.Bus is a pure sine wave inverter from the SinusMax range, combining high frequency and line frequency technologies for high efficiency and high peak power. It delivers 4000 W continuous from 24V batteries and can operate in parallel, up to 6 units, or in a three-phase configuration.

Main features:

  • Battery voltage: 24 V (19-33 V)
  • Continuous power: 4000 W / 5000 VA at 25 °C
  • Peak power: 10,000 W, for refrigeration compressors and electric motors
  • Maximum efficiency: 94 %
  • Parallel and three-phase: up to 6 units in parallel, three-phase capable
  • Communication: VE.Bus, programmable relay, GX devices (e.g. Cerbo GX)

Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.

SinusMax - Superior engineering
Developed for professional duty, this range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.

Parallel and 3-phase operation capability
Up to 6 Inverters can operate in parallel to achieve higher power output. Six 24 V 5000 VA units, for example, will provide 24 kW / 30 kVA output power. Operation in 3-phase configuration is also possible.

Technical specifications

Nominal battery voltage24 V
DC input voltage range19 … 33 V
AC output voltage230 V
Frequency selection50Hz or 60Hz
Continuous output power at 25 °C (VA)5000 VA
Continuous output power at 25 °C (W)4000 W
Continuous output power at 40 °C3700 W
Continuous output power at 65 °C3000 W
Peak power10000 W
Maximum efficiency94 %
Zero load power30 W
Zero load power in AES mode25 W
Zero load power in search mode10 W
Programmable relayAC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Remote on/off terminalYes
Communication portVE.Bus
Fully programmableYes
Parallel and 3-phase operationYes
ProtectionsOutput short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Operating temperature range-40 … 65 °C
CoolingYes
Maximum humidity95 %
Battery connectionM8 bolts (two for positive and two for negative connection)
AC connectionScrew terminals
Remote control terminalScrew terminal two pole
Relay terminalScrew terminal 3-pole
ColourBlue (RAL 5012)
MaterialAluminium
Protection categoryIP21
Weight30 kg
Height4444 mm
Width328 mm
Depth240 mm
SafetyEN-IEC 60335-1
EMCEN 55014-1, EN 55014-2

Data sheet

Reference
PIN245020000
EAN13
8719076023760
Brand
Victron Energy
Product type
Inverter
Inverter type
Inverter (no charger)
Phases
Single-phase
Power class
3.5-6 kW
Continuous output power (VA, 25 °C)
5000 VA
Continuous output power (W, 25 °C)
4000 W
Peak power
10000 W
Maximum efficiency
94 %
Zero-load power
30 W
Output waveform
Pure sine wave
Battery voltage
24 V
DC input voltage range
19-33 V
AC output voltage
230 V
Output frequency
50/60 Hz
Parallel operation
Yes
Communication interfaces
VE.Bus
Programmable relay
Yes
Protections
Output short-circuit, overload, overtemperature, high battery voltage, low battery voltage, excessive DC ripple, AC voltage on output
Dimensions (H x W x D)
444 x 328 x 240 mm
Weight
30 kg
Ingress protection (IP)
IP21
Operating temperature
-40 ... 65 °C
Max. relative humidity
95 %
Colour
Blue
Material
Aluminium
Standards and compliance
EN-IEC 60335-1, EN 55014-1, EN 55014-2

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
