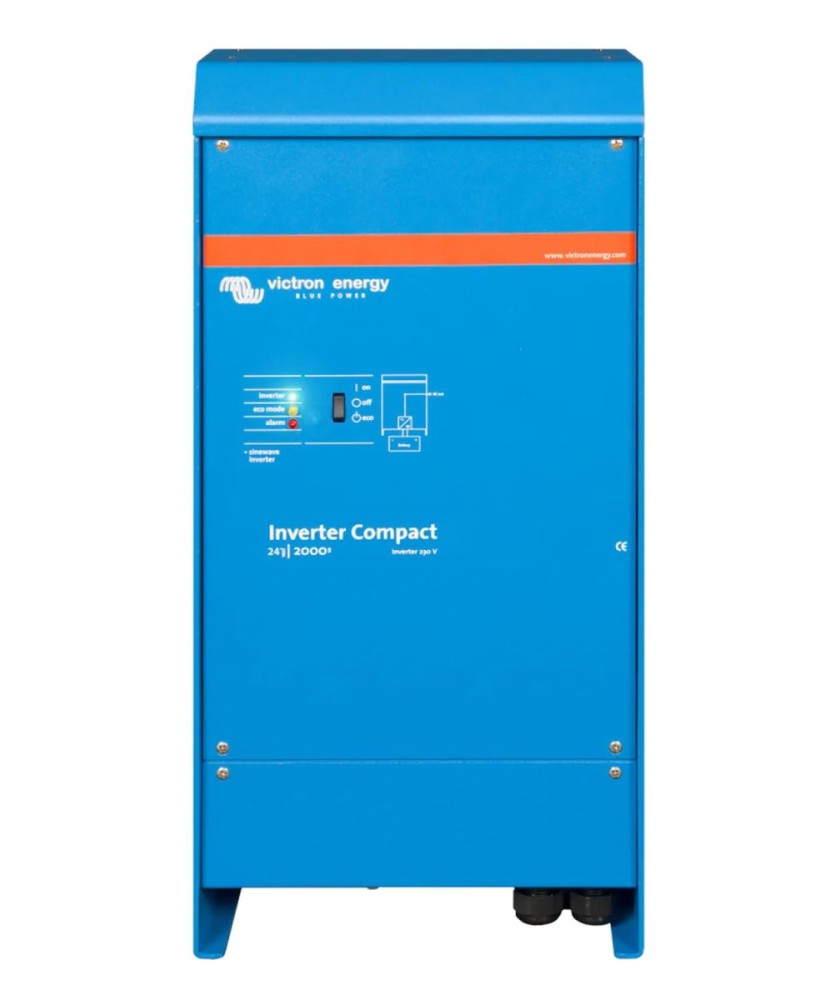

Inverter Compact 24/2000 230V VE.Bus - Pure sine wave inverter 24V
Inverter Compact 24/2000 230V VE.Bus is a high-efficiency pure sine wave inverter developed for professional duty, converting 24 V battery power into 230 V AC with 2000 VA continuous and 4000 W peak. Output frequency is selectable at 50 or 60 Hz, and the VE.Bus port allows parallel or three-phase operation.
Main features:
- Battery voltage: 24 V (19-33 V)
- Inverter power: 2000 VA / 1600 W at 25 °C, peak 4000 W
- AC output: 230 V, 50 or 60 Hz selectable
- Maximum efficiency: 92 %
- Communication: VE.Bus, up to 6 units in parallel or three-phase
- Programmable relay: general alarm, DC undervoltage or genset start/stop
The Inverter Compact is a pure sine wave inverter with a high efficiency. It is developed for professional duty and suitable for the wide range of applications.
The Inverters Compact is available from 1200VA up to 2000VA in 12V or 24V.
Technical specifications
| Nominal battery voltage | 24 V |
|---|
| DC input voltage range | 19 … 33 V |
|---|
| AC output voltage | 230 V |
|---|
| Frequency selection | 50Hz or 60Hz |
|---|
| Continuous output power at 25 °C (VA) | 2000 VA |
|---|
| Continuous output power at 25 °C (W) | 1600 W |
|---|
| Continuous output power at 40 °C | 1450 W |
|---|
| Continuous output power at 65 °C | 1000 W |
|---|
| Peak power | 4000 W |
|---|
| Maximum efficiency | 92 % |
|---|
| Zero load power | 11 W |
|---|
| Zero load power in AES mode | 9 W |
|---|
| Zero load power in search mode | 4 W |
|---|
| Programmable relay | AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC |
|---|
| Remote on/off terminal | Yes |
|---|
| Communication port | VE.Bus |
|---|
| Fully programmable | Yes |
|---|
| Parallel and 3-phase operation | Yes |
|---|
| Protections | Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple |
|---|
| Operating temperature range | -40 … 65 °C |
|---|
| Cooling | Yes |
|---|
| Maximum humidity | 95 % |
|---|
| Battery connection | M8 bolts |
|---|
| AC connection | Spring clamp |
|---|
| Remote control terminal | Screw terminal two pole |
|---|
| Relay terminal | Screw terminal 3-pole |
|---|
| Colour | Blue (RAL 5012) |
|---|
| Material | Aluminium |
|---|
| Protection category | IP21 |
|---|
| Weight | 12 kg |
|---|
| Height | 520 mm |
|---|
| Width | 255 mm |
|---|
| Depth | 125 mm |
|---|
| Safety | EN-IEC 60335-1 |
|---|
| EMC | EN 55014-1, EN 55014-2 |
|---|
