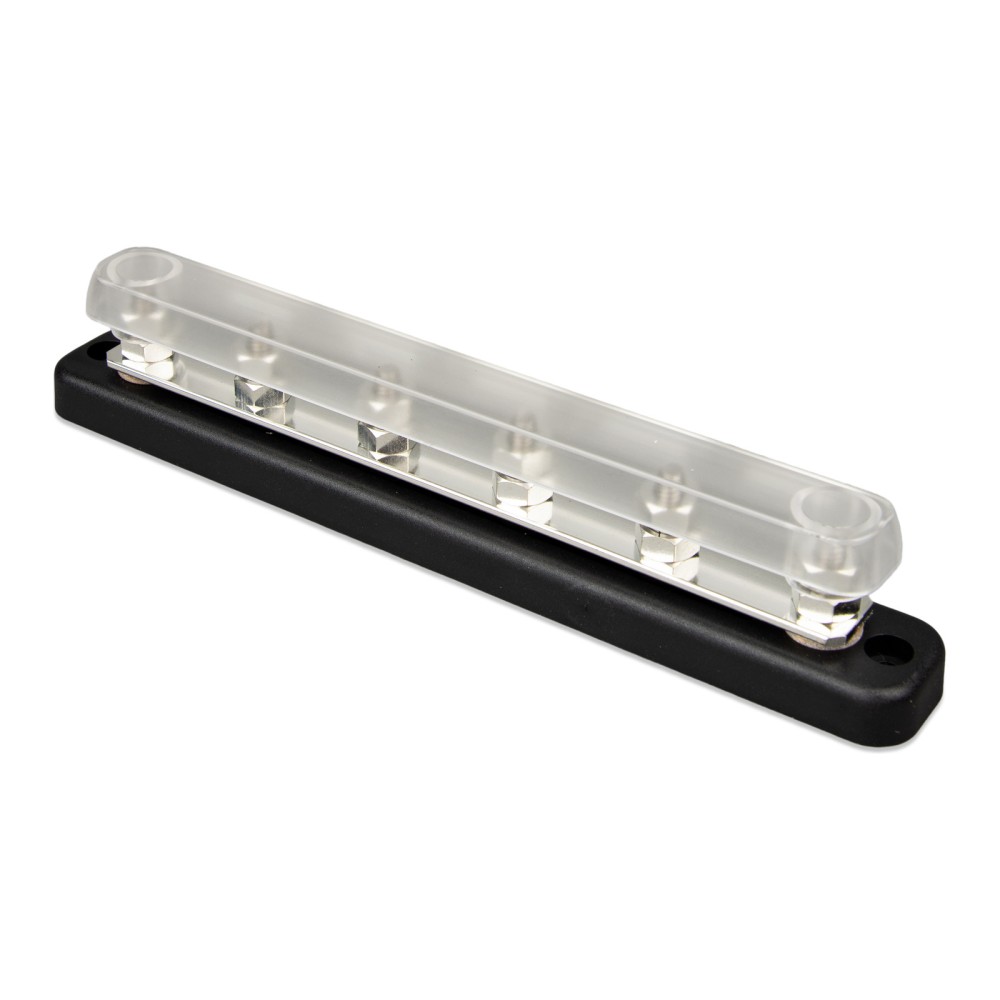

Busbar Victron Energy 150 A, 70 V, 6 connections, with cover

Busbar 150A 6P + cover - 150 A busbar with cover, 6 connections

Busbar 150A 6P + cover is a 150 A busbar with a maximum voltage of 70 V for distributing high currents. It provides connections for batteries and/or DC equipment and has a removable protective cover.

Key features:

• Maximum current: 150 A
• Maximum voltage: 70 V
• Busbar: tinned copper, 1.4 x 18 mm
• Terminal diameter: 6.35 mm
• Terminal material: stainless steel
• Base: black ABS, UL 94 V-0
• Cover: transparent polycarbonate

Busbars are used for distributing high currents and, at the same time, provide connections for batteries and/or DC equipment. Each busbar has a removable protective cover. The range includes models with different current ratings and a different number of connection terminals: 150 A / 70 V with 4 or 6 high-current connections, 250 A / 70 V with 4 or 6 high-current connections, and 600 A / 70 V with 4 or 8 high-current connections and 8 low-current connections.

This model has 6 high-current connections. The dimensions are 45 x 232 x 32 mm (height x width x depth) and the weight is 0.27 kg.

Technical specifications
