€17 Tax excluded

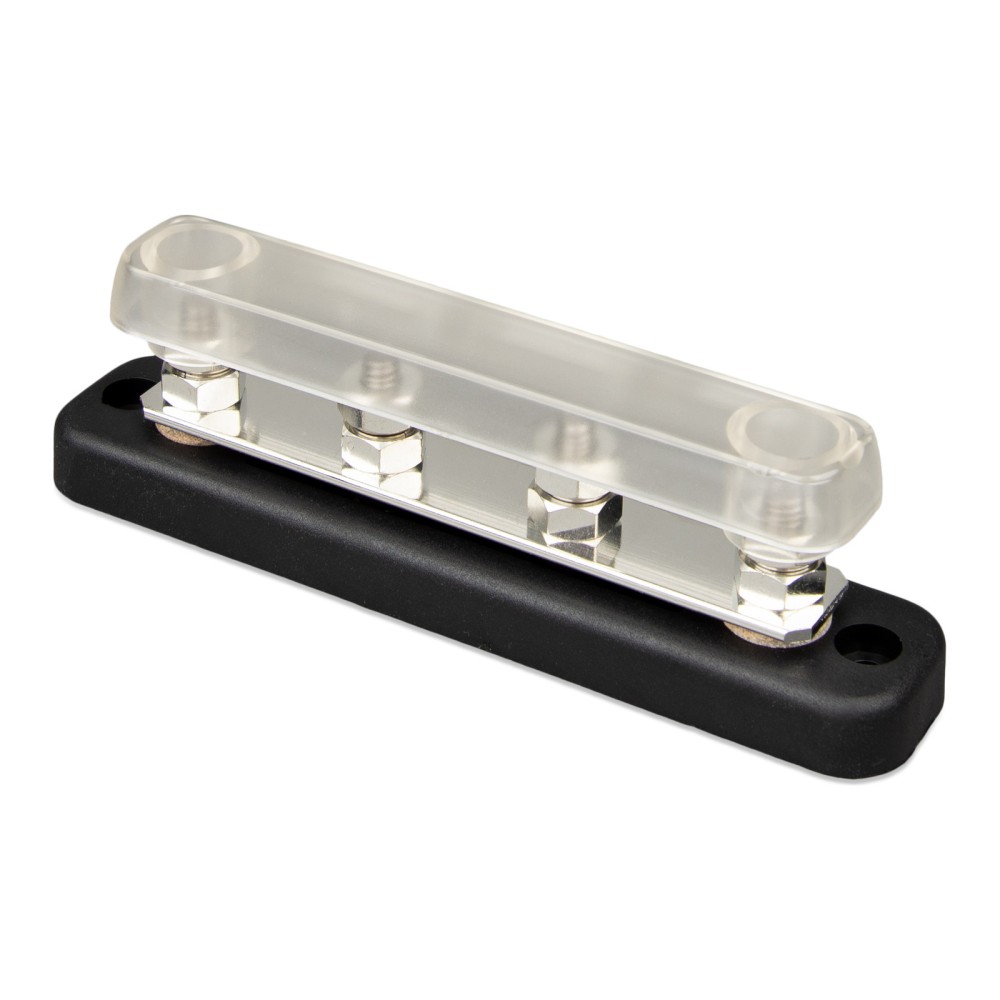

Busbar 150A 4P + cover is a Victron busbar rated 150 A and 70 V, made of tinned copper, with 4 high-current connections and a removable protective cover. It is used for distributing high currents and provides connections for batteries and/or DC equipment. The dimensions are 45 x 152 x 32 mm and the weight is 0.2 kg.
Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions
Busbar 150A 4P + cover is a 150 A busbar with a maximum voltage of 70 V for distributing high currents. It provides connections for batteries and/or DC equipment and has a removable protective cover.
Busbars are used for distributing high currents and, at the same time, provide connections for batteries and/or DC equipment. Each busbar has a removable protective cover. The range includes models with different current ratings and a different number of connection terminals: 150 A / 70 V with 4 or 6 high-current connections, 250 A / 70 V with 4 or 6 high-current connections, and 600 A / 70 V with 4 or 8 high-current connections and 8 low-current connections.
This model has 4 high-current connections. The dimensions are 45 x 152 x 32 mm (height x width x depth) and the weight is 0.2 kg.
| Maximum current | 150 A |
|---|---|
| Maximum voltage | 70 V |
| Busbar material | Tinned copper |
| Busbar dimensions | 1.4mm x 18mm |
| Terminal diameter | 6.35 mm |
| Terminal height | 17 mm |
| Terminal material | Stainless steel |
| Hex nut material | Tinned copper |
| Base material | ABS |
| Base colour | Black |
| Base flammability rating | UL 94 V-0 |
| Cover material | ABS |
| Cover colour | Transparent |
| Cover flammability rating | UL 94 HB |
| Weight | 0.2 kg |
| Height | 45 mm |
| Width | 152 mm |
| Depth | 32 mm |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the manufacturer’s datasheet.
Compatibility is calculated automatically from the manufacturers’ technical data and is for information only. For complex systems, we recommend having the configuration checked by a consultant before ordering. Details in the Terms and conditions
