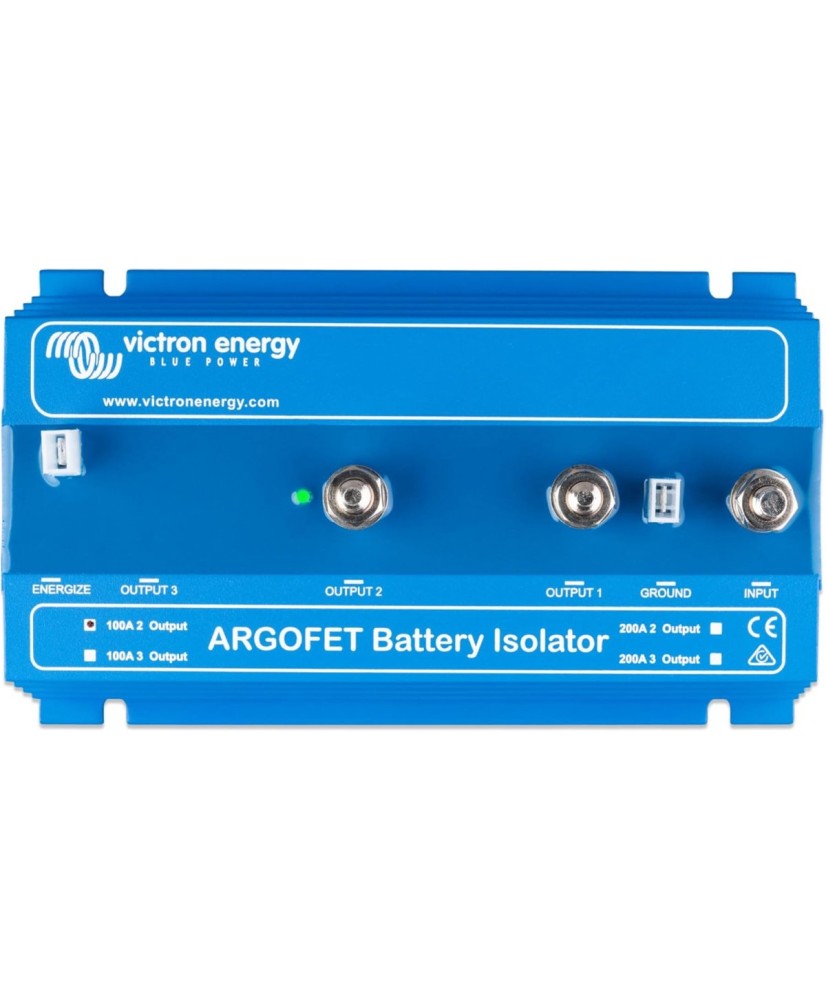

Argofet 100-2 Two batteries 100A Victron Energy

Argofet 100-2 - FET battery isolator 100 A, 2 batteries

Argofet 100-2 is a FET battery isolator that allows two batteries to be charged simultaneously from one alternator or a single-output battery charger, without connecting the batteries together. Unlike Argodiode isolators, it has virtually no voltage loss, so the alternator output voltage does not need to be increased. The maximum charge current is 100 A.

Main features:

• Max. charge current: 100 A
• Alternator energize input: yes, Faston 6.3 mm
• Nominal battery voltage: 12 V or 24 V
• Voltage drop: below 0.02 V at low current, 0.1 V average
• Battery/alternator terminals: M8 bolts
• Dimensions: 65 x 120 x 200 mm (H x W x D)

Similarly to Argodiode battery isolators, Argofet isolators allow simultaneous charging of two or more batteries from one alternator (or a single output battery charger), without connecting the batteries together. In contrast with Argodiode battery isolators, Argofet isolators have virtually no voltage loss. Voltage drop is less than 0,02 Volt at low current and averages 0,1 Volt at higher currents.

Technical specifications
