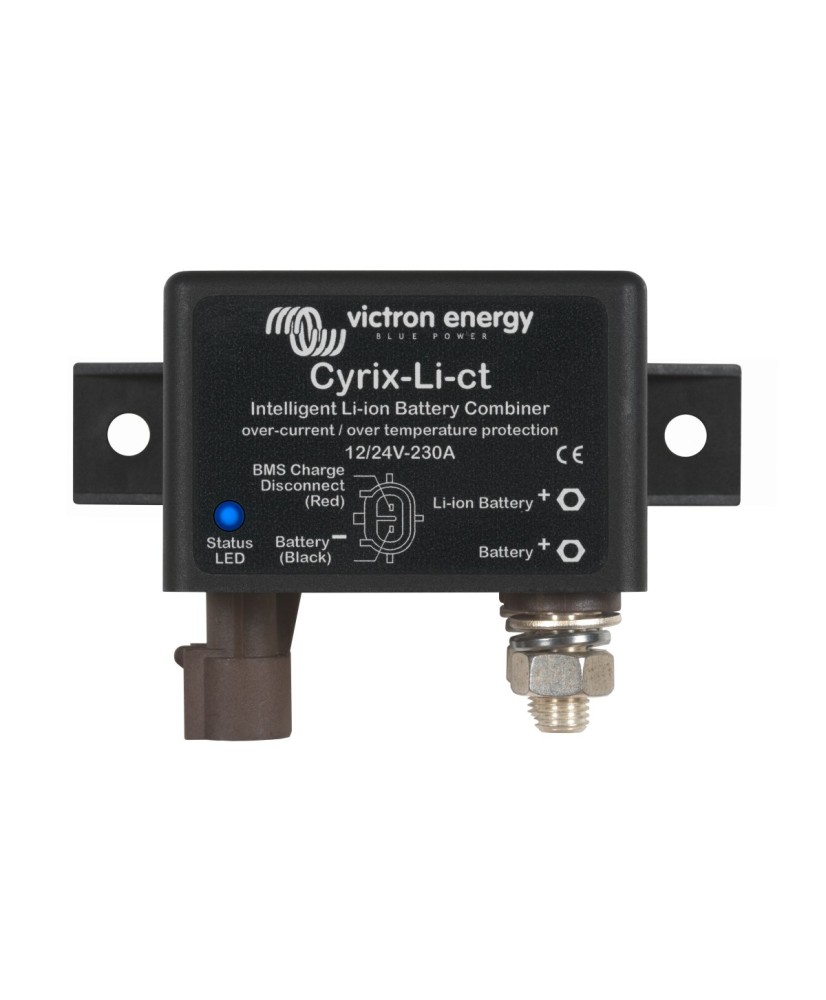

Cyrix-Li-ct 12/24V-230A - Intelligent Li-ion battery combiner

Cyrix-Li-ct 12/24V-230A is a microprocessor-controlled battery combiner for 12 V or 24 V lithium-ion systems. It automatically connects batteries in parallel during charging and separates them when the voltage falls below float level, while a control input allows the relay to be engaged or disengaged by an external signal.

Main features:

• Battery voltage: 12 V or 24 V, automatic detection
• Continuous current: 230 A
• Control input: engages when high, disengages when low or floating
• Consumption when open: 4 mA
• Control cable: included
• Protection rating: IP54

The Cyrix Battery Combiner is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged), and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). Cyrix Battery Combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased.
