€103 Tax excluded

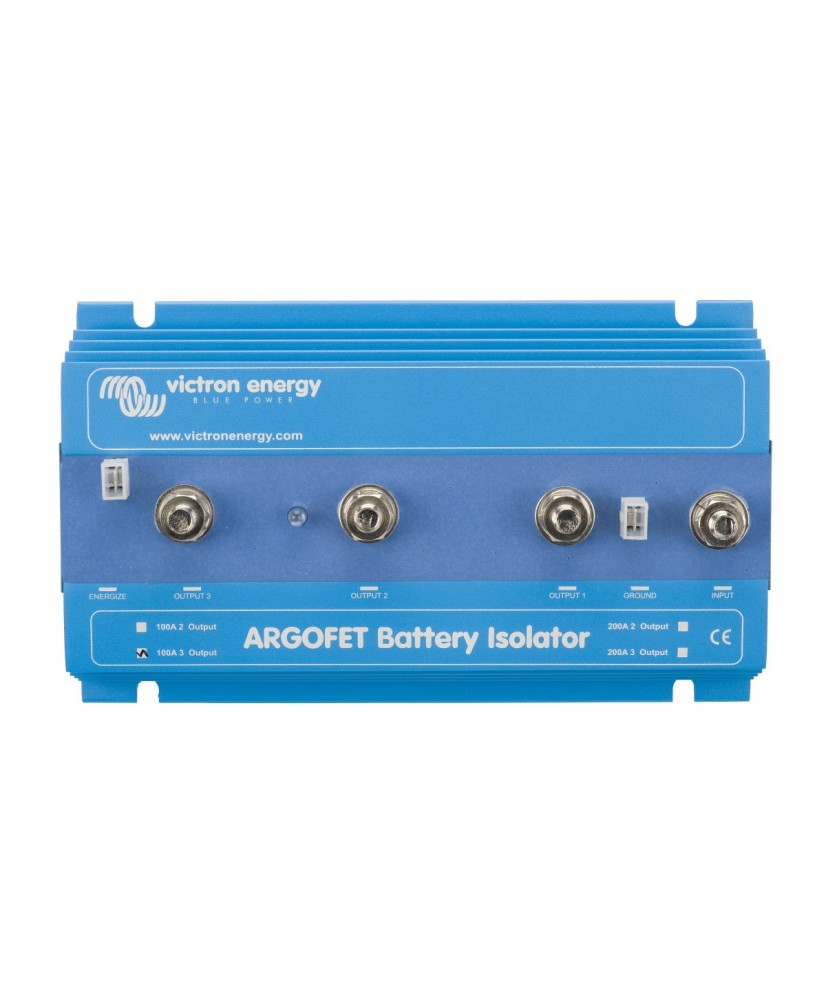

Argofet 100-3 is a FET battery isolator that allows three batteries to be charged simultaneously from one alternator or a single-output battery charger, without connecting the batteries together. Unlike Argodiode isolators, it has virtually no voltage loss, so the alternator output voltage does not need to be increased. The maximum charge current is 100 A.
Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions
Argofet 100-3 is a FET battery isolator that allows three batteries to be charged simultaneously from one alternator or a single-output battery charger, without connecting the batteries together. Unlike Argodiode isolators, it has virtually no voltage loss, so the alternator output voltage does not need to be increased. The maximum charge current is 100 A.
Similarly to Argodiode battery isolators, Argofet isolators allow simultaneous charging of two or more batteries from one alternator (or a single output battery charger), without connecting the batteries together. In contrast with Argodiode battery isolators, Argofet isolators have virtually no voltage loss. Voltage drop is less than 0,02 Volt at low current and averages 0,1 Volt at higher currents.
| Maximum charge current | 100 A |
|---|---|
| Maximum alternator current | 100 A |
| Number of batteries | 3 |
| Nominal battery voltage | 12V or 24V (selectable) |
| Alternator energize input | Yes |
| Battery terminals | M8 bolts |
| Alternator terminal | M8 bolts |
| Energize terminal | Faston 6.3 mm |
| Ground terminal | Faston 6.3 mm |
| Weight | 1.4 kg |
| Height | 65 mm |
| Width | 120 mm |
| Depth | 200 mm |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
Compatibility is calculated automatically from the manufacturers’ technical data and is for information only. For complex systems, we recommend having the configuration checked by a consultant before ordering. Details in the Terms and conditions
