€108 Tax excluded

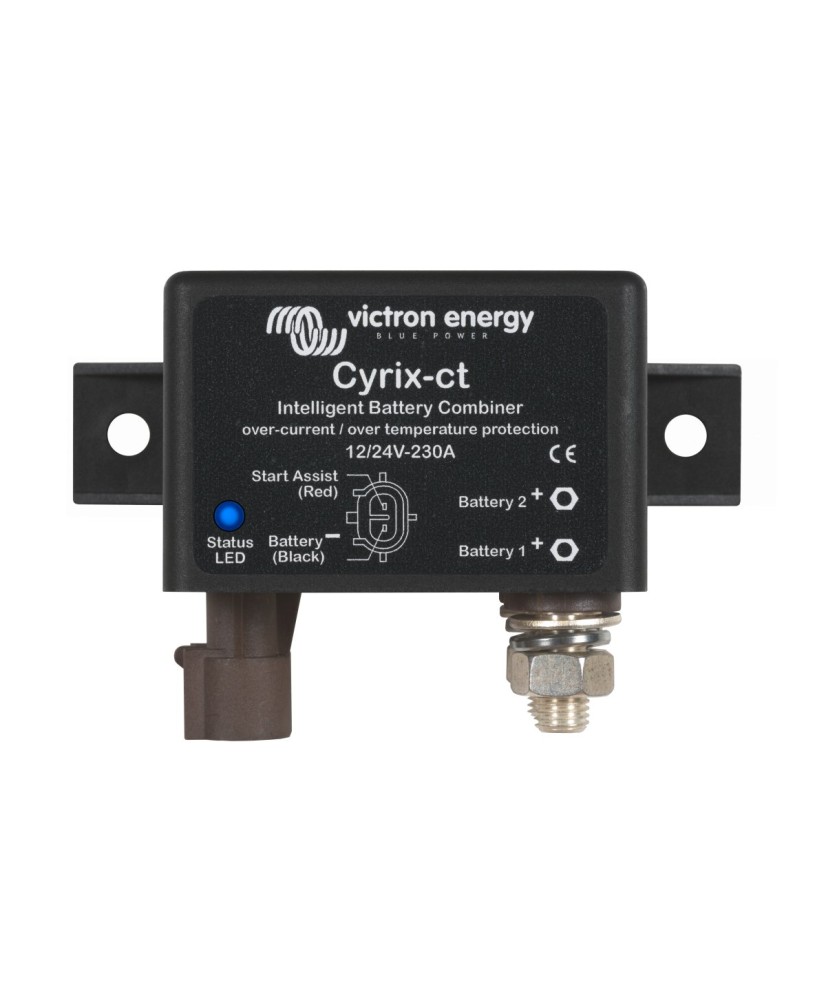

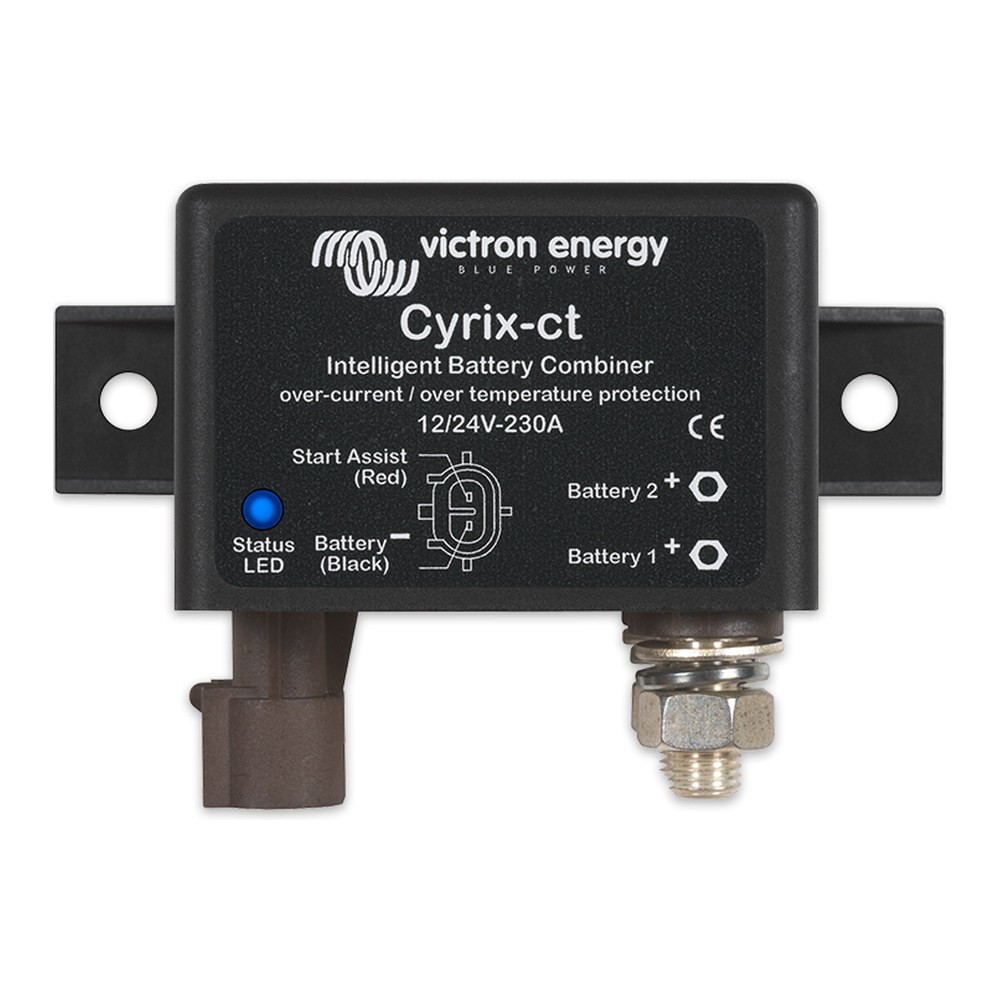

Cyrix-ct 12/24V-230A is a microprocessor-controlled battery combiner that automatically connects batteries in parallel when one of them is being charged and disconnects them when the voltage drops below float level. Rated at 230 A continuous, it replaces diode isolators with virtually no voltage loss, so the alternator voltage does not need to be raised.
Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions
Cyrix-ct 12/24V-230A is a microprocessor-controlled battery combiner that automatically connects batteries in parallel when one of them is being charged and disconnects them when the voltage drops below float level. Rated at 230 A continuous, it replaces diode isolators with virtually no voltage loss, so the alternator voltage does not need to be raised.
The Cyrix Battery Combiner is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged), and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). Cyrix Battery Combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased.
| Continuous current | 230 A |
|---|---|
| Cranking current rating | 500 A |
| Connect voltage | From 13 to 13.8V and 26 to 27.6V with intelligent trend detection |
| Disconnect voltage | From 11 to 1.8V and 22 to 25.7V with |
| Current consumption, open | 4 mA |
| Current consumption, closed (12 V) | 320 mA |
| Current consumption, closed (24 V) | 180 mA |
| Start assist | Yes (Cyrix remains engaged during 30 seconds) |
| Battery terminals | M8 bolts |
| Start assist terminal | Two pole connector |
| Battery negative terminal | Two pole connector |
| Control cable included | Yes |
| Protection category | IP54 |
| Weight | 0.27 kg |
| Height | 65 mm |
| Width | 100 mm |
| Depth | 50 mm |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
Compatibility is calculated automatically from the manufacturers’ technical data and is for information only. For complex systems, we recommend having the configuration checked by a consultant before ordering. Details in the Terms and conditions
