€88 Tax excluded

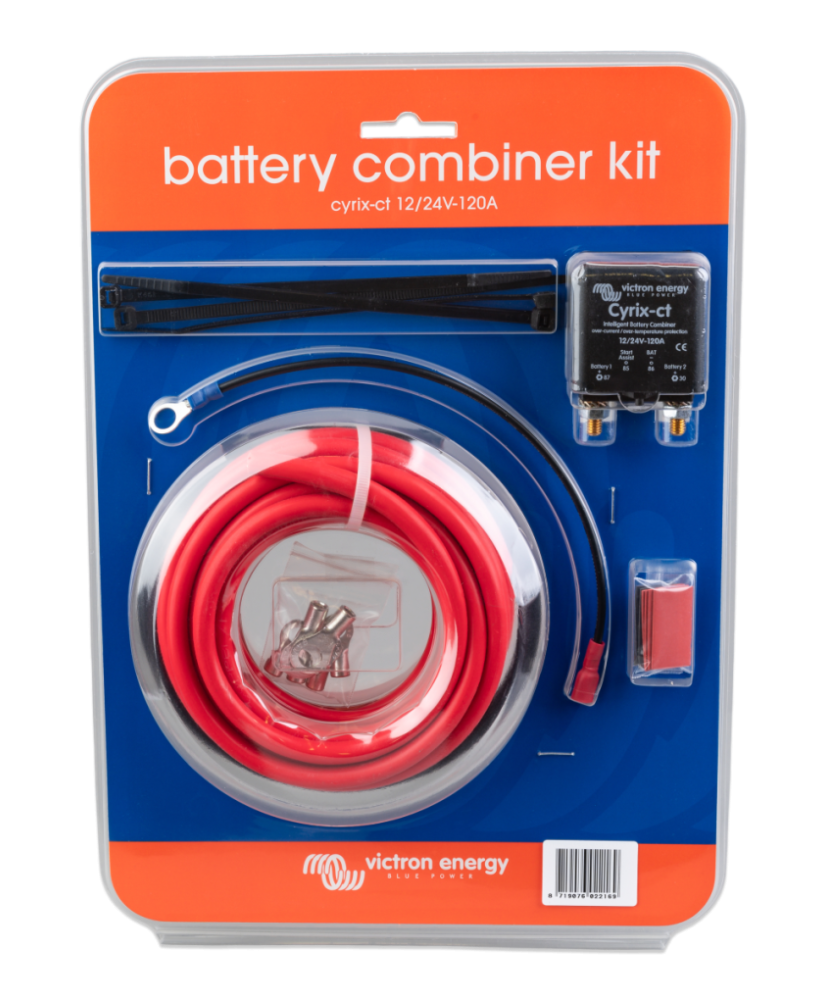

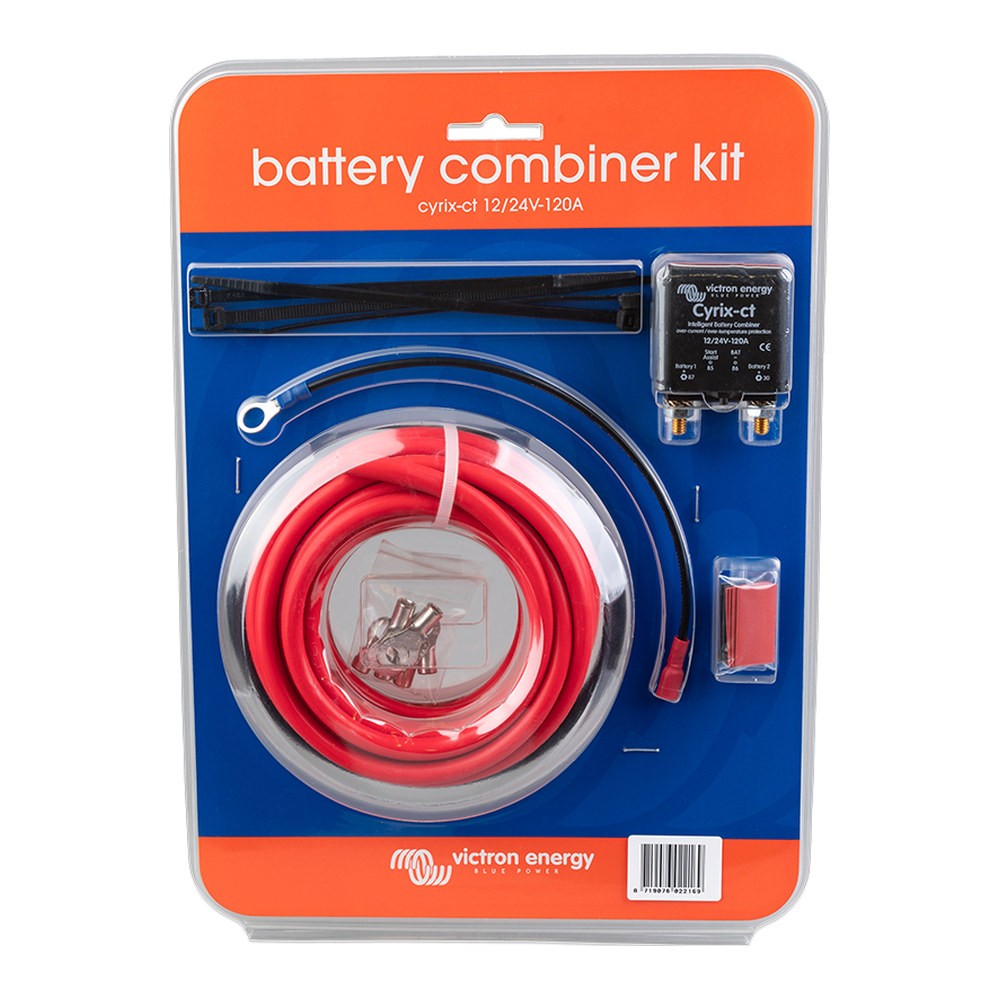

The Cyrix-ct 12/24V-120A Battery Combiner Kit is designed for adding a second or third battery to a car, boat, RV or other vehicle. All batteries are charged from the engine electrical system, while the starter battery is isolated when charging stops, so the engine can still be started.
Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions
The Cyrix-ct 12/24V-120A Battery Combiner Kit is designed for adding a second or third battery to a car, boat, RV or other vehicle. All batteries are charged from the engine electrical system, while the starter battery is isolated when charging stops, so the engine can still be started.
This Battery Combiner Kit is for adding a 2nd or 3rd battery system in your car, boat, RV or any other vehicle. It utilizes the simplest and most advanced technology to keep all your batteries charged using the engine’s electrical system, but isolates the starting battery when charging ceases so you never get stranded.
| Nominal battery voltage | 12V or 24V |
|---|---|
| Continuous current | 120 A |
| Cranking current rating | 180 A |
| Connect voltage | From 13 to 13.8V and 26 to 27.6V with intelligent trend detection |
| Disconnect voltage | From 11 to 1.8V and 22 to 25.7V with intelligent trend detection |
| Current consumption, open | 4 mA |
| Current consumption, closed (12 V) | 220 mA |
| Current consumption, closed (24 V) | 120 mA |
| Start assist | Yes (Cyrix remains engaged during 30 seconds) |
| Battery terminals | M6 bolts |
| Start assist terminal | Faston tab 6.3 mm |
| Battery negative terminal | Faston tab 6.3 mm |
| Cables and lugs included | Yes |
| Protection category | IP54 |
| Weight | 0.1 kg |
| Height | 46 mm |
| Width | 46 mm |
| Depth | 89 mm |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the manufacturer’s datasheet.
Compatibility is calculated automatically from the manufacturers’ technical data and is for information only. For complex systems, we recommend having the configuration checked by a consultant before ordering. Details in the Terms and conditions
