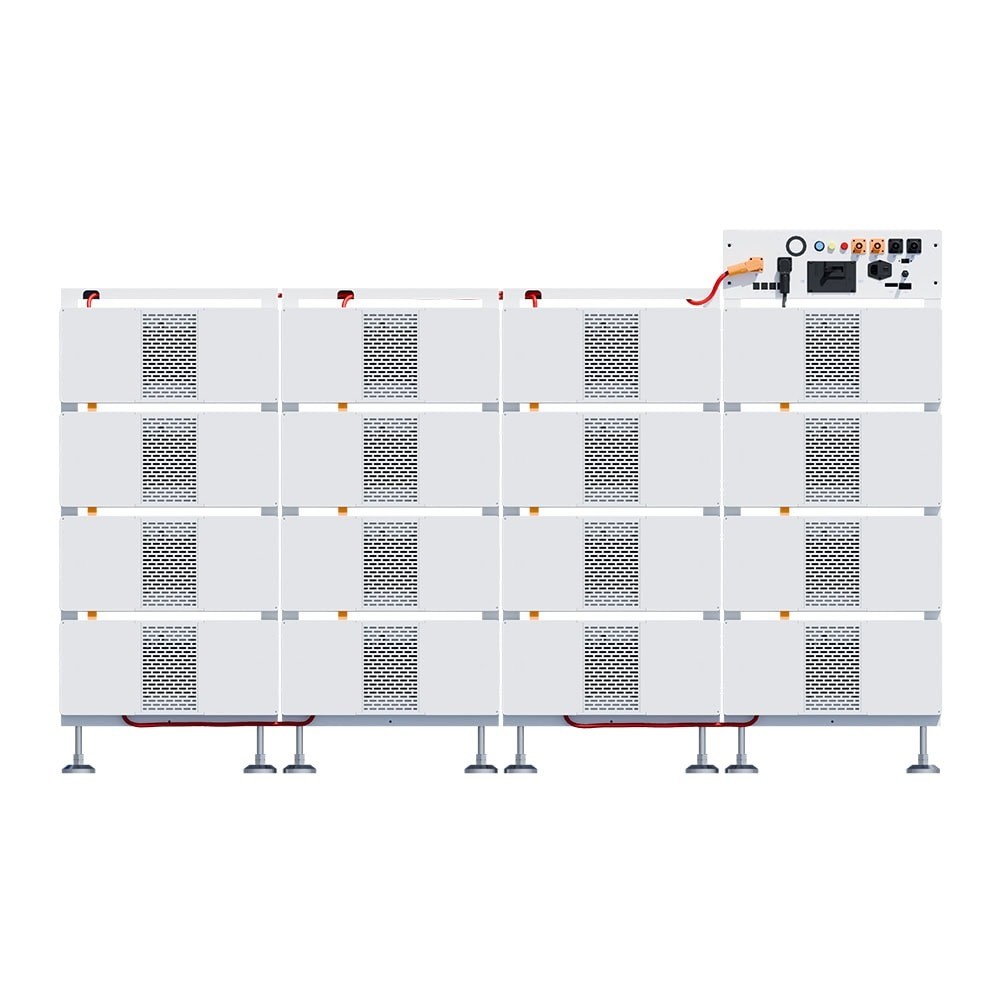

Deye rack and accessories for BOS-B Pro-A3, 4 columns, BOS-B-AP

BOS-B-AP - Rack and connection accessories for BOS-B Pro-A3

BOS-B-AP is the base box and accessory kit of the Deye BOS-B Pro-A3 system: four bases for the module columns, leveling feet, top covers and the connection cables between columns, PDU, packs and PCS. It comes as BOS-B-AP-A for 100 and 125 kW PCS units and BOS-B-AP-B for the 80 kW PCS.

Main features:

• Bases: 4 bases, one per column
• Leveling feet: 16 pieces
• Top covers: 3 pieces
• Antenna: 4G, external
• Version A: BOS-B-AP-A for 100 and 125 kW PCS
• Version B: BOS-B-AP-B for 80 kW PCS

Each battery column can hold at most 4 stacked packs, and the system allows up to 4 columns (2, 3 and 4 columns are about 1067, 1608 and 2150 mm wide). The kit contains 24 M5x14 bolts, two terminal resistors (A and B), an ESS connector set, three communication cables and three power cables for connecting the columns, four ground wires, cables between the PDU and the battery pack and an auxiliary power cable for the PDU.

In addition, the BOS-B-AP-A version includes cables for the SUN-100K and SUN-125K-PCS01HP3 PCS units (positive 1 AWG cables of 1000, 2500 and 3000 mm, negative cables of 240 and 3000 mm, a 10 AWG PE cable of 600 mm), and the BOS-B-AP-B version includes two positive and two negative cables for the SUN-80K-SG02HP3-EU-EM6 PCS.
