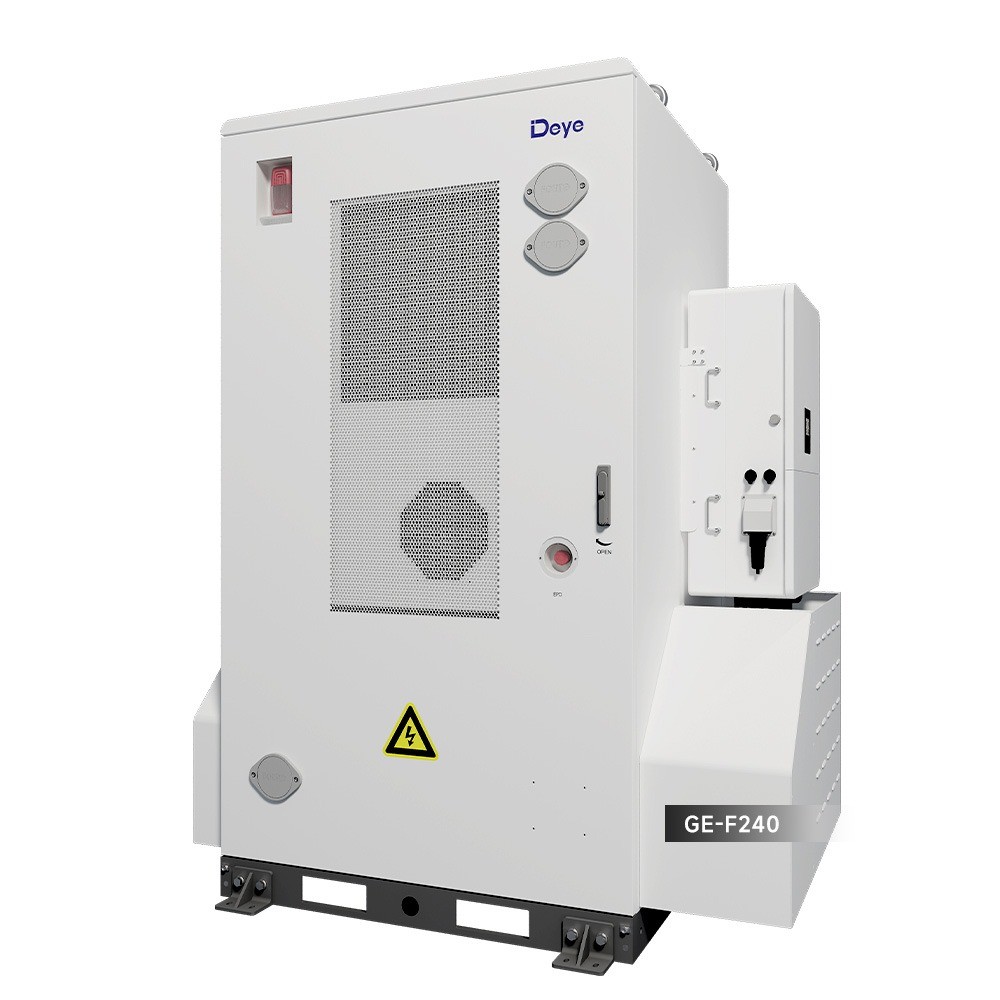

Deye energy storage system, 241.15 kWh, HV, IP55, GE-F240-BC-2-A3

Deye energy storage system, 241.15 kWh, HV, IP55, GE-F240-BC-2-A3

768 V
€50,544 Tax included

€42,120 Tax excluded

GE-F240-BC-2-A3 is an outdoor HV battery cabinet with 15 LiFePO4 modules of 314 Ah in series, a nominal energy of 241.15 kWh and a nominal voltage of 768 V. It has IP55 protection, C4-M anti-corrosion level, air cooling, a cycle life of at least 8000 cycles and a weight of approximately 2610 kg.

Reference GE-F240-BC-2-A3

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

GE-F240-BC-2-A3 - Outdoor HV storage cabinet, 241.15 kWh

GE-F240-BC-2-A3 is an outdoor high voltage battery cabinet from the Deye Orion E GE-F240 series, with 15 LiFePO4 modules of 16.08 kWh in series. It has a nominal energy of 241.15 kWh, a nominal voltage of 768 V, IP55 protection and a six level safety design, from electrical isolation to fire suppression.

Main features:

  • Nominal energy: 241.15 kWh
  • Nominal voltage: 768 V
  • Voltage range: 600 ... 876 V
  • Rated DC power: 121 kW
  • Number of modules: 15 modules of 16.08 kWh in series
  • Communication: CAN, RS485, Modbus
  • Ingress protection: IP55, C4-M anti-corrosion

Safety is based on a six level design: electrical isolation, fire detection, active exhaust, explosion venting, fire suppression and thermal isolation. The cabinet has an interface for aerosol or water fire suppression and CO gas detection, and smart air cooling allows operation without derating up to 45 °C, with a cell temperature difference of at most 6 °C.

The outer wall of the cabinet has a preset bracket position for the Deye SUN-50 to 125K hybrid inverter, which is selected separately. Up to 10 units can be connected in parallel on the AC side or on the DC battery side, and the cycle life is at least 8000 cycles at 25 ± 2 °C and 0.5P, down to 70 % of capacity.

Technical specifications

Cell chemistryLiFePO4
Module capacity314 Ah
Module nominal voltage51.2 V
Module energy16.08 kWh
Battery modules in series15
System energy241.15 kWh
System usable energy241.15 kWh (100 % DoD)
System nominal voltage768 V
System operating voltage600 ... 876 V
Rated DC power121 kW
Fire protection systemInterface for aerosol or water extinguishing, CO gas detection, active exhaust and explosion venting
Cooling methodIntelligent air cooling
Communication portCAN, RS485
Communication protocolCAN2.0, Modbus 485
Operating temperature-30 ... 55 °C (reducere de putere peste 45 °C)
Storage temperature0 ... 35 °C
Humidity5 ... 95 % RH, non-condensing
Maximum altitude3000 m
Ingress protectionIP55
Anti-corrosion levelC4-M, customisable up to C5
InstallationFloor mounted
Cycle life≥ 8000 (25 ± 2 °C, 0.5P, EOL 70 %)
CertificationUN38.3, CE, IEC62619, IEC62477, IEC62933-5-2, UL9540A
Dimensions (W x D x H)1303 x 1240 x 2405.5 mm
Approximate weight2610 kg

Data sheet

Reference
GE-F240-BC-2-A3
MPN
GE-F240-BC-2-A3
Product type
Battery
Battery chemistry
LiFePO4 (lithium iron phosphate)
Battery voltage
HV (high voltage)
Nominal voltage (exact)
768 V
Nominal capacity
314 Ah
Capacity class
20+ kWh
Nominal energy
241.15 kWh
Built-in BMS
Yes
Communication interfaces
CAN-bus
Modbus
RS485
Dimensions (H x W x D)
2405.5 x 1303 x 1240 mm
Weight
2610 kg
Ingress protection (IP)
IP55
Operating temperature
-30 ... 55 °C (derating above 45 °C)
Max. relative humidity
95 %
Standards and compliance
UN38.3, CE, IEC62619, IEC62477, IEC62933-5-2, UL9540A

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
