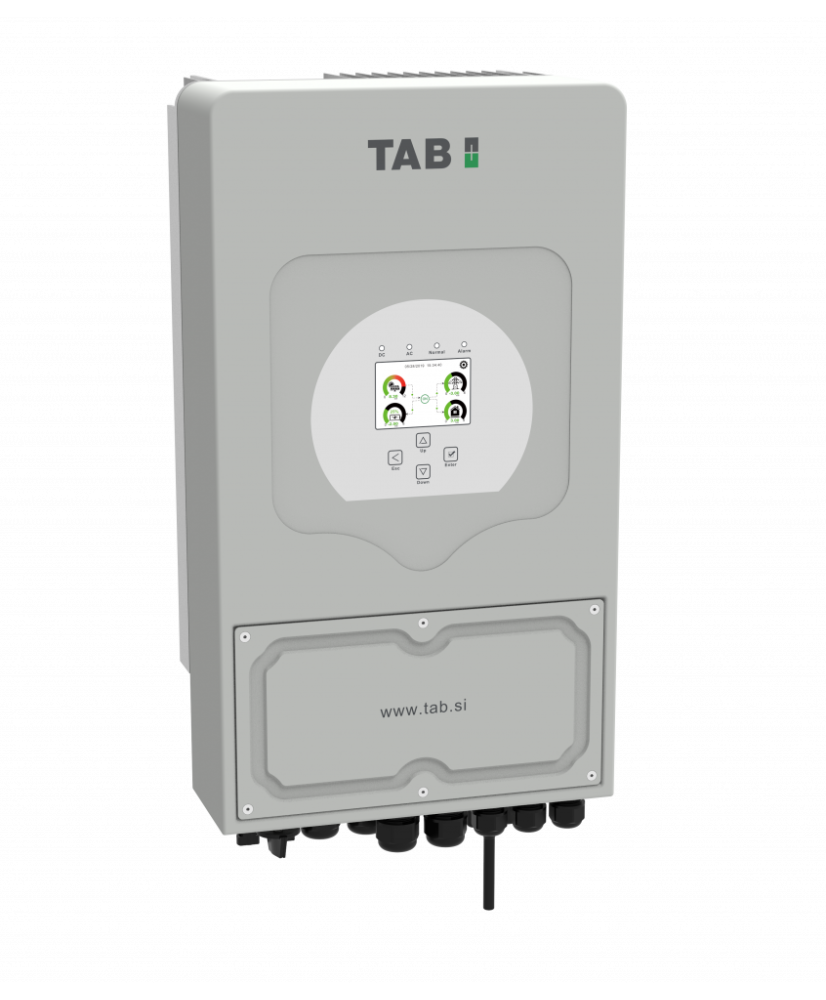

6 kW TAB hybrid inverter, single-phase, 48 V, with Eastron energy meter, TAB-3014972
€1,030
Tax included
€858 Tax excluded
The TAB 1P 6kW hybrid inverter is a smart solution for managing solar energy at home or in small businesses. It helps you use the energy from solar panels, batteries or the electrical grid in the most efficient way. Designed for easy installation and long-term use, this inverter is both reliable and practical.
Hybrid inverter TAB 1P 6kW
The TAB 1P 6kW hybrid inverter is a smart solution for managing solar energy at home or in small businesses. It helps you use the energy from solar panels, batteries or the electrical grid in the most efficient way. Designed for easy installation and long-term use, this inverter is both reliable and practical.
Main features:
- Battery compatibility: Works with both lithium-ion and lead-acid batteries (40-60V), providing flexibility in system design.
- Powerful charging: Can charge or discharge batteries with a high current of up to 135A.
- Solar Input: Accepts up to 7800W of DC power and uses two independent MPPTs to make the most of available sunlight.
- Powerful Power: Provides 6000W of clean AC power, enough to power essential devices and appliances.
- High efficiency: With a maximum efficiency of 97.6% and an MPPT efficiency of 99.9%, energy losses are kept to a minimum.
- Smart Protection: Includes overvoltage, undervoltage, short circuit, and surge protection to keep your system safe.
- Connectivity: Equipped with RS485 and CAN communication ports for easy connection to battery management systems and monitoring devices.
- Durable design: Compact and lightweight, with an IP65 protection rating for outdoor or indoor use.
This product also includes an Eastron single-phase Energy meter
Data sheet
- Reference
- TAB-3014972
- Product type
- Inverter
- Inverter type
- Hybrid (built-in MPPT)
Off-grid (no grid) - Phases
- Single-phase
- Power class
- 3.5-6 kW
- Continuous output power (W, 25 °C)
- 6000 W
- Peak power
- 12000 W
- Maximum efficiency
- 97.6 %
- Output waveform
- Pure sine wave
- Battery voltage
- 48 V
- DC input voltage range
- 40-60 V
- Max. charge current
- 135 A
- Max. PV input voltage
- 500 V
- Number of MPPT trackers
- 2
- MPPT voltage range
- 150-425 V
- AC output voltage
- 220/230 V
- Output frequency
- 50/60 Hz
- Max. AC input current
- 40 A
- Parallel operation
- Yes
- Communication interfaces
- CAN-bus
RS485
Wi-Fi - Protections
- Output short-circuit, overload, overtemperature, PV reverse polarity, overcurrent, earth leakage
- Dimensions (H x W x D)
- 580 x 330 x 232 mm
- Ingress protection (IP)
- IP65
- Operating temperature
- -40 ... 60 °C
- Max. relative humidity
- 100 %
- Standards and compliance
- IEC/EN 62109-1, IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-2
- Warranty
- 5 years
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
