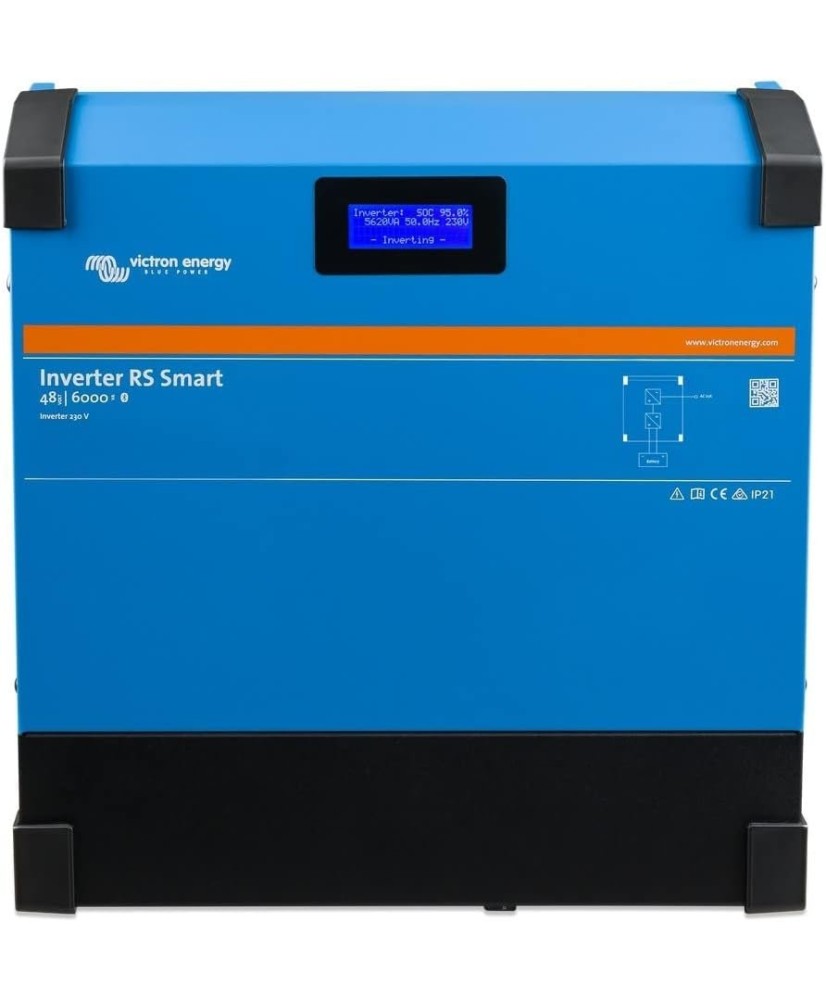

Inverter RS 48/6000 230V Smart - 48V 6 kVA inverter with display and Bluetooth
Inverter RS 48/6000 230V Smart is a 48V, 6 kVA inverter with high-frequency technology, weighing only 11 kg, with high efficiency, low standby power and very quiet operation. Battery and inverter data can be read on the built-in display or via Bluetooth in VictronConnect, and the VE.Can port allows connection to a GX device.
Main features:
- Battery voltage: 48 V (38-62 V)
- Continuous power: 4800-5300 W at 25 °C, 4500 W at 40 °C
- Peak power: 9000 W (3 s), 7000 W (4 min)
- Maximum efficiency: 96.5% at 1 kW, zero-load power 20 W
- Parallel and three-phase: up to 12 units in parallel, 4 per phase
- Connectivity: Bluetooth, VE.Direct, VE.Can
The Inverter RS Smart is a powerful 48 VDC, 6 kVA 230 VAC inverter. It features a modern design and high frequency technology, weighing only 11kg and has excellent efficiency, low standby power, and very quiet operation.
The inverter is equipped with a display to read out battery and inverter details. These parameters can also be read out via Bluetooth by the VictronConnect app. In addition to this, the inverter has a VE.Can Port, for connection to a GX device for system monitoring.
Technical specifications
| Nominal battery voltage | 48 V |
|---|
| DC input voltage range | 38 … 62 V |
|---|
| AC output voltage | 230 V |
|---|
| Frequency | 50 Hz |
|---|
| Maximum continuous inverter current | 25 A |
|---|
| Continuous output power at 25 °C (W) - A | 4800 W |
|---|
| Continuous output power at 25 °C (W) - B | 5300 W |
|---|
| Continuous output power at 40 °C | 4500 W |
|---|
| Continuous output power at 65 °C | 3000 W |
|---|
| Peak power (3 s) | 9000 W |
|---|
| Peak power (4 min) | 7000 W |
|---|
| Short-circuit current | 50 A |
|---|
| Maximum efficiency | 96.5 % |
|---|
| Zero load power | 20 W |
|---|
| Charge voltage range | 36 … 60 V |
|---|
| Absorption charge voltage | 57.6 V |
|---|
| Float charge voltage | 55.2 V |
|---|
| Maximum AC-coupled PV power | 5000 W |
|---|
| Maximum charge current | 88 A |
|---|
| Battery temperature sensor | Included |
|---|
| Battery voltage sense | Yes |
|---|
| Parallel and 3-phase operation | 12 parallel units supported, 3 phase supports 4 units per phase |
|---|
| Programmable relay | DC rating: 4A up to 35VDC and 1A up to 70VDC |
|---|
| Protections | Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output |
|---|
| Communication port | Bluetooth, VE.Direct, VE.Can |
|---|
| Bluetooth | Yes, -4dBm, 2402 - 2480 MHz |
|---|
| General-purpose port | Yes, 2x |
|---|
| Remote on/off | Yes |
|---|
| Fully programmable | Yes |
|---|
| Operating temperature range | -40 … 65 °C |
|---|
| Cooling | Yes |
|---|
| Maximum altitude | 2000 m |
|---|
| Maximum humidity | 95 % |
|---|
| AC connection | Screw terminals 10 mm² (8 AWG) |
|---|
| Battery connection | M8 bolts |
|---|
| Colour | Blue (RAL 5012) and Black (RAL 9017) |
|---|
| Material | Steel |
|---|
| Protection category | IP21 |
|---|
| Weight | 11 kg |
|---|
| Height | 425 mm |
|---|
| Width | 440 mm |
|---|
| Depth | 125 mm |
|---|
| Safety | EN-IEC 60335-1, EN-IEC 62109-1, EN-IEC 62109-2 |
|---|
| Emission and immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3 |
|---|
