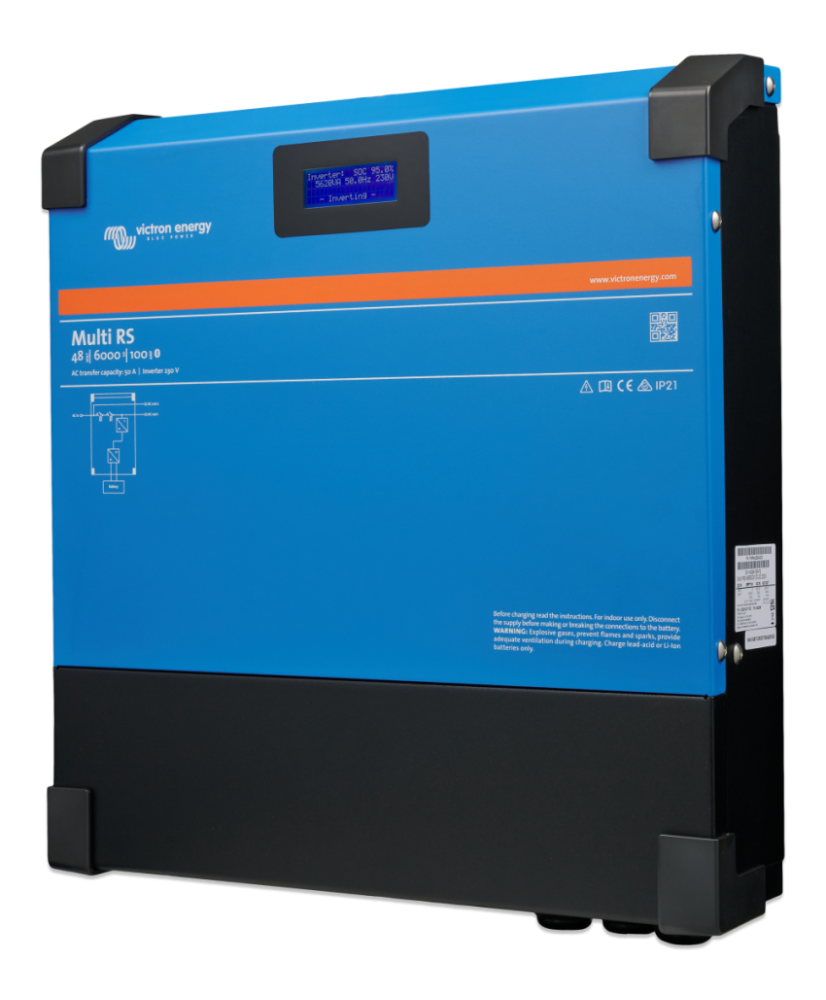

Multi RS 48/6000/100-50 230V Victron Energy

Name: Multi RS 48/6000/100-50 230V Victron Energy
Brand: VICTRON ENERGY
SKU: PMR482604000
Price: 1476 EUR
Availability: PreOrder

€1,476.00

Tax excluded

Multi RS 48/6000/100-50 230V is a lightweight, high-frequency 48V, 6 kVA inverter/charger for stationary and mobile applications, the non-solar variant of the Multi RS Solar. It supports Dynamic ESS, can be paired with another solar inverter, and all parameters can be monitored on the built-in display or in the VictronConnect app.

Brand : VICTRON ENERGY

Multi RS 48/6000/100-50 230V - 48V inverter/charger 6 kVA high-frequency

Main features:

Battery voltage: 48 V (38-62 V)
Rated power: 6000 VA at 25 °C, 4500 W at 40 °C
Operating modes: backup, off-grid and generator
Charge current: 88 A
Transfer switch: 50 A
Connectivity: Bluetooth, VE.Direct, VE.Can

The Multi RS 48/6000 is a lightweight, high-frequency 48V/6kVA inverter/charger suitable for both stationary and mobile applications. It is the non-solar variant of our Multi RS Solar, and does not include built-in solar charge controllers.

For stationary applications, it supports Dynamic ESS functionality while giving you the flexibility to pair it with a different type or size of solar inverter. It can also be used as a direct grid connection without batteries, making it easy to start simple and add storage later.

For mobile applications, the Multi RS offers a lightweight solution that keeps the batteries fully charged, and when excess energy is available, it can feed that energy back into the grid.

Monitor all parameters via the integrated display or the VictronConnect app, which also provides historical trend data, quick firmware updates, and easy configuration tools. Connect to a Cerbo GX for advanced ESS functions, including zero-export to prevent grid feed-in and backup mode to power critical loads during outages.

Technical specifications

PowerControl	Yes
PowerAssist	Yes
Parallel operation	No
Three-phase operation	Yes
Number of AC inputs	1
Transfer switch current rating	50 A
Nominal battery voltage	48 V
DC input voltage range	38 … 62 V
AC output voltage	230 V
Maximum continuous inverter current	25 A
Frequency	50
Continuous output power at 25 °C (VA)	6000 VA
Continuous output power at 25 °C (W) - A	4600 W
Continuous output power at 25 °C (W) - B	5200 W
Continuous output power at 40 °C	4500 W
Continuous output power at 65 °C	3000 W
Peak power (3 s)	9000 W
Peak power (4 min)	7000 W
Short-circuit current	45 A
Maximum efficiency	96.5 %
Zero load power	20 W
Low battery shutdown	37.2 V
Low battery restart	43.6 V
Charge voltage range	36 … 60 V
Absorption charge voltage	57.6 V
Float charge voltage	55.2 V
Maximum battery charge current	88 A
Battery temperature sensor	Included
Battery voltage sense	Yes
Programmable relay	DC rating: 4A up to 35VDC and 1A up to 70VDC
Protections	Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output
Communication port	VE.Direct, VE.Can, Bluetooth
Bluetooth	Yes, -4dBm, 2402 - 2480 MHz
General-purpose communication port	Yes, 2x
Remote on/off	Yes
Fully programmable ports	Yes
Operating temperature range	-40 … 65 °C
Fan-assisted cooling	Yes
Maximum altitude	2000 m
Maximum humidity	95 %
Maximum AC input current	50 A
AC input voltage range	187 … 265 VAC
AC input frequency range	45 … 65 Hz
Pollution degree	2
Auxiliary output	Yes
Number of AC outputs	2
AC connection terminals	Screw terminals 10 mm² (8 AWG)
Battery connection	M8 bolts
Colour	Blue (RAL 5012) and Black (RAL 9017)
Material	Steel
Protection category	IP21
Weight	11.2 kg
Height	462 mm
Width	425 mm
Depth	127 mm
Safety	EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2, IEC 62040, IEC 62477
Emission and immunity	EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
