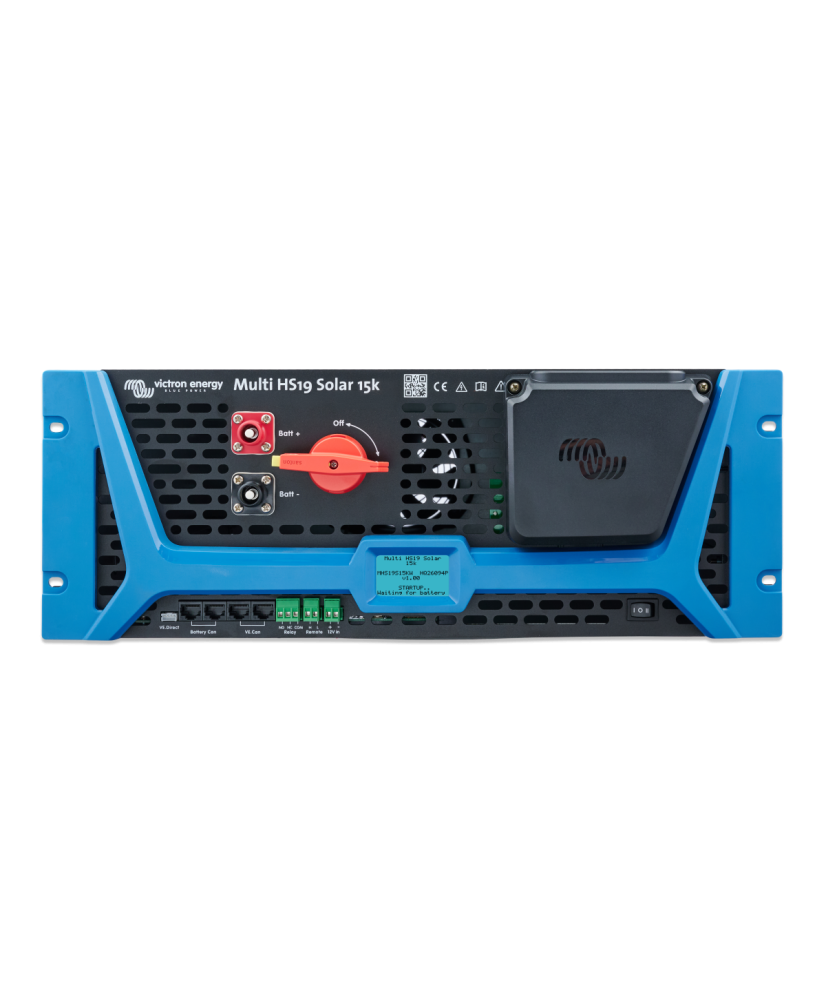

Multi HS19 Solar 15k - High-voltage inverter/charger with MPPT
Multi HS19 Solar 15k is an inverter/charger for high-voltage batteries of 650-1000 V, with a built-in MPPT solar charger and 400 V AC output. It offers 15,000 VA continuous power, a maximum efficiency of 98% and communication via VE.Can, BMS-Can, VE.Direct and Bluetooth, and is intended for high-power storage systems. It suits off-grid, peak-shaving, backup or feed-in applications.
Main features:
- Battery voltage: 800 V (650-1000 V)
- AC output: 400 V AC
- Continuous power: 15,000 VA
- MPPT trackers: 4 x 8 kW, 100-600 V, 32 kW PV in total
- Maximum efficiency: 98%
- Communication: VE.Can, BMS-Can, VE.Direct, Bluetooth
The Multi HS19 Solar 15k is an inverter/charger with an integrated MPPT solar charge controller, in a 19″ format (482.6 mm wide), for high-voltage batteries with a nominal voltage of 800 V. It provides 15,000 VA of continuous power at a 400 V AC output (50 Hz) and supports PowerControl and PowerAssist.
- Battery DC input voltage range: 650-1,000 V; maximum battery charge current: 41 A
- Continuous power: 15,000 VA / 15,000 W at 40 °C; peak power (3 s): 22,000 W
- Maximum efficiency: 98 %; zero-load power: 50 W
- PV input: MPPT operating range 100-600 V, maximum PV voltage 600 V, startup voltage 300 V, maximum PV operating current 13.5 A
- AC input: maximum 32 A, 45-65 Hz; 2 AC outputs
- Communication: VE.Can, BMS-Can, VE.Direct, Bluetooth; remote on/off
- Protection category: IP20; weight: 26.5 kg; dimensions (H × W × D): 177.8 × 482.6 × 700 mm
- Warranty: 60 months
Technical specifications
| PowerControl | Yes |
|---|
| PowerAssist | Yes |
|---|
| Parallel operation | No |
|---|
| Three-phase operation | No |
|---|
| Includes MPPT | Yes |
|---|
| Number of AC inputs | 1 |
|---|
| Transfer switch current rating | 32 A |
|---|
| Nominal battery voltage | 800 V |
|---|
| DC input voltage range | 650 … 1000 V |
|---|
| AC output voltage | 400 V |
|---|
| Maximum continuous inverter current | 22 A |
|---|
| Frequency | 50 |
|---|
| Continuous output power at 25 °C (VA) | 15000 VA |
|---|
| Continuous output power at 40 °C | 15000 W |
|---|
| Peak power (3 s) | 22000 W |
|---|
| Short-circuit current | 32 A |
|---|
| Maximum efficiency | 98 % |
|---|
| Zero load power | 50 W |
|---|
| Maximum DC voltage | 600 V |
|---|
| Start-up voltage | 300 V |
|---|
| MPPT operating voltage range | 100 … 600 V |
|---|
| Maximum PV operating current | 13.5 A |
|---|
| Maximum PV short-circuit current (reverse polarity) | 13.5 A |
|---|
| Maximum solar charge power | 32000 W |
|---|
| Maximum PV short-circuit current | 13.5 A |
|---|
| Charge voltage range | 650 … 1000 V |
|---|
| Maximum battery charge current | 41 A |
|---|
| Battery voltage sense | Yes |
|---|
| Protections | Overcurrent, Solar earth leakage |
|---|
| Communication port | VE.Can, BMS-Can, VE.Direct, Bluetooth |
|---|
| Bluetooth | Yes, -4dBm, 2402 - 2480 MHz |
|---|
| Remote on/off | Yes |
|---|
| Fully programmable ports | No |
|---|
| Operating temperature range | ≤ 60 °C |
|---|
| Fan-assisted cooling | Yes |
|---|
| Maximum altitude | 2000 m |
|---|
| Maximum humidity | 95 % |
|---|
| Maximum AC input current | 32 A |
|---|
| AC input frequency range | 45 … 65 Hz |
|---|
| Pollution degree | 2 |
|---|
| Auxiliary output | Yes |
|---|
| Number of AC outputs | 2 |
|---|
| AC connection terminals | Rigid cable 0.2mm² - 10mm² / Flexible cable 0.25mm² - 6mm² |
|---|
| Battery connection | Amphenol SurLok 5.7mm |
|---|
| Colour | Blue (RAL 5012) and Black (RAL 9017) |
|---|
| Material | Steel |
|---|
| Protection category | IP20 |
|---|
| Weight | 26.5 kg |
|---|
| Height | 177.8 mm |
|---|
| Width | 482.6 mm |
|---|
| Depth | 700 mm |
|---|
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1 |
|---|
| Emission and immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3 |
|---|
