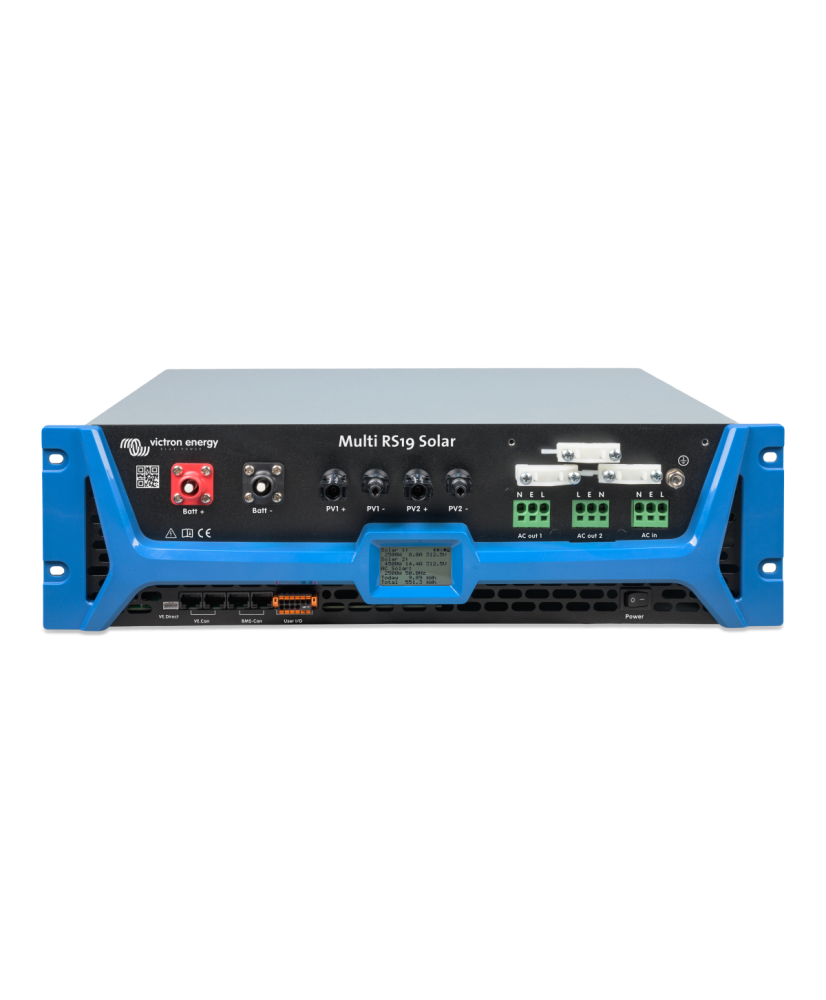

Multi RS19 Solar 48/6000/100-450/100 - 48V inverter/charger with 2 MPPT, 19-inch format
Multi RS19 Solar 48/6000/100-450/100 is a lightweight, high-frequency 48V, 6 kVA inverter/charger with two independent 65-450 V MPPT trackers for 6 kWp of total PV capacity. The 19-inch variant fits into a standard battery rack and suits both grid-connected systems, including Dynamic ESS, and off-grid applications.
Main features:
- Battery voltage: 48 V (38-62 V)
- Rated power: 6000 VA at 25 °C
- MPPT trackers: 2 independent, 65-450 V, 3000 W each
- Operating modes: hybrid, backup, off-grid and generator
- Charge current: 88 A
- Connectivity: Bluetooth, VE.Direct, VE.Can
The Multi RS19 Solar 48/6000/100-450/100 230V is a lightweight, high-frequency 48V/6kVA inverter/charger with two independent 3kWp PV MPPT trackers, each accepting 65-450V DC input, for 6kWp total PV capacity. It is the 19″ variant of the Multi RS Solar, made to fit into the standard 19″ battery rack for a more compact installation, and is suitable for both grid-connected and off-grid applications.
For grid-connected applications, it supports Dynamic ESS functionality while offering the flexibility to pair it with a different type or size of solar inverter, as excess PV capacity can be added via AC-coupled PV inverters whose output is automatically managed by the Multi RS's frequency shift power control. It can also be used as a direct grid connection without batteries, making it easy to start simple and add storage later.
For off-grid applications, the Multi RS offers a lightweight solution that keeps the batteries fully charged and supplies additional power when demand is high.
With the high-frequency technology, it delivers exceptional efficiency in a quiet, lightweight package with low standby power consumption.
All parameters can be monitored via the integrated display or the VictronConnect app, which also provides historical trends. It can be connected to a GX device, such as a Cerbo GX, for advanced ESS functions, like zero-export to block grid feed-in and backup mode to power critical loads during outages.
Technical specifications
| PowerControl | Yes |
|---|
| PowerAssist | Yes |
|---|
| Parallel operation | No |
|---|
| Three-phase operation | Yes |
|---|
| Includes MPPT | Yes |
|---|
| Number of AC inputs | 1 |
|---|
| Transfer switch current rating | 50 A |
|---|
| Nominal battery voltage | 48 V |
|---|
| DC input voltage range | 38 … 62 V |
|---|
| AC output voltage | 230 V |
|---|
| Maximum continuous inverter current | 25 A |
|---|
| Frequency | 50 |
|---|
| Continuous output power at 25 °C (VA) | 6000 VA |
|---|
| Continuous output power at 25 °C (W) - A | 4800 W |
|---|
| Continuous output power at 25 °C (W) - B | 5300 W |
|---|
| Continuous output power at 40 °C | 4500 W |
|---|
| Continuous output power at 65 °C | 3000 W |
|---|
| Peak power (3 s) | 9000 W |
|---|
| Peak power (4 min) | 7000 W |
|---|
| Short-circuit current | 45 A |
|---|
| Maximum efficiency | 96.5 % |
|---|
| Zero load power | 20 W |
|---|
| Low battery shutdown | 37.2 V |
|---|
| Low battery restart | 43.6 V |
|---|
| Maximum DC voltage | 450 V |
|---|
| Start-up voltage | 120 V |
|---|
| MPPT operating voltage range | 65 … 450 V |
|---|
| Maximum PV operating current | 12 A |
|---|
| Maximum solar charge power | 6000 W |
|---|
| Maximum PV short-circuit current | 16 A |
|---|
| Earth leakage trip level | 30 mA |
|---|
| Isolation fault level | 100 kΩ |
|---|
| Charge voltage range | 36 … 60 V |
|---|
| Absorption charge voltage | 57.6 V |
|---|
| Float charge voltage | 55.2 V |
|---|
| Maximum battery charge current | 88 A |
|---|
| Battery temperature sensor | Included |
|---|
| Battery voltage sense | Yes |
|---|
| Programmable relay | DC rating: 4A up to 35VDC and 1A up to 70VDC |
|---|
| Protections | Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Solar earth leakage |
|---|
| Communication port | VE.Direct, VE.Can, Bluetooth |
|---|
| Bluetooth | Yes, -4dBm, 2402 - 2480 MHz |
|---|
| General-purpose communication port | Yes, 2x |
|---|
| Remote on/off | Yes |
|---|
| Fully programmable ports | Yes |
|---|
| Operating temperature range | -40 … 65 °C |
|---|
| Fan-assisted cooling | Yes |
|---|
| Maximum altitude | 2000 m |
|---|
| Maximum humidity | 95 % |
|---|
| Maximum AC input current | 50 A |
|---|
| AC input voltage range | 187 … 265 VAC |
|---|
| AC input frequency range | 45 … 65 Hz |
|---|
| Pollution degree | 2 |
|---|
| Auxiliary output | Yes |
|---|
| Number of AC outputs | 2 |
|---|
| AC connection terminals | Rigid cable 0.2mm² - 10mm² / Flexible cable 0.25mm² - 6mm² |
|---|
| Battery connection | Amphenol SurLok 5.7mm |
|---|
| Colour | Blue (RAL 5012) and Black (RAL 9017) |
|---|
| Material | Steel |
|---|
| Protection category | IP20 |
|---|
| Weight | 12.2 kg |
|---|
| Height | 133 mm |
|---|
| Width | 483 mm |
|---|
| Depth | 430 mm |
|---|
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2, IEC 62040, IEC 62477 |
|---|
| Emission and immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3 |
|---|
