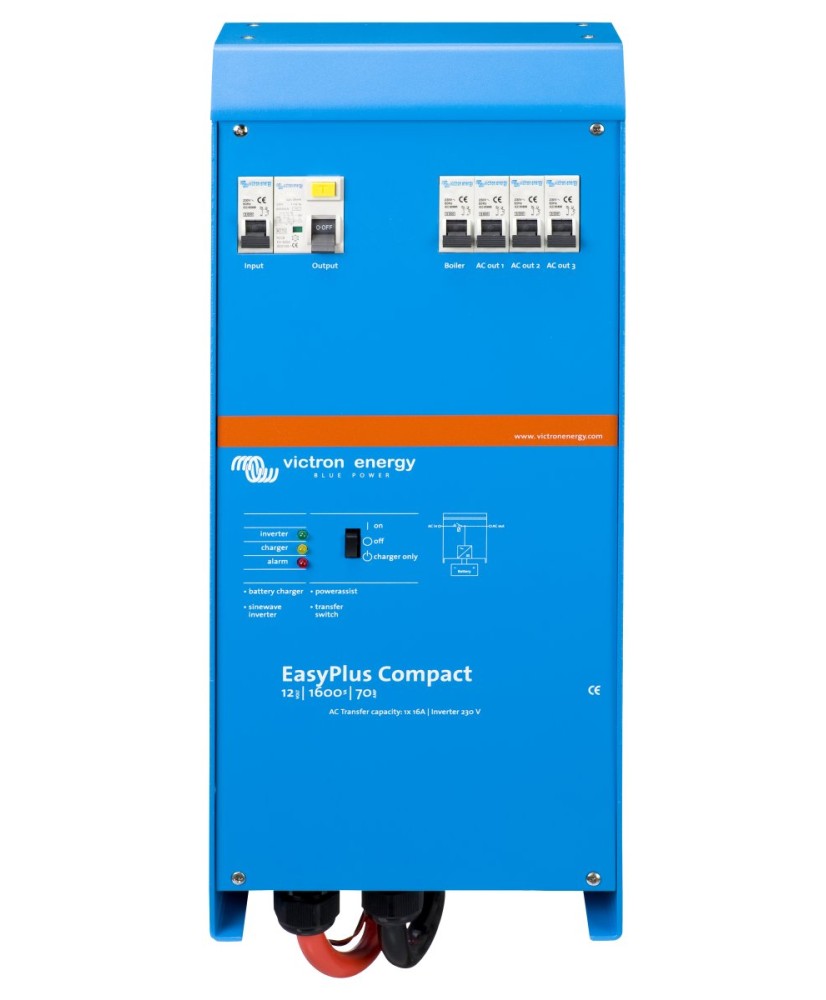

EasyPlus Compact 12/1600/70-16 230V VE.Bus - Inverter/charger system 12V 1600VA
EasyPlus Compact 12/1600/70-16 230V VE.Bus is a multifunctional energy system that combines a 1600 VA sine wave inverter, a 70 A battery charger, a high-speed AC transfer switch and AC distribution in a single compact enclosure. It is designed for users who want a complete system without the complexity of installing separate components.
Main features:
- Battery voltage: 12 V
- Inverter power: 1600 VA / 1300 W at 25 °C, peak 3000 W
- Charger: 70 A, adaptive 4-stage, plus 4 A starter battery output
- Transfer switch: 16 A, with PowerAssist
- AC outputs: 4, with 2 × 10 A and 2 × 16 A breakers
- Earth leakage protection: integrated RCD, 30 mA / 16 A
The EasyPlus is a multifunctional energy system combining a powerful sine wave inverter, a sophisticated battery charger, a high-speed AC transfer switch and AC distribution, all in a single lightweight, compact enclosure. Designed for those who want the comfort and freedom of a complete energy system, without the complexity of installing separate components.
Technical specifications
| Nominal battery voltage | 12 V |
|---|
| PowerControl | Yes |
|---|
| PowerAssist | Yes |
|---|
| Parallel operation | Yes |
|---|
| Three-phase operation | Yes |
|---|
| Number of AC inputs | 1 |
|---|
| Transfer switch current rating | 16 A |
|---|
| DC input voltage range | 9.5 … 17 VDC |
|---|
| AC output voltage | 230 VAC |
|---|
| AC output frequency | 50 Hz |
|---|
| Continuous output power at 25 °C (VA) | 1600 VA |
|---|
| Continuous output power at 25 °C (W) | 1300 W |
|---|
| Continuous output power at 40 °C | 1200 W |
|---|
| Continuous output power at 65 °C | 800 W |
|---|
| Peak power | 3000 W |
|---|
| Maximum efficiency | 93 % |
|---|
| Zero load power | 8 W |
|---|
| Zero load power in AES mode | 5 W |
|---|
| Zero load power in search mode | 2 W |
|---|
| AC input voltage range | 187 … 265 VAC |
|---|
| AC input frequency range | 45 … 65 Hz |
|---|
| Power factor | 1 |
|---|
| Absorption charge voltage | 14.4 VDC |
|---|
| Float charge voltage | 13.8 VDC |
|---|
| Storage charge voltage | 13.2 VDC |
|---|
| Charge algorithm | Adaptive, 4-stage |
|---|
| Maximum battery charge current | 70 A |
|---|
| Starter battery charge output | Yes |
|---|
| Starter battery charge current | 4 A |
|---|
| Temperature sensor | Included |
|---|
| Number of AC outputs | 4 |
|---|
| Auxiliary output | Yes |
|---|
| Programmable relay | AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC |
|---|
| Protections | Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple |
|---|
| Communication port | VE.Bus |
|---|
| Remote control terminal | On / Off / Charger only |
|---|
| Programmable via DIP switches | Yes |
|---|
| Programmable via computer | Yes |
|---|
| Operating temperature range | -20 … 50 °C |
|---|
| Fan-assisted cooling | Yes |
|---|
| Maximum humidity | 95 % |
|---|
| AC connection terminals | G-ST18i plug |
|---|
| Battery connection terminals | Red and black 1.5 meter cable |
|---|
| Remote terminal type | Screw terminal two pole |
|---|
| Relay terminal | Screw terminal 3-pole |
|---|
| VE.Bus terminal type | Two RJ45 terminals |
|---|
| Material | Aluminium |
|---|
| Colour | Blue (RAL 5012) |
|---|
| Protection category | IP20 |
|---|
| Pollution degree | 2 |
|---|
| OVC III / short-time withstand current (Icw) | 6kA 30mS |
|---|
| Weight | 11.7 kg |
|---|
| Height | 510 mm |
|---|
| Width | 214 mm |
|---|
| Depth | 110 mm |
|---|
| Safety | EN 60335-1, EN 60335-2-29 |
|---|
| Emission and immunity | EN 55014-1, EN 55014-2, EN 61000-3-3 |
|---|
| Anti-islanding standard | See our website |
|---|
