€4,675 Tax excluded

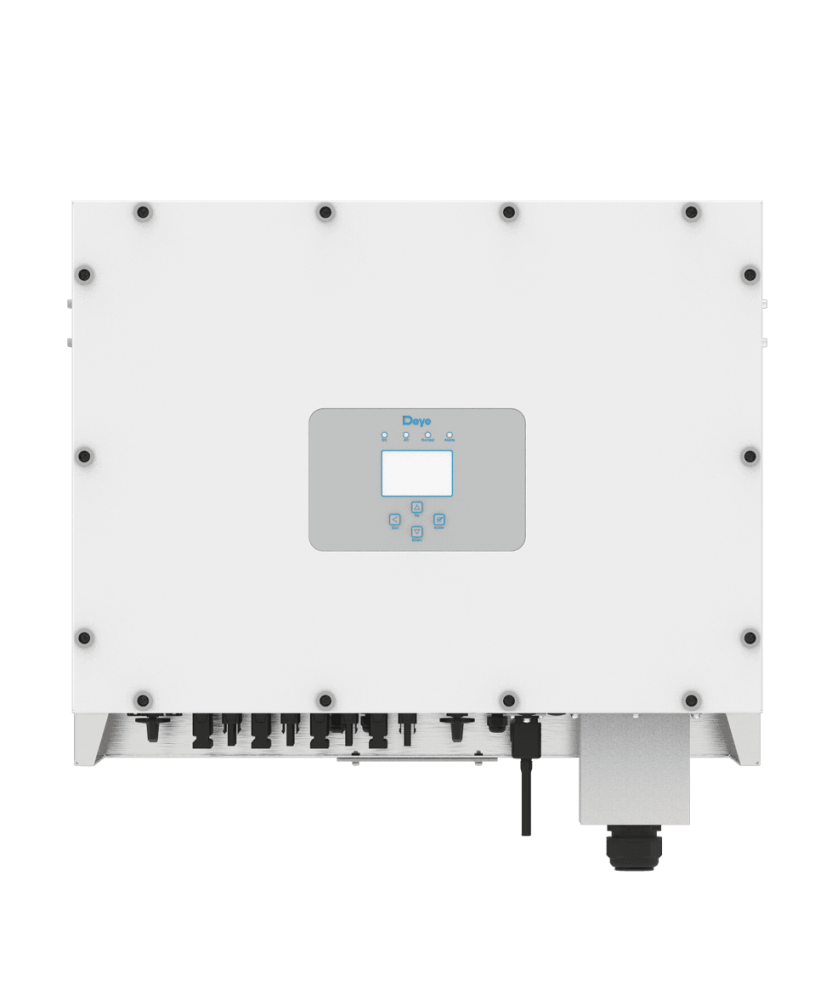

The Deye SUN-80K-G is a 80 kW three-phase on-grid inverter without battery, with 4 MPPT, a maximum input voltage of 1000 V and a maximum efficiency of 98.7 %. It accepts a PV input power of 104 kW from the solar panels, complies with EN50549-1, has IP65 protection and a built-in Wi-Fi module with a free app.
Deye SUN-80K-G is a 80 kW three-phase on-grid inverter without battery, with 4 MPPT and a maximum efficiency of 98.7 %. It connects to the power grid and converts the energy of the photovoltaic panels into alternating current in accordance with EN50549-1 for feed-in to the national grid, and is intended for high-power solar installations.
The inverter does not need a battery and is designed for feeding photovoltaic energy into the grid in accordance with EN50549-1. The PV input capacity from the solar panels is 104 kW, distributed across the 4 MPPT inputs.
It has a display and an RS485 communication port, and the built-in Wi-Fi module allows monitoring through the free app. The IP65 enclosure allows outdoor installation within a temperature range of -25 to 65 °C.
| Product code | SUN-80K-G |
|---|---|
| Product type | Inverter |
| Inverter type | On-grid (no battery) |
| Phases | Three-phase |
| Power class | 20+ kW |
| Continuous output power (W, 25 °C) | 80000 W |
| Maximum efficiency | 98.7 % |
| Output waveform | Pure sine wave |
| Battery voltage | No battery |
| Maximum PV input voltage | 1000 V |
| Number of MPPT | 4 |
| MPPT voltage range | 200-850 V |
| AC output voltage | 230/400 V |
| Output frequency | 50/60 Hz |
| Communication interfaces | Wi-Fi, Ethernet, RS485 |
| Protections | Output short circuit, over-temperature, reverse polarity on the PV input, overcurrent, earth leakage current |
| Dimensions (height x width x depth) | 575 x 700 x 297 mm |
| Weight | 60 kg |
| Ingress protection (IP) | IP65 |
| Operating temperature | -25 ... 65 °C |
| Maximum relative humidity | 100 % |
| Standards and compliance | IEC/EN 62109-1, IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-2 |
| Maximum PV input power | 104 kW |
| Grid standard | EN50549-1 |
| Display | Yes |
| Wi-Fi module | Built in, with free app |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
Compatibility is calculated automatically from the manufacturers’ technical data and is for information only. For complex systems, we recommend having the configuration checked by a consultant before ordering. Details in the Terms and conditions
