€661 Tax excluded

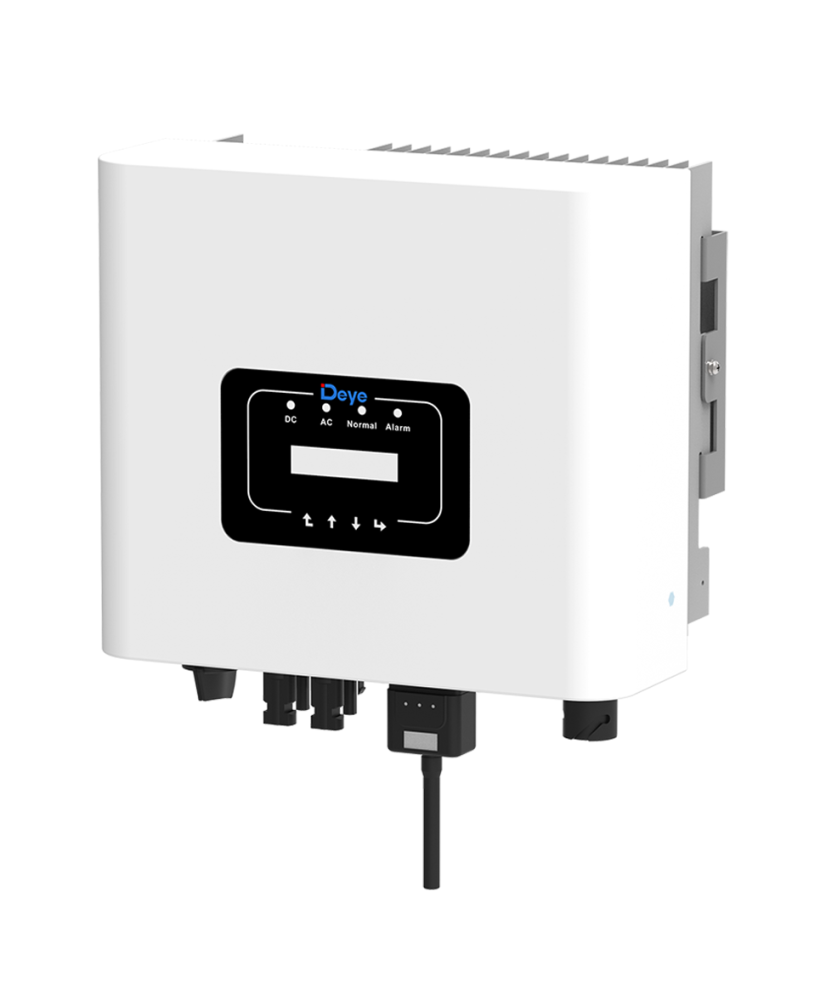

The SUN-5K-G is a single-phase Deye grid-tied inverter (without battery) with a continuous output power of 5 kW, 2 MPPT, Wi-Fi, Ethernet, RS485 communication and an IP65 protection rating. It converts the direct current of the photovoltaic panels into alternating current fed into the grid.
SUN-5K-G is a single-phase grid-tied inverter (without battery) from Deye, with a continuous output power of 5 kW and 2 MPPT. It converts the direct current produced by the photovoltaic panels into alternating current that is fed directly into the grid, and is intended for grid-connected photovoltaic systems.
The single-phase string inverter converts the DC power of the solar panels into AC power that can be fed directly into the grid.
| Product code | SUN-5K-G |
|---|---|
| Product type | Inverter |
| Inverter type | Grid-tied (without battery) |
| Phases | Single-phase |
| Power class | 3.5-6 kW |
| Continuous output power (W, 25 °C) | 5000 W |
| Maximum efficiency | 97.5 % |
| Output waveform | Pure sine wave |
| Battery voltage | No battery |
| Maximum panel input voltage | 550 V |
| Number of MPPTs | 2 |
| MPPT voltage range | 70-500 V |
| AC output voltage | 220/230 V |
| Output frequency | 50/60 Hz |
| Communication interfaces | Wi-Fi, Ethernet, RS485 |
| Dimensions (height x width x depth) | 323 x 330 x 190 mm |
| Weight | 7.5 kg |
| Protection rating (IP) | IP65 |
| Operating temperature | -25 ... 65 °C |
| Maximum relative humidity | 100 % |
| Standards and compliance | IEC/EN 62109-1, IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-2 |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
Compatibility is calculated automatically from the manufacturers’ technical data and is for information only. For complex systems, we recommend having the configuration checked by a consultant before ordering. Details in the Terms and conditions
