€1,588 Tax excluded

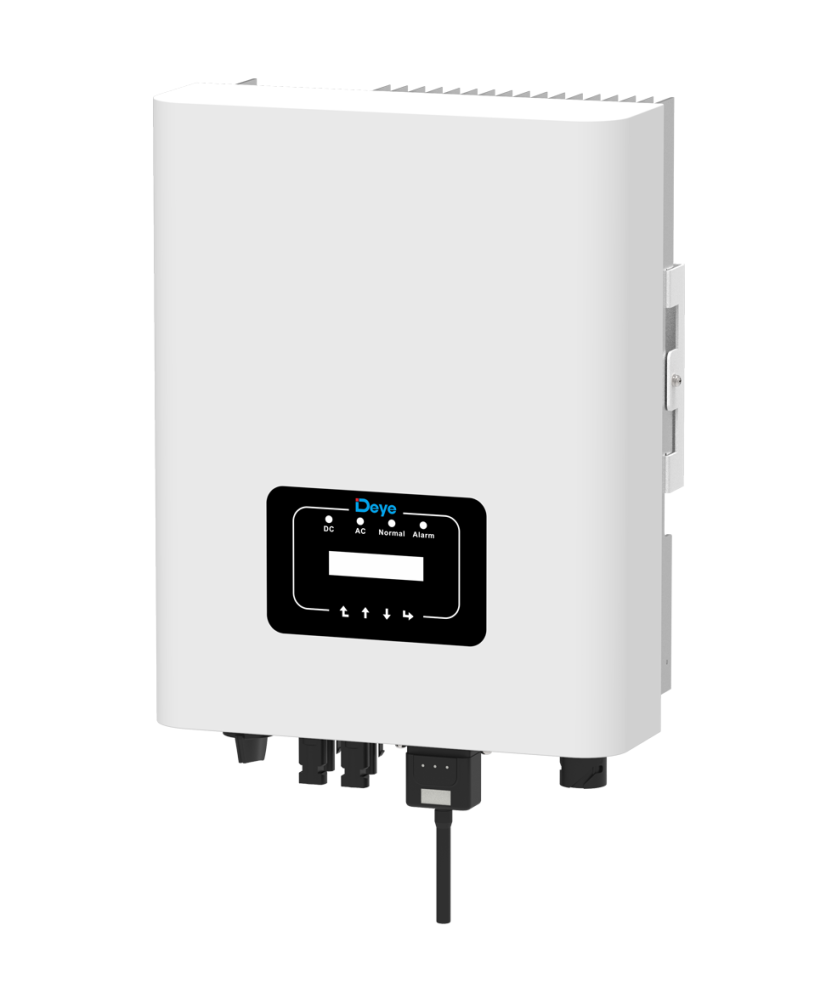

The SUN-15K-G05 is a three-phase on-grid inverter from Deye (no battery) with a continuous output power of 15 kW, 2 MPPT, Wi-Fi, Ethernet and RS485 communication and IP65 protection. It converts the direct current of the photovoltaic panels into alternating current that is fed into the grid.
SUN-15K-G05 is a three-phase on-grid inverter from Deye (no battery) with a continuous output power of 15 kW and 2 MPPT. It converts the direct current produced by the photovoltaic panels into alternating current that is fed directly into the grid, and is intended for grid-connected photovoltaic systems.
It complies with EN50549-1 for grid feed-in. It has a display, an RS485 communication port and a built-in Wi-Fi module with a free app.
The PV input capacity is 19.5 kW.
| Product code | SUN-15K-G05 |
|---|---|
| Product type | Inverter |
| Inverter type | On-grid (no battery) |
| Phases | Three-phase |
| Power class | 10-20 kW |
| Continuous output power (W, 25 °C) | 15000 W |
| Maximum efficiency | 98.5 % |
| Output waveform | Pure sine wave |
| Battery voltage | No battery |
| Maximum PV input voltage | 1000 V |
| Number of MPPT | 2 |
| MPPT voltage range | 200-850 V |
| AC output voltage | 220/230/380/400 V |
| Output frequency | 50/60 Hz |
| Communication interfaces | Wi-Fi, Ethernet, RS485 |
| Protections | Output short circuit, over-temperature, reverse polarity on the PV input, overcurrent, earth leakage current |
| Dimensions (height x width x depth) | 472 x 333 x 203 mm |
| Weight | 15 kg |
| Ingress protection (IP) | IP65 |
| Operating temperature | -25 ... 65 °C |
| Maximum relative humidity | 100 % |
| Standards and compliance | IEC/EN 62109-1, IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-2 |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
Compatibility is calculated automatically from the manufacturers’ technical data and is for information only. For complex systems, we recommend having the configuration checked by a consultant before ordering. Details in the Terms and conditions
