€966 Tax excluded

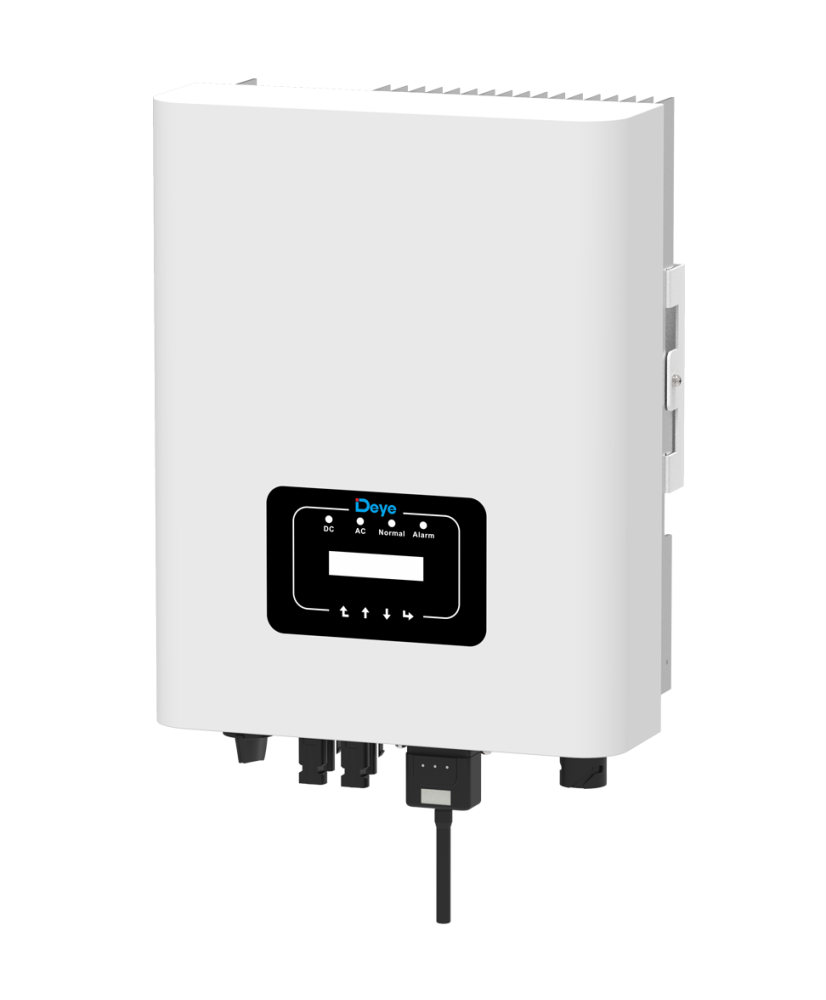

The Deye SUN-8K-G is an 8 kW single-phase on-grid inverter without battery, with 2 MPPT in a range of 70-550 V and a maximum efficiency of up to 97.7 %. It offers zero-export and VSG applications, smart string monitoring (optional), an anti-PID function (optional) and IP65 protection.
Deye SUN-8K-G is an 8 kW single-phase on-grid inverter without battery, with 2 MPPT and a maximum efficiency of 97.7 %. It converts the energy of the photovoltaic panels into alternating current for the grid and offers zero-export and VSG applications over a wide output voltage range.
The inverter has 2 MPP trackers and a wide output voltage range. Zero-export and VSG applications are available.
Smart string monitoring and the anti-PID function are optional.
| Product code | SUN-8K-G |
|---|---|
| Product type | Inverter |
| Inverter type | On-grid (no battery) |
| Phases | Single-phase |
| Power class | 6-10 kW |
| Continuous output power (W, 25 °C) | 8000 W |
| Maximum efficiency | 97.7 % |
| Output waveform | Pure sine wave |
| Battery voltage | No battery |
| Maximum PV input voltage | 550 V |
| Number of MPPT | 2 |
| MPPT voltage range | 70-550 V |
| AC output voltage | 220/230 V |
| Output frequency | 50/60 Hz |
| Communication interfaces | Wi-Fi, Ethernet, RS485 |
| Protections | Output short circuit, over-temperature, reverse polarity on the PV input, overcurrent, earth leakage current |
| Dimensions (height x width x depth) | 310 x 330 x 198.5 mm |
| Weight | 11 kg |
| Ingress protection (IP) | IP65 |
| Operating temperature | -25 ... 65 °C |
| Maximum relative humidity | 100 % |
| Standards and compliance | IEC 62109-1, EN 61000-6-1, EN 61000-6-3, IEC 62109-2 |
| Applications | Zero export, VSG |
| String monitoring | Smart (optional) |
| Anti-PID function | Optional |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
Compatibility is calculated automatically from the manufacturers’ technical data and is for information only. For complex systems, we recommend having the configuration checked by a consultant before ordering. Details in the Terms and conditions
