€827 Tax excluded

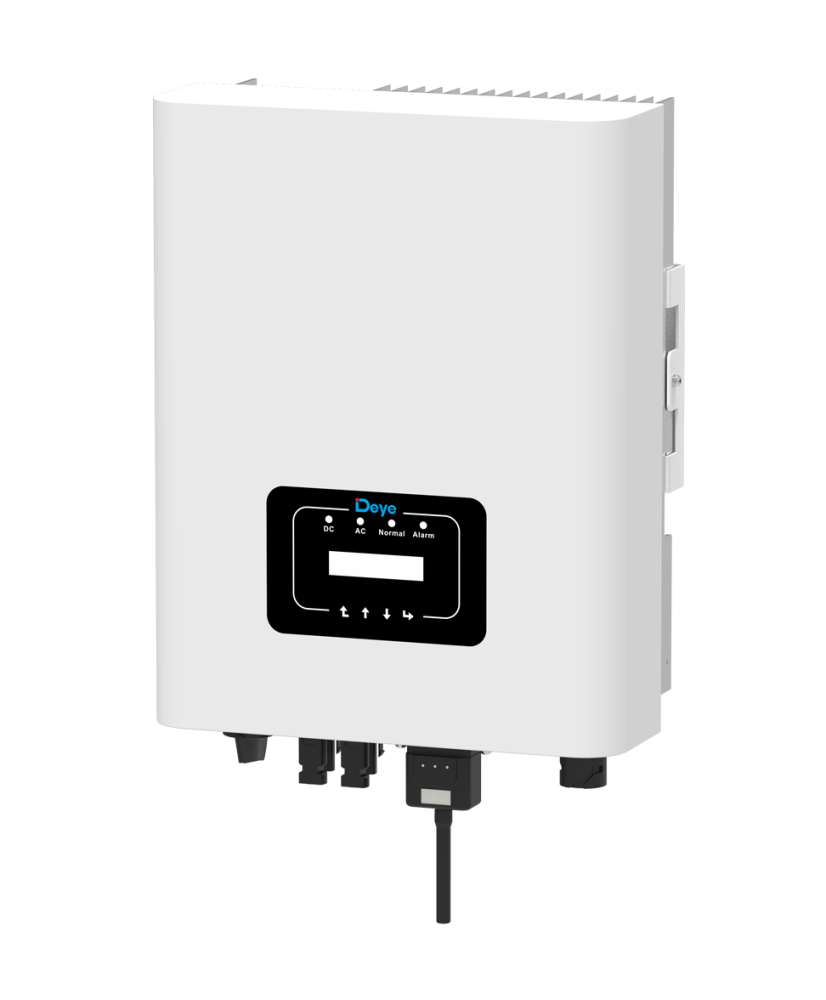

The Deye SUN-6K-G06P3 is a 6 kW three-phase on-grid inverter without battery, with 2 MPPT in a range of 120-1000 V, a maximum input voltage of 1100 V and a maximum efficiency of 98.2 %. It accepts a PV input of 7800 W, complies with EN50549-1 and has a Wi-Fi module with a free app.
Deye SUN-6K-G06P3 is a 6 kW three-phase on-grid inverter without battery, with 2 MPPT and a maximum efficiency of 98.2 %. It feeds the energy produced by the photovoltaic panels into the public grid in accordance with EN50549-1, and includes a Wi-Fi module with a free app.
The inverter complies with EN50549-1 for feed-in to the national grid and does not need a battery. The PV input capacity from the solar panels is 7800 W.
It has a display, an RS485 communication port and an included Wi-Fi module with a free app for monitoring.
| Product code | SUN-6K-G06P3 |
|---|---|
| Product type | Inverter |
| Inverter type | On-grid (no battery) |
| Phases | Three-phase |
| Power class | 3.5-6 kW |
| Continuous output power (W, 25 °C) | 6000 W |
| Maximum efficiency | 98.2 % |
| Output waveform | Pure sine wave |
| Battery voltage | No battery |
| Maximum PV input voltage | 1100 V |
| Number of MPPT | 2 |
| MPPT voltage range | 120-1000 V |
| AC output voltage | 230/400 V |
| Output frequency | 50/60 Hz |
| Communication interfaces | Wi-Fi, Ethernet, RS485 |
| Protections | Output short circuit, over-temperature, reverse polarity on the PV input, overcurrent, earth leakage current |
| Dimensions (height x width x depth) | 463 x 283 x 178 mm |
| Weight | 11 kg |
| Ingress protection (IP) | IP65 |
| Operating temperature | -25 ... 60 °C |
| Maximum relative humidity | 100 % |
| Standards and compliance | IEC/EN 62109-1, IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-2 |
| Maximum PV input power | 7800 W |
| Grid standard | EN50549-1 |
| Display | Yes |
| Wi-Fi module | Included, with free app |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
Compatibility is calculated automatically from the manufacturers’ technical data and is for information only. For complex systems, we recommend having the configuration checked by a consultant before ordering. Details in the Terms and conditions
