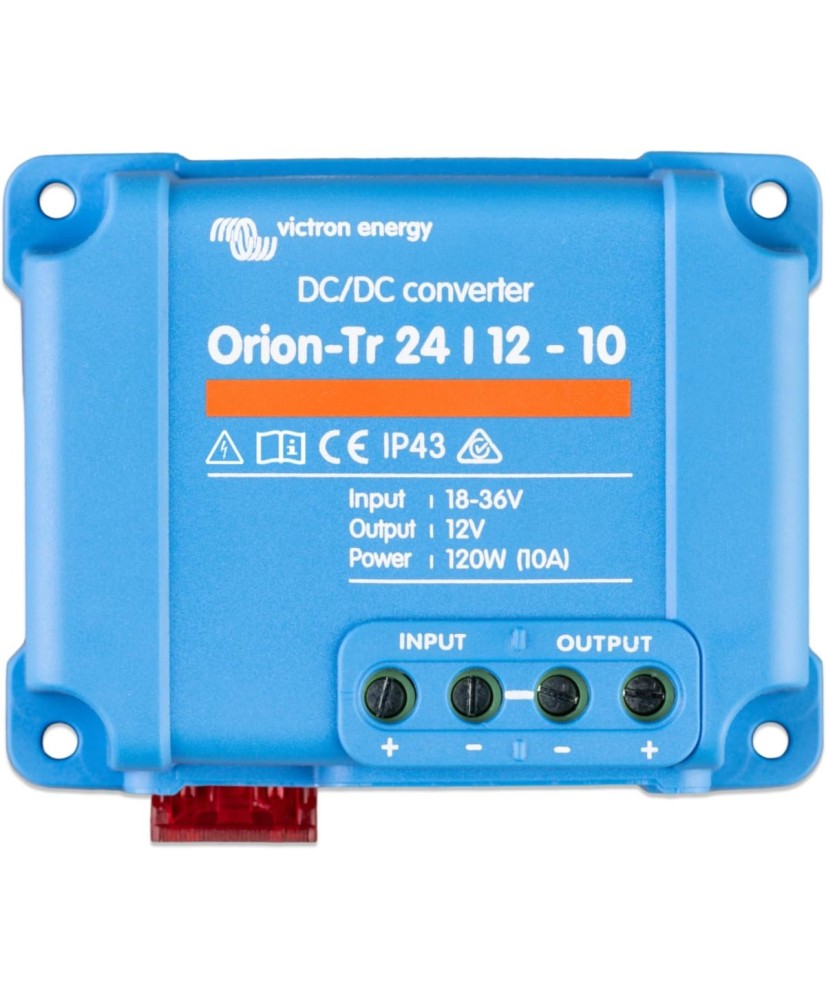

Orion-Tr 24/12-10 (120W) DC-DC converter Victron Energy

Orion-Tr 24/12-10 (120W) - DC-DC converter 24 V to 12 V

Orion-Tr 24/12-10 (120W) is a non-isolated DC-DC converter that powers 12 V loads from 24 V systems, with a 12.5 V output and 10 A continuous current. Synchronous rectification keeps full-load efficiency above 95 %, and the screw terminals allow installation without special tools.

Main features:

• Input voltage: 18-35 V
• Output voltage: 12.5 V
• Output current: 10 A continuous, 12 A maximum
• Power: 120 W
• Maximum efficiency: 97 %
• Protection rating: IP43, with terminals facing down

High efficiency
Using synchronous rectification, full load efficiency exceeds 95%.

IP43 protection
When installed with the screw terminals oriented downwards.

Screw terminals
No special tools needed for installation.

Technical specifications
