6 kW hybrid inverter Voltronic, single-phase, 48 V, InfiniSolar V II TWIN 6KW Voltronic
€676
Tax included
€563 Tax excluded

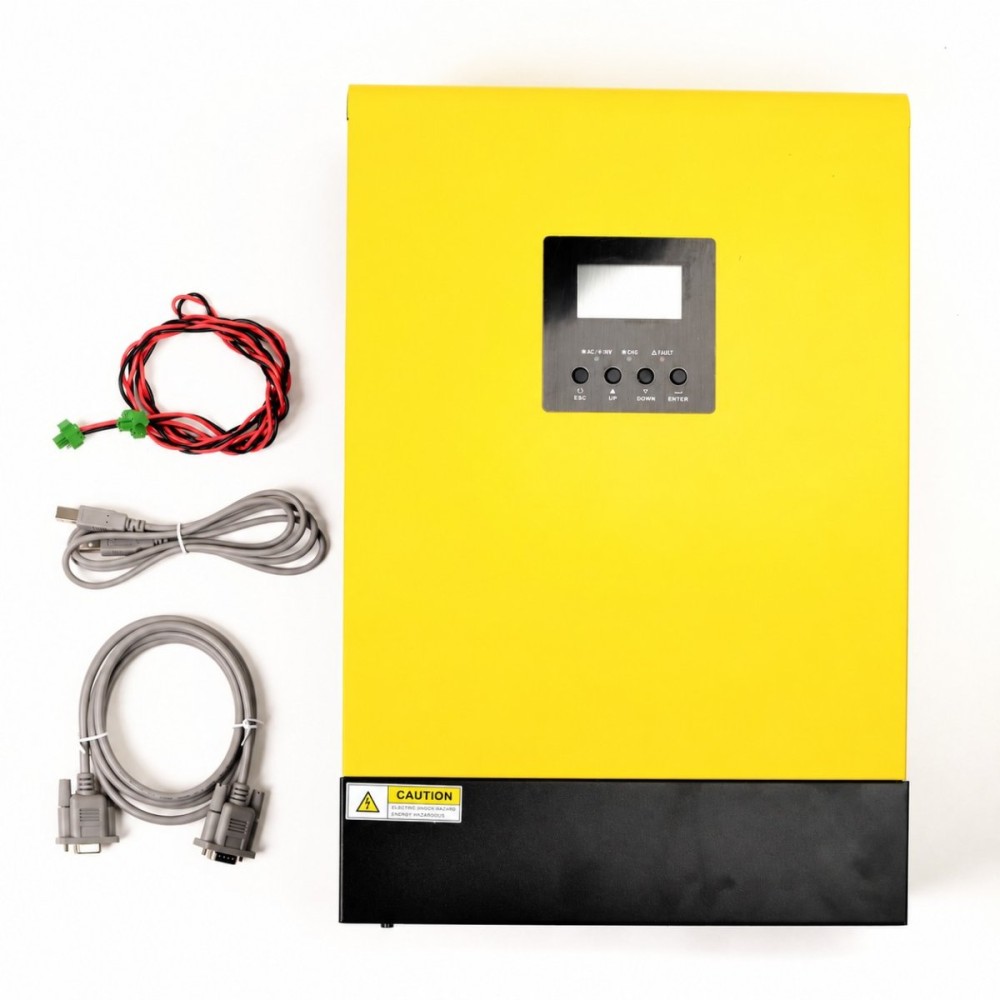

InfiniSolar V II TWIN 6KW is a 6 kW single-phase hybrid inverter (220/230/240 V output) for 48 V batteries, with one built-in MPPT for PV panels. It uses solar energy for self-consumption, charges the battery and can feed the surplus into the grid.
6 kW hybrid inverter Voltronic, single-phase, 48 V, InfiniSolar V II TWIN 6KW
InfiniSolar V II TWIN 6KW is a 6 kW single-phase hybrid inverter (220/230/240 V output) for 48 V batteries, with one built-in MPPT for PV panels. It uses solar energy for self-consumption, charges the battery and can feed the surplus into the grid.
Main features:
- Rated output power: 6 kW, 220/230/240 V
- Battery voltage: 48 V
- PV input: 1 MPPT, 120-430 V, maximum 27 A
- Maximum charging current: 120 A
- Communication: USB, RS-232, dry contact
- Parallel operation: Yes, up to 9 units
Operation and monitoring:
Pure sine wave, two outputs for smart load management and programmable supply priority (PV, battery or grid). Charging current and voltage are adjustable, and the operation modes are programmable: grid-tie, off-grid and grid-tie with backup. Monitoring software for real-time status and control; up to 9 units in parallel.
Technical specifications
| Rated output power | 6000 W |
|---|---|
| Maximum PV power | 7000 W |
| Maximum PV voltage | 500 V |
| Weight | 12 kg |
Data sheet
- Reference
- InfiniSolar V II TWIN 6KW
- Brand
- Voltronic
- Product type
- Inverter
- Inverter type
- Hybrid (built-in MPPT)
- Phases
- Single-phase
- Power class
- 3.5-6 kW
- Continuous output power (W, 25 °C)
- 6000 W
- Maximum efficiency
- 95 %
- Battery voltage
- 48 V
- Max. charge current
- 120 A
- Max. PV input voltage
- 500 V
- Number of MPPT trackers
- 1
- MPPT voltage range
- 120-430 V
- Parallel operation
- Yes
- Communication interfaces
- USB
- Dimensions (H x W x D)
- 468 x 295 x 120 mm
- Weight
- 12 kg
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
