€553 Tax excluded

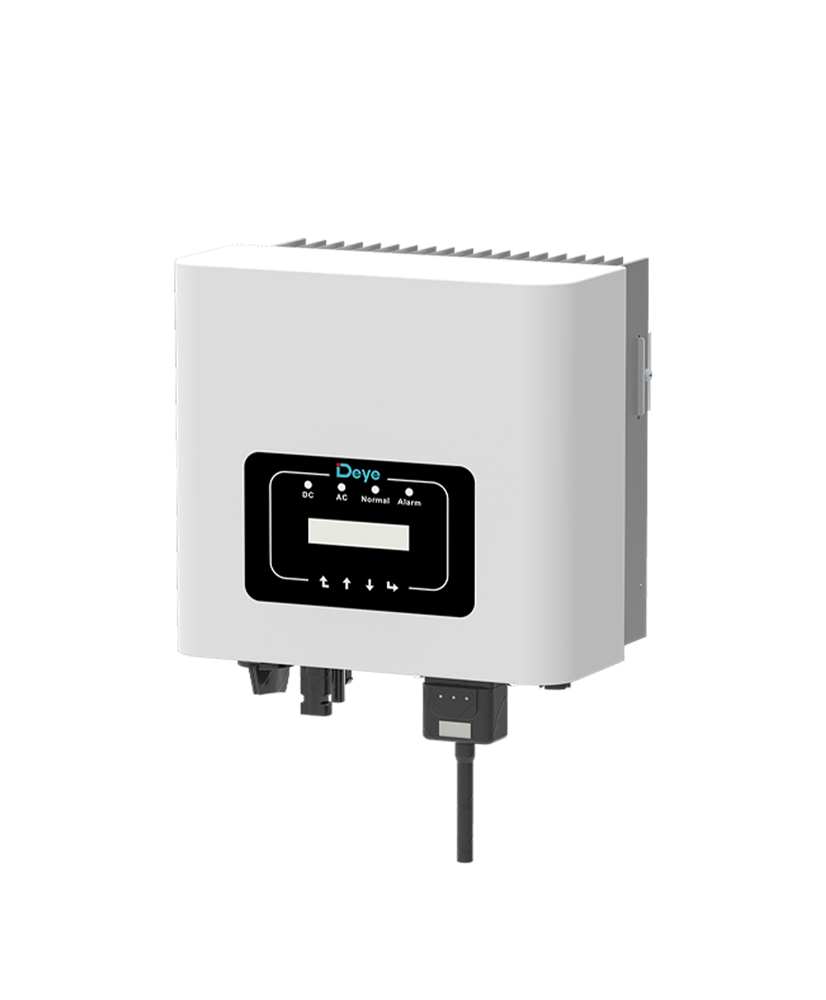

The SUN-3K-G04P1-EU-AM1 is a single-phase Deye grid-tied inverter (without battery) with a continuous output power of 3 kW, 1 MPPT, Wi-Fi, Ethernet, RS485 communication and an IP65 protection rating. It converts the direct current of the photovoltaic panels into alternating current fed into the grid.
SUN-3K-G04P1-EU-AM1 is a single-phase grid-tied inverter (without battery) from Deye, with a continuous output power of 3 kW and 1 MPPT. It converts the direct current produced by the photovoltaic panels into alternating current that is fed directly into the grid, and is intended for grid-connected photovoltaic systems.
It features 1 MPP tracker, a maximum efficiency of up to 97.5%, a zero-export application, a VSG application, a wide output voltage range and a low start-up voltage of 80 V.
Smart string monitoring and the anti-PID function are available as options.
| Product code | SUN-3K-G04P1-EU-AM1 |
|---|---|
| Product type | Inverter |
| Inverter type | Grid-tied (without battery) |
| Phases | Single-phase |
| Power class | 2-3.5 kW |
| Continuous output power (W, 25 °C) | 3000 W |
| Maximum efficiency | 97.5 % |
| Output waveform | Pure sine wave |
| Battery voltage | No battery |
| Maximum panel input voltage | 550 V |
| Number of MPPTs | 1 |
| MPPT voltage range | 70-500 V |
| AC output voltage | 220/230 V |
| Output frequency | 50/60 Hz |
| Communication interfaces | Wi-Fi, Ethernet, RS485 |
| Protections | Output short circuit, overtemperature, reverse polarity of the panels, overcurrent, earth leakage current |
| Dimensions (height x width x depth) | 310 x 280 x 184 mm |
| Weight | 4.8 kg |
| Protection rating (IP) | IP65 |
| Operating temperature | -25 ... 65 °C |
| Maximum relative humidity | 100 % |
| Standards and compliance | IEC/EN 62109-1, IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-2 |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
Compatibility is calculated automatically from the manufacturers’ technical data and is for information only. For complex systems, we recommend having the configuration checked by a consultant before ordering. Details in the Terms and conditions
