Busbar 250A 2P with 12 Screws and Cover Victron Energy

Busbar 250A 2P with 12 Screws and Cover - DC distribution up to 70V

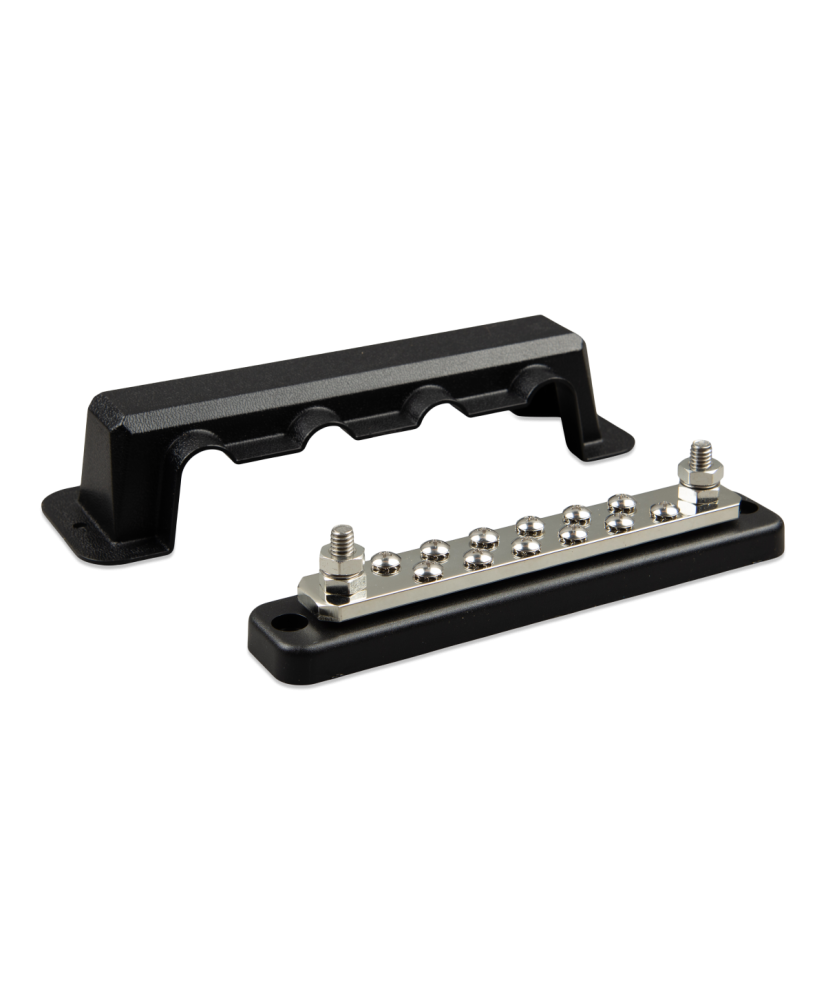

Busbar 250A 2P with 12 Screws and Cover is a tin-plated copper busbar for current distribution in DC systems up to 70 V and 250 A. It has 12 connection screws and a removable black cover.

Main features:

• Rating: 250 A / 70 V DC
• Connections: 2P, 12 × 4.8 mm screws, 8 mm studs
• Material: tin-plated copper, ABS cover
• Tightening torque: 13 N·m

Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.

We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.

Available models:

• 150A / 70V - 4 high current connections
• 150A / 70V - 6 high current connections
• 150A / 70A - 2P with 10 screws +cover
• 150A / 70A - 2P with 20 screws +cover

• 250A / 70V - 4 high current connections
• 250A / 70V - 6 high current connections
• 250A / 70A - 2P with 6 screws +cover
• 250A / 70A - 2P with 12 screws +cover
• 600A / 70V - 4 high current connections and 8 low current connections
• 600A / 70V - 8 high current connections and 8 low current connections

For more technical information and for the busbar dimensions see the datasheet.

Technical specifications
