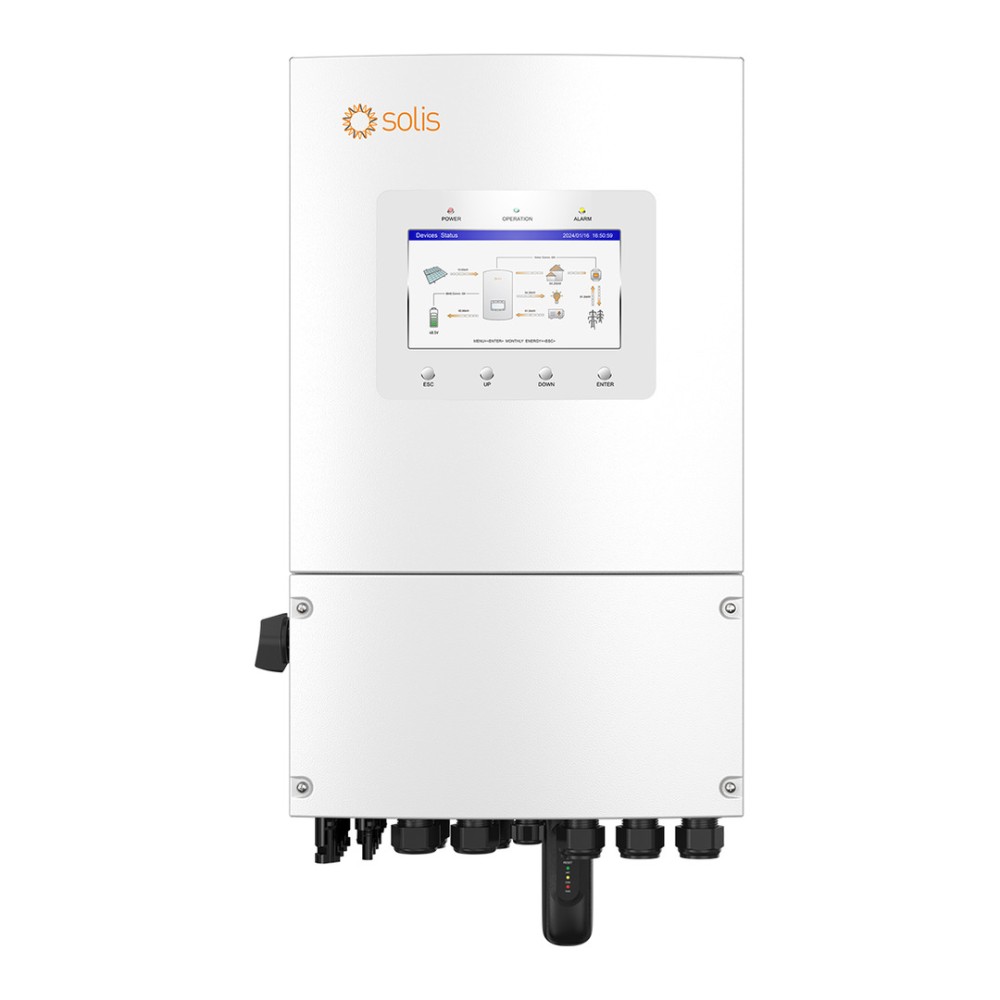

3 kW inverter ibrido Solis, monofase, 48 V, S6-EH1P3K-L-PLUS

Name: 3 kW inverter ibrido Solis, monofase, 48 V, S6-EH1P3K-L-PLUS
Brand: Solis
SKU: S6-EH1P3K-L-PLUS
Price: 1096.00 EUR
Availability: InStock

1.096 € Tasse incluse

913 € Tasse escluse

S6-EH1P3K-L-PLUS is a 3 kW single-phase hybrid inverter for low-voltage batteries (40-60 V), with 2 MPPT (90-435 V), a maximum charge and discharge current of 70 A and a maximum efficiency of 96.2%. It has IP66 protection, a 7-inch LCD and Wi-Fi, LAN and Bluetooth communication, and parallel operation allows up to 6 units.

Riferimento S6-EH1P3K-L-PLUS

I suoi diritti di garanzia legale

S6-EH1P3K-L-PLUS - Single-phase hybrid inverter 3 kW for low-voltage batteries

S6-EH1P3K-L-PLUS is a 3 kW single-phase hybrid inverter from the Solarator series, for low-voltage batteries (40-60 V range), with 2 MPPT inputs and a 7-inch LCD. It combines solar conversion, battery charging and load supply in one unit and can run in parallel, up to 6 units, in grid-connected or off-grid systems.

Main features:

AC rated power: 3000 W
Battery: 40-60 V, max. current 70 A
PV input: 2 MPPT, 90-435 V, maximum 4800 W
Maximum efficiency: 96.2%
Communication: Wi-Fi, LAN, Bluetooth, CAN, RS485
Protection and cooling: IP66, natural cooling
Parallel operation: Up to 6 units

The inverter works with lithium-ion or lead-acid batteries in the 40-60 V range, communicates with the battery over CAN or RS485 and is compatible with the low-voltage batteries of the brands in the manufacturer compatibility list, for example Dyness, Pylontech or Shoto. The recommended PV array size is up to 6 kW, of which a maximum of 4800 W can be used, with one string per MPPT.

In off-grid mode it withstands a 200% overload for 10 s, useful for starting motors, pumps and air conditioners, and the switchover from grid to backup supply takes less than 10 ms. It can also run on solar energy alone, without a grid, can be coupled to an existing grid-connected PV installation with export control, and the battery reserve level is adjustable. A generator connects to a dedicated port, with a maximum input power of 3 kW, and the Smart Load function extends the supply time of essential loads.

Cooling is natural, without fans, and the typical noise level is below 40 dB(A). Remote monitoring and control are done through the SolisCloud platform. The package contains a current transformer (CT) and a Wi-Fi stick for data transmission; the smart meter is optional. The inverter operates from -25 °C to +60 °C and has IP66 protection.

Technical specifications

Inverter type	Single-phase hybrid inverter, for low-voltage (LV) batteries
Battery type	Li-ion / lead-acid
Battery voltage range	40-60 V
Max. charge/discharge current	70 A
Number of battery ports / BMS ports	1 / 1
Battery communication	CAN / RS485
Recommended max. PV array size	6 kW
Max. usable PV input power	4800 W
Max. input voltage	500 V
Rated voltage	330 V
Start-up voltage	90 V
MPPT voltage range	90-435 V
Max. input current	16 A / 16 A
Max. current per DC input	16 A
Max. short-circuit current	20 A / 20 A
MPPT number / max. number of strings	2/2
Rated output power	3000 W
Max. apparent output power	3000 VA
Rated grid voltage	L/N/PE, 220/230 V
Rated grid frequency	50 Hz / 60 Hz
Rated grid output current	13.7 A / 13.1 A
Power factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	< 3%
Max. input power (grid side)	4.6 kW
Input voltage range (grid side)	187-253 V
Max. input current (grid side)	21 A
Rated output power (back-up)	3000 W
Max. apparent output power (back-up)	2 x rated power, 10 s
Back-up switch time	< 10 ms
Rated output current (back-up)	13.7 A / 13.1 A
Max. AC passthrough current	35 A
THDv (linear load)	< 2%
Generator max. input power	3 kW
Generator rated input current	13.7 A / 13.1 A
Max. efficiency	96.2%
EU efficiency	96.1%
BAT charged by PV / AC max. efficiency	95.3% / 93.9%
Battery discharged efficiency	93.8%
Integrated protections	Surge protection, output overcurrent protection, insulation resistance monitoring, residual current detection, integrated PV switch, DC reverse-polarity protection (PV only), integrated AFCI 2.0 (optional), anti-islanding protection
Protection class / Over voltage category	I / II (PV and BAT), III (MAINS and BACKUP and GEN)
Dimensions (W x H x D)	335 x 560 x 253 mm
Weight	23 kg
Inverter topology	Non-isolated (PV), isolated (battery)
Self-consumption	< 40 W
Operating temperature range	-25 ... +60 °C
Relative humidity	0-100%
Ingress protection	IP66
Noise emission (typical)	< 40 dB(A)
Cooling concept	Natural cooling
Max. operation altitude	3000 m
Grid connection and safety / EMC standards	NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, EN 50549-1, MEA, PEA, NBR 16149, NBR 16150, G98, G99, CEI 0-21, NTS 631 TypeA; IEC/EN 62109-1/-2, EN 61000-6-2/-3
PV connection	MC4 connector
Battery connection	Terminal block
AC connection	Terminal block
Display	7.0" LCD display & Bluetooth + APP
Communication interface	Standard: WIFI+LAN+Bluetooth, CAN-BMS, CAN-Parallel x2, RS485-Meter, RS485, DRM, DI, DO x2; Optional: 4G

Scheda dati

Riferimento: S6-EH1P3K-L-PLUS
MPN: S6-EH1P3K-L-PLUS
Tipo di prodotto: Inverter
Tipo di inverter: Ibrido (MPPT integrato)
Fasi: Monofase
Classe di potenza: 2-3,5 kW
Potenza continua in uscita (VA, 25 °C): 3000 VA
Potenza continua in uscita (W, 25 °C): 3000 W
Potenza di picco: 2 x la potenza nominale, 10 s
Efficienza massima: 96,2 %
Tensione batteria: 48 V
Intervallo di tensione di ingresso DC: 40-60 V
Corrente di carica massima: 70 A
Tensione FV massima di ingresso: 500 V
Corrente di cortocircuito FV max.: 20 A / 20 A
Numero di MPPT: 2
Intervallo di tensione MPPT: 90-435 V
Tensione di uscita AC: 220/230 V
Frequenza di uscita: 50/60 Hz
Intervallo di tensione di ingresso AC: 187-253 V
Corrente massima di ingresso AC: 21 A
Funzionamento in parallelo: Sì
Interfacce di comunicazione: Bluetooth
CAN-bus
Ethernet
RS485
Wi-Fi
Protezioni: Protezione da sovratensioni, protezione da sovracorrente in uscita, monitoraggio della resistenza di isolamento, rilevamento della corrente residua, interruttore PV integrato, protezione da inversione di polarità DC (solo PV)
Dimensioni (A x L x P): 560 x 335 x 253 mm
Peso: 23 kg
Grado di protezione (IP): IP66
Temperatura di esercizio: -25 ... 60 °C
Umidità relativa massima: 100 %
Norme e conformità: NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, EN 50549-1, MEA, PEA, NBR 16149, NBR 16150, G98, G99, CEI 0-21, NTS 631 TypeA; IEC/EN 62109-1/-2, EN 61000-6-2/-3

Questi dati tecnici sono stati ripresi da noi dalla scheda tecnica del produttore e possono contenere errori di trascrizione. Per un’accuratezza del 100 %, consulti la scheda tecnica allegata.
