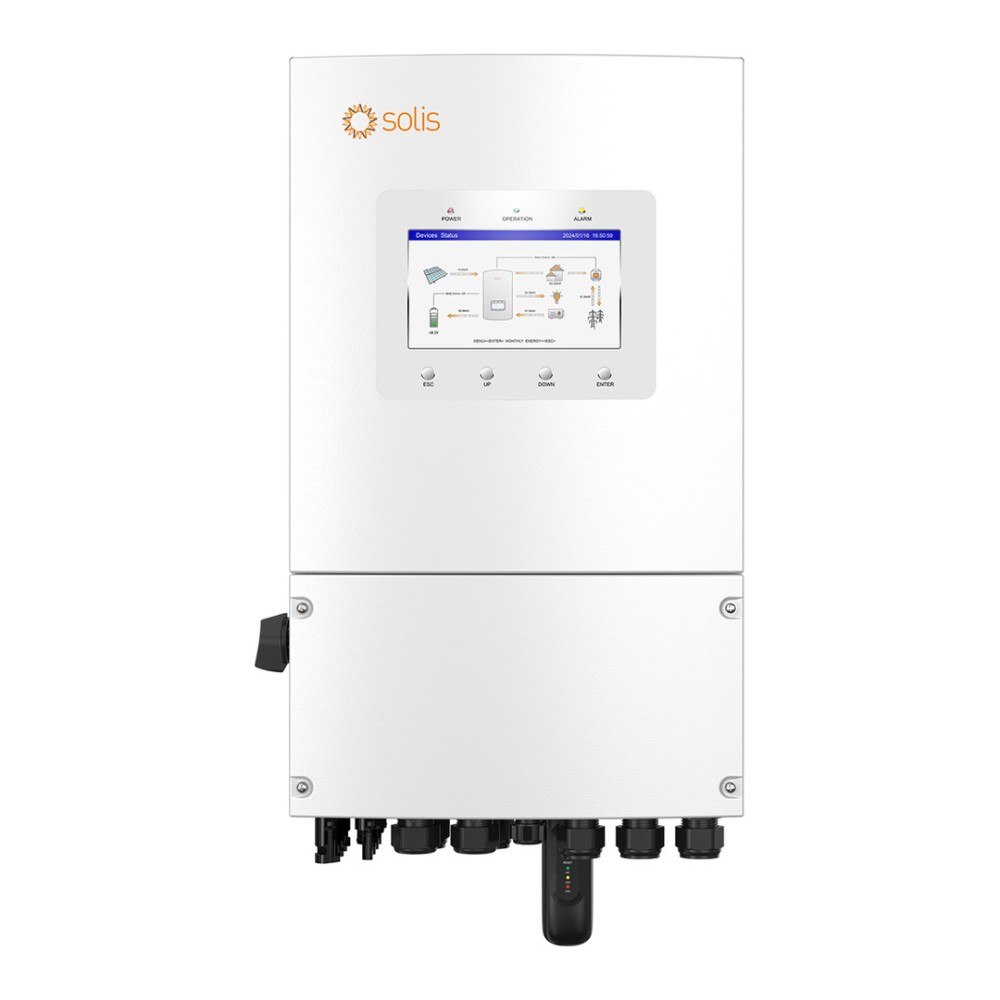

3 kW inversor híbrido Solis, monofásico, 48 V, S6-EH1P3K-L-PLUS

Name: 3 kW inversor híbrido Solis, monofásico, 48 V, S6-EH1P3K-L-PLUS
Brand: Solis
SKU: S6-EH1P3K-L-PLUS
Price: 1096.00 EUR
Availability: InStock

1.096 € Impuesto incluido

913 € Sin impuestos

S6-EH1P3K-L-PLUS is a 3 kW single-phase hybrid inverter for low-voltage batteries (40-60 V), with 2 MPPT (90-435 V), a maximum charge and discharge current of 70 A and a maximum efficiency of 96.2%. It has IP66 protection, a 7-inch LCD and Wi-Fi, LAN and Bluetooth communication, and parallel operation allows up to 6 units.

Referencia S6-EH1P3K-L-PLUS

Sus derechos de garantía legal

S6-EH1P3K-L-PLUS - Single-phase hybrid inverter 3 kW for low-voltage batteries

S6-EH1P3K-L-PLUS is a 3 kW single-phase hybrid inverter from the Solarator series, for low-voltage batteries (40-60 V range), with 2 MPPT inputs and a 7-inch LCD. It combines solar conversion, battery charging and load supply in one unit and can run in parallel, up to 6 units, in grid-connected or off-grid systems.

Main features:

AC rated power: 3000 W
Battery: 40-60 V, max. current 70 A
PV input: 2 MPPT, 90-435 V, maximum 4800 W
Maximum efficiency: 96.2%
Communication: Wi-Fi, LAN, Bluetooth, CAN, RS485
Protection and cooling: IP66, natural cooling
Parallel operation: Up to 6 units

The inverter works with lithium-ion or lead-acid batteries in the 40-60 V range, communicates with the battery over CAN or RS485 and is compatible with the low-voltage batteries of the brands in the manufacturer compatibility list, for example Dyness, Pylontech or Shoto. The recommended PV array size is up to 6 kW, of which a maximum of 4800 W can be used, with one string per MPPT.

In off-grid mode it withstands a 200% overload for 10 s, useful for starting motors, pumps and air conditioners, and the switchover from grid to backup supply takes less than 10 ms. It can also run on solar energy alone, without a grid, can be coupled to an existing grid-connected PV installation with export control, and the battery reserve level is adjustable. A generator connects to a dedicated port, with a maximum input power of 3 kW, and the Smart Load function extends the supply time of essential loads.

Cooling is natural, without fans, and the typical noise level is below 40 dB(A). Remote monitoring and control are done through the SolisCloud platform. The package contains a current transformer (CT) and a Wi-Fi stick for data transmission; the smart meter is optional. The inverter operates from -25 °C to +60 °C and has IP66 protection.

Technical specifications

Inverter type	Single-phase hybrid inverter, for low-voltage (LV) batteries
Battery type	Li-ion / lead-acid
Battery voltage range	40-60 V
Max. charge/discharge current	70 A
Number of battery ports / BMS ports	1 / 1
Battery communication	CAN / RS485
Recommended max. PV array size	6 kW
Max. usable PV input power	4800 W
Max. input voltage	500 V
Rated voltage	330 V
Start-up voltage	90 V
MPPT voltage range	90-435 V
Max. input current	16 A / 16 A
Max. current per DC input	16 A
Max. short-circuit current	20 A / 20 A
MPPT number / max. number of strings	2/2
Rated output power	3000 W
Max. apparent output power	3000 VA
Rated grid voltage	L/N/PE, 220/230 V
Rated grid frequency	50 Hz / 60 Hz
Rated grid output current	13.7 A / 13.1 A
Power factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	< 3%
Max. input power (grid side)	4.6 kW
Input voltage range (grid side)	187-253 V
Max. input current (grid side)	21 A
Rated output power (back-up)	3000 W
Max. apparent output power (back-up)	2 x rated power, 10 s
Back-up switch time	< 10 ms
Rated output current (back-up)	13.7 A / 13.1 A
Max. AC passthrough current	35 A
THDv (linear load)	< 2%
Generator max. input power	3 kW
Generator rated input current	13.7 A / 13.1 A
Max. efficiency	96.2%
EU efficiency	96.1%
BAT charged by PV / AC max. efficiency	95.3% / 93.9%
Battery discharged efficiency	93.8%
Integrated protections	Surge protection, output overcurrent protection, insulation resistance monitoring, residual current detection, integrated PV switch, DC reverse-polarity protection (PV only), integrated AFCI 2.0 (optional), anti-islanding protection
Protection class / Over voltage category	I / II (PV and BAT), III (MAINS and BACKUP and GEN)
Dimensions (W x H x D)	335 x 560 x 253 mm
Weight	23 kg
Inverter topology	Non-isolated (PV), isolated (battery)
Self-consumption	< 40 W
Operating temperature range	-25 ... +60 °C
Relative humidity	0-100%
Ingress protection	IP66
Noise emission (typical)	< 40 dB(A)
Cooling concept	Natural cooling
Max. operation altitude	3000 m
Grid connection and safety / EMC standards	NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, EN 50549-1, MEA, PEA, NBR 16149, NBR 16150, G98, G99, CEI 0-21, NTS 631 TypeA; IEC/EN 62109-1/-2, EN 61000-6-2/-3
PV connection	MC4 connector
Battery connection	Terminal block
AC connection	Terminal block
Display	7.0" LCD display & Bluetooth + APP
Communication interface	Standard: WIFI+LAN+Bluetooth, CAN-BMS, CAN-Parallel x2, RS485-Meter, RS485, DRM, DI, DO x2; Optional: 4G

Ficha de datos

Referencia: S6-EH1P3K-L-PLUS
NMP: S6-EH1P3K-L-PLUS
Tipo de producto: Inversor
Tipo de inversor: Híbrido (MPPT integrado)
Fases: Monofásico
Clase de potencia: 2-3,5 kW
Potencia continua de salida (VA, 25 °C): 3000 VA
Potencia continua de salida (W, 25 °C): 3000 W
Potencia pico: 2 x la potencia nominal, 10 s
Eficiencia máxima: 96,2 %
Tensión de batería: 48 V
Rango de tensión de entrada DC: 40-60 V
Corriente de carga máxima: 70 A
Tensión FV máxima de entrada: 500 V
Corriente de cortocircuito FV máx.: 20 A / 20 A
Número de MPPT: 2
Rango de tensión MPPT: 90-435 V
Tensión de salida AC: 220/230 V
Frecuencia de salida: 50/60 Hz
Rango de tensión de entrada AC: 187-253 V
Corriente máxima de entrada AC: 21 A
Funcionamiento en paralelo: Sí
Interfaces de comunicación: Bluetooth
CAN-bus
Ethernet
RS485
Wi-Fi
Protecciones: Protección contra sobretensiones, protección contra sobrecorriente en la salida, monitorización de la resistencia de aislamiento, detección de corriente residual, interruptor PV integrado, protección contra polaridad inversa DC (solo PV)
Dimensiones (alto x ancho x fondo): 560 x 335 x 253 mm
Peso: 23 kg
Grado de protección (IP): IP66
Temperatura de funcionamiento: -25 ... 60 °C
Humedad relativa máxima: 100 %
Normas y conformidad: NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, EN 50549-1, MEA, PEA, NBR 16149, NBR 16150, G98, G99, CEI 0-21, NTS 631 TypeA; IEC/EN 62109-1/-2, EN 61000-6-2/-3

Estos datos técnicos los hemos tomado de la ficha técnica del fabricante y pueden contener errores de transcripción. Para una exactitud del 100 %, consulte la ficha técnica adjunta.
