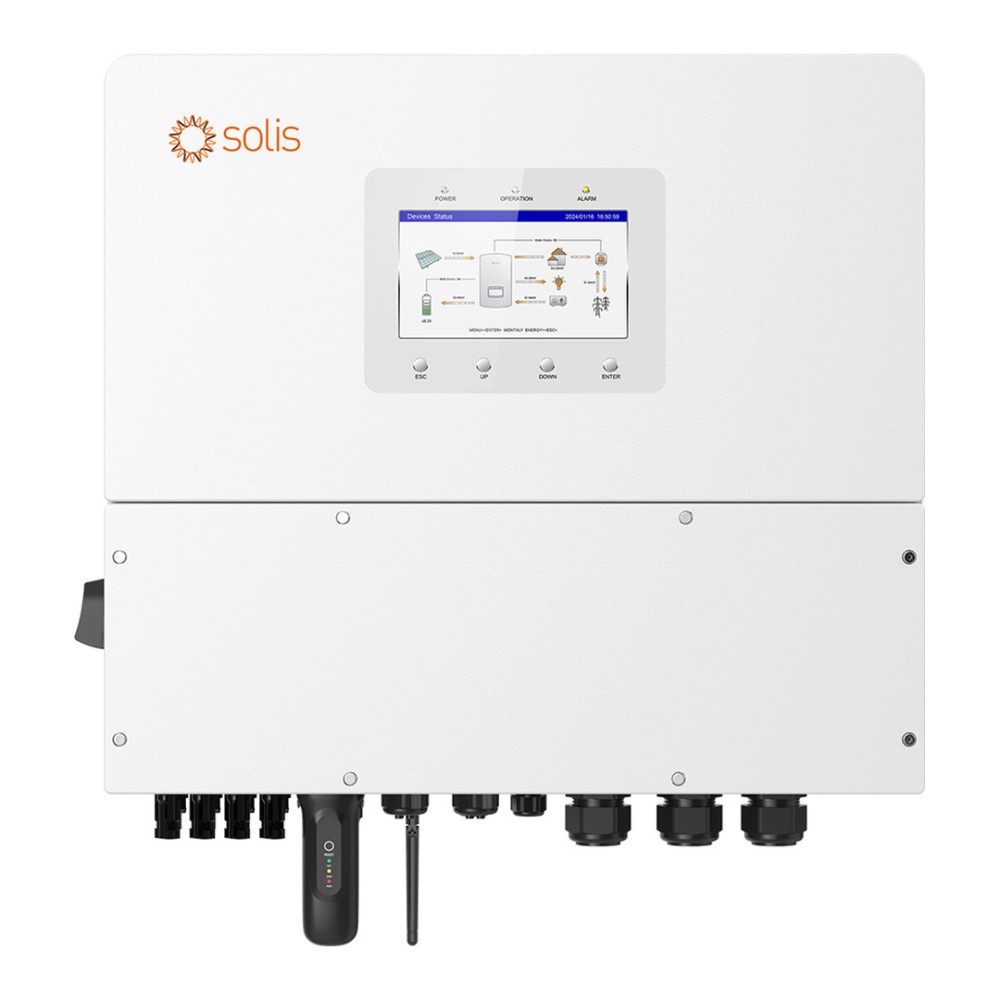

15 kW inverter ibrido Solis, trifase, HV, S6-EH3P15K-H

Name: 15 kW inverter ibrido Solis, trifase, HV, S6-EH3P15K-H
Brand: Solis
SKU: S6-EH3P15K-H
Price: 2322.00 EUR
Availability: InStock

2.322 € Tasse incluse

1.935 € Tasse escluse

S6-EH3P15K-H is a 15 kW three-phase hybrid inverter for high-voltage lithium-ion batteries (120-800 V), with 4 MPPT (200-850 V), a maximum charge and discharge current of 50 A and a maximum efficiency of 97.7%. It has IP66 protection, a 7-inch LCD and Wi-Fi, LAN and Bluetooth communication, and parallel operation allows up to 6 units.

Riferimento S6-EH3P15K-H

I suoi diritti di garanzia legale

S6-EH3P15K-H - Three-phase hybrid inverter 15 kW for HV batteries

S6-EH3P15K-H is a 15 kW three-phase hybrid inverter for high-voltage lithium-ion batteries (120-800 V), with 4 MPPT inputs, a 7-inch LCD and Bluetooth app configuration. It combines solar conversion, battery charging and load supply in one unit and can run in parallel, up to 6 units, in grid-connected or off-grid systems.

Main features:

AC rated power: 15000 W
HV battery: 120-800 V, lithium-ion, max. current 50 A
PV input: 4 MPPT, 200-850 V, maximum 24000 W
Maximum efficiency: 97.7%
Communication: Wi-Fi, LAN, Bluetooth, CAN, RS485
Protection and cooling: IP66, redundant fans
Parallel operation: Up to 6 units

The inverter connects to high-voltage lithium-ion batteries in the 120-800 V range, with a single battery port, communicates with the battery over CAN or RS485 and is compatible with the HV batteries of the brands in the manufacturer compatibility list, for example BYD, Dyness or Pylontech. The recommended PV array size is up to 30 kW, of which a maximum of 24000 W can be used, on 4 MPPT inputs with one string each (20 A maximum and 30 A short-circuit current per input), with a maximum voltage of 1000 V and a start-up voltage of 160 V.

The three-phase output accepts unbalanced loads, with up to 40% of the rated power on each phase, and the switchover from grid to backup supply takes less than 10 ms. In off-grid mode the backup output withstands 1.6 times the rated power for 10 s. The inverter can be AC-coupled to an existing PV installation, and a generator connects to the dedicated port, with a maximum input power of 15 kW.

Up to 6 units of the same model can be connected in parallel, and remote monitoring and control are done through the SolisCloud platform. The package includes an Eastron meter with 3 current transformers (CT) and a data logging stick. The IP66 enclosure operates from -25 °C to +60 °C and at altitudes up to 2000 m.

Technical specifications

Inverter type	Three-phase hybrid inverter, for high-voltage (HV) batteries
Battery type	Li-ion
Battery voltage range	120-800 V
Max. charge/discharge current	50 A
Number of battery ports / BMS ports	1 / 1
Battery communication	CAN / RS485
Recommended max. PV array size	30 kW
Max. usable PV input power	24000 W
Max. input voltage	1000 V
Rated voltage	600 V
Start-up voltage	160 V
MPPT voltage range	200-850 V
Max. input current	4 x 20 A
Max. current per DC input	20 A
Max. short-circuit current	4 x 30 A
MPPT number / max. number of strings	4/4
Rated output power	15000 W
Max. apparent output power	15000 VA
Rated grid voltage	3/N/PE, 220/380 V, 230/400 V
Rated grid frequency	50 Hz / 60 Hz
Rated grid output current	22.8 A / 21.7 A
Power factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	< 3%
Max. input power (grid side)	22.5 kW
Input voltage range (grid side)	304-437 V / 320-460 V
Max. input current (grid side)	34.2 A / 32.5 A
Rated output power (back-up)	15000 W
Max. apparent output power (back-up)	1.6 x rated power, 10 s
Back-up switch time	< 10 ms
Rated output current (back-up)	22.8 A / 21.7 A
Max. AC passthrough current	34.2 A / 32.5 A
THDv (linear load)	< 3%
Generator max. input power	15 kW
Generator rated input current	22.8 A / 21.7 A
Max. power per phase	40% of rated power
Max. efficiency	97.7%
EU efficiency	97.5%
BAT charged by PV max. efficiency	98.5%
BAT charged/discharged to AC max. efficiency	97.2%
Integrated protections	DC type II and AC type II surge protection (optional), output overcurrent protection, insulation resistance monitoring, residual current detection, integrated PV switch, DC reverse-polarity protection, anti-islanding protection
Protection class / Over voltage category	I / II (PV and BAT), III (MAINS and BACKUP and GEN)
Dimensions (W x H x D)	563 x 546 x 250 mm
Weight	35.2 kg
Inverter topology	Transformerless
Self-consumption	< 25 W
Operating temperature range	-25 ... +60 °C
Relative humidity	0-100%
Ingress protection	IP66
Noise emission (typical)	< 65 dB(A)
Cooling concept	Intelligent redundant fan-cooling
Max. operation altitude	2000 m
Grid connection and safety / EMC standards	EN 50549-1/-10, VDE 4105, CEI 0-21, CEI 0-16, NC-RFG TypeB, NRS 097-2-1, LTU-1, G99, PEA; IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
PV connection	MC4 connector
Battery connection	Lever terminal
AC connection	OT terminal
Display	7.0" LCD display & Bluetooth + APP
Communication interface	Standard: WIFI+LAN+Bluetooth, CAN-BMS, CAN-Parallel x2, RS485-Meter, RS485, DRM, DI, DO x3

Scheda dati

Riferimento: S6-EH3P15K-H
Tipo di prodotto: Inverter
Tipo di inverter: Ibrido (MPPT integrato)
Off-grid (senza rete)
Fasi: Trifase
Classe di potenza: 10-20 kW
Potenza continua in uscita (VA, 25 °C): 15000 VA
Potenza continua in uscita (W, 25 °C): 15000 W
Potenza di picco: 1,6 x la potenza nominale, 10 s
Efficienza massima: 97,7 %
Consumo a vuoto: meno di 25 W
Tensione batteria: HV (alta tensione)
Intervallo di tensione di ingresso DC: 120-800 V
Corrente di carica massima: 50 A
Tensione FV massima di ingresso: 1000 V
Corrente di cortocircuito FV max.: 4 x 30 A
Numero di MPPT: 4
Intervallo di tensione MPPT: 200-850 V
Tensione di uscita AC: 220/380 V, 230/400 V
Frequenza di uscita: 50/60 Hz
Intervallo di tensione di ingresso AC: 304-437 V / 320-460 V
Corrente massima di ingresso AC: 34,2 A
Funzionamento in parallelo: Sì
Interfacce di comunicazione: Bluetooth
CAN-bus
Ethernet
RS485
Wi-Fi
Protezioni: Protezione da sovratensioni DC tipo II e AC tipo II (opzionale), protezione da sovracorrente in uscita, monitoraggio della resistenza di isolamento, rilevamento della corrente residua, interruttore PV integrato, protezione da inversione di polarità DC
Dimensioni (A x L x P): 546 x 563 x 250 mm
Peso: 35,2 kg
Grado di protezione (IP): IP66
Temperatura di esercizio: -25 ... 60 °C
Umidità relativa massima: 100 %
Norme e conformità: EN 50549-1/-10, VDE 4105, CEI 0-21, CEI 0-16, NC-RFG TypeB, NRS 097-2-1, LTU-1, G99, PEA; IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4

Questi dati tecnici sono stati ripresi da noi dalla scheda tecnica del produttore e possono contenere errori di trascrizione. Per un’accuratezza del 100 %, consulti la scheda tecnica allegata.
