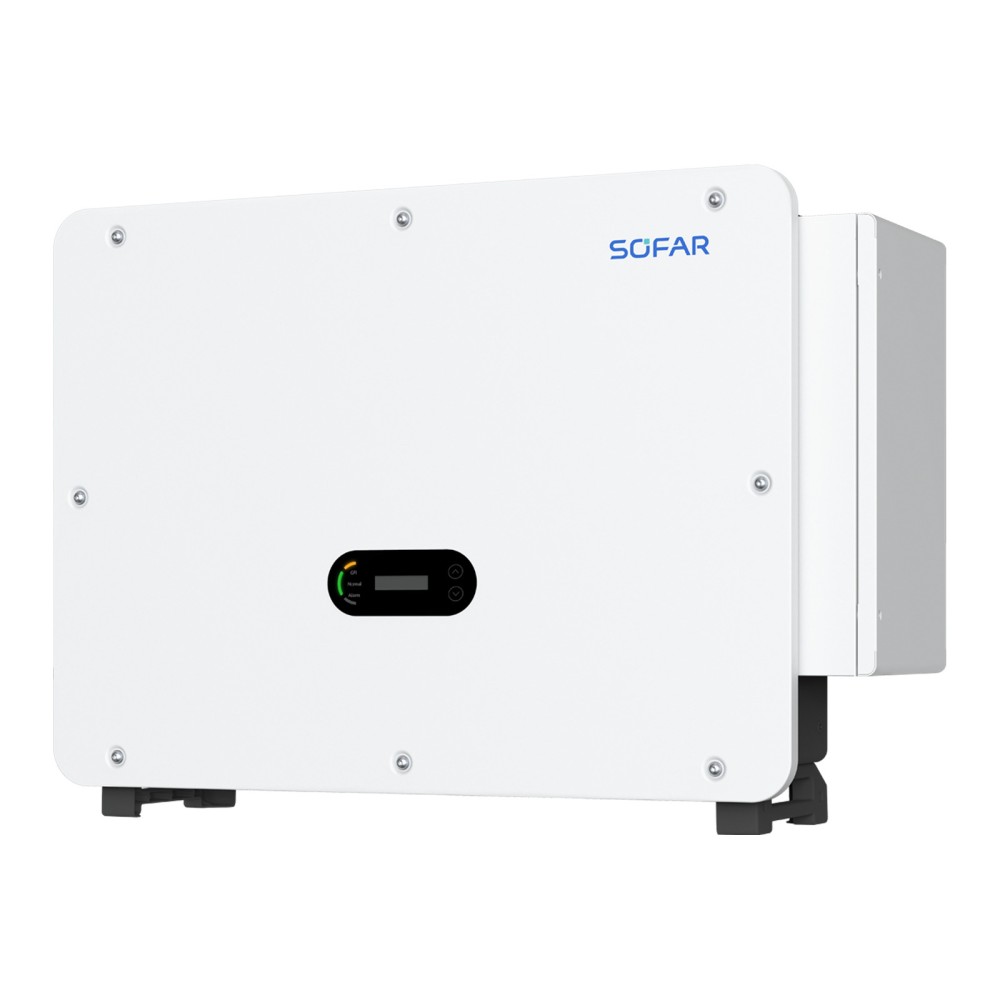

100 kW (110 kVA) inverter on-grid SOFAR, trifase, 110KTLX-G4

Name: 100 kW (110 kVA) inverter on-grid SOFAR, trifase, 110KTLX-G4
Brand: SOFAR
SKU: 110KTLX-G4
Price: 4563.00 EUR
Availability: InStock

4.563 € Tasse incluse

3.803 € Tasse escluse

110KTLX-G4 is a SOFAR three-phase on-grid inverter with a rated power of 100 kW (maximum apparent power 110 kVA at 45 °C), 10 MPPTs, a 180-1000 V MPPT range and a maximum efficiency of 98.6%. It has built-in AFCI, IP66 protection, RS485 and Wi-Fi communication, and weighs 75 kg.

Riferimento 110KTLX-G4

I suoi diritti di garanzia legale

110KTLX-G4 - 110 kW three-phase on-grid inverter, 10 MPPTs, built-in AFCI

110KTLX-G4 is a three-phase on-grid string inverter from SOFAR with a rated power of 100 kW (maximum apparent power 110 kVA at 45 °C), 10 MPPTs, built-in AFCI and IP66 protection, for commercial and industrial PV systems.

Main features:

Rated power: 100 kW
Maximum apparent power: 110 kVA at 45 °C, 100 kVA at 50 °C
MPPT: 10 MPPTs, 180-1000 V, 20 DC inputs
Recommended maximum PV power: 187 kWp
Maximum efficiency: 98.6%
Protection: IP66, built-in AFCI, type II surge protection on DC and AC
Dimensions and weight: 970 x 695 x 325 mm (W x H x D), 75 kg

Each of the 10 MPPTs takes a maximum input current of 40 A and a short-circuit current of 50 A. The recommended maximum PV power is 187 kWp and the inverter accepts 170% DC overload. For monitoring it offers I-V curve scanning, Modbus communication over RS485 and an external Wi-Fi module.

Protections include AFCI, PID recovery, DC reverse polarity, anti-islanding, leakage current, ground fault, PV string fault monitoring, a DC switch and type II surge protection on DC and AC. It operates from -30 to 60 °C, up to 4000 m altitude (derating above 3000 m), with air cooling.

At 75 kg, the 110KTLX-G4 is unpacked and mounted by at least two people, on the bracket (rear panel) supplied with the inverter.

Technical specifications

Recommended maximum PV input power	187 kWp
Maximum input voltage	1100 V
Rated input voltage	625 V
Start-up voltage	200 V
MPPT operating voltage range	180-1000 V
Number of MPP trackers	10
Number of DC inputs	20
Maximum input current per MPPT	10 x 40 A
Maximum short-circuit current per MPPT	10 x 50 A
Rated output power	100 kW
Maximum apparent power	110 kVA at 45 °C / 100 kVA at 50 °C
Maximum output current	167.2 A at 380 V / 159.5 A at 400 V / 153.1 A at 415 V
Rated output voltage	3/N/PE, 380/400/415 V
Output voltage range	310-480 V
Rated output frequency	50/60 Hz
Output frequency range	45-55 Hz / 55-65 Hz
Active power adjustable range	0-100 %
THDi	under 1% (at 100% power)
Power factor	0.8 leading - 0.8 lagging
Maximum efficiency	98.6 %
European efficiency	98.3 %
DC reverse polarity protection	Yes
Anti-islanding protection	Yes
Leakage current protection	Yes
Ground fault monitoring	Yes
PV-array string fault monitoring	Yes
DC switch	Yes
AFCI (arc fault detection)	Yes
PID recovery	Yes
Surge protection (SPD)	PV: type II, AC: type II
Ambient temperature range	-30 ... 60 °C
Topology	Transformerless
Degree of protection	IP66
Allowable relative humidity range	0-100 %
Maximum operating altitude	4000 m (derating above 3000 m)
Cooling	Smart air cooling
Dimensions (W x H x D)	970 x 695 x 325 mm
Weight	75 kg
Display	LCD & Bluetooth + APP
Communication	RS485, Wi-Fi
Standards	EN/IEC 62109-1/2, EN/IEC 61000-6-2/-4, IEC 61000-3-4/-5, EN 50530, EN 50549, IEC 62116, IEC 61727, IEC 61683, IEC 60068-2-1/2/14/30, VDE V 0126-1-1, UTE C15-712-1, VDE-AR-N 4105/4110, NTS 631, UNE 217001, UNE 217002, G99, C10/11

Scheda dati

Riferimento: 110KTLX-G4
MPN: 110KTLX-G4
Tipo di prodotto: Inverter
Tipo di inverter: On-grid (senza batteria)
Fasi: Trifase
Classe di potenza: 20+ kW
Potenza continua in uscita (VA, 25 °C): 110000 VA
Potenza continua in uscita (W, 25 °C): 100000 W
Efficienza massima: 98,6 %
Tensione batteria: Senza batteria
Tensione FV massima di ingresso: 1100 V
Corrente di cortocircuito FV max.: 50 A
Numero di MPPT: 10
Intervallo di tensione MPPT: 180-1000 V
Tensione di uscita AC: 3/N/PE, 380/400/415 V
Frequenza di uscita: 50/60 Hz
Corrente massima di ingresso AC: 159,5 A a 400 V
Interfacce di comunicazione: Bluetooth
Modbus
RS485
Wi-Fi
Protezioni: Inversione di polarità DC, anti-isola, corrente di dispersione, guasto a terra, monitoraggio stringhe PV, sezionatore DC, protezione da sovratensioni tipo II su DC e AC, AFCI
Dimensioni (A x L x P): 695 x 970 x 325 mm
Peso: 75 kg
Grado di protezione (IP): IP66
Temperatura di esercizio: -30 ... 60 °C
Umidità relativa massima: 100 %
Norme e conformità: EN/IEC 62109-1/2, EN/IEC 61000-6-2/-4, IEC 61000-3-4/-5, EN 50530, EN 50549, IEC 62116, IEC 61727, IEC 61683, IEC 60068-2-1/2/14/30, VDE V 0126-1-1, UTE C15-712-1, VDE-AR-N 4105/4110, NTS 631, UNE 217001, UNE 217002, G99, C10/11

Questi dati tecnici sono stati ripresi da noi dalla scheda tecnica del produttore e possono contenere errori di trascrizione. Per un’accuratezza del 100 %, consulti la scheda tecnica allegata.
