12 kW inverter ibrido Pylontech Force-H3X, trifase, HV, FH3X-12K-HY-3P

Name: 12 kW inverter ibrido Pylontech Force-H3X, trifase, HV, FH3X-12K-HY-3P
Brand: Pylontech
SKU: FH3X-12K-HY-3P
Price: 2413.00 EUR
Availability: InStock

2.413 € Tasse incluse

2.011 € Tasse escluse

FH3X-12K-HY-3P is a 12 kW three-phase hybrid inverter with 3 MPPT (200-850 V) and built-in BMS, mounted on 2-7 FH10050 battery modules (10.24-35.84 kWh). It has a maximum efficiency of 98%, a maximum charge and discharge current of 50 A, a back-up output with switchover in 10 ms or less, and Wi-Fi and Bluetooth communication.

Riferimento FH3X-12K-HY-3P

I suoi diritti di garanzia legale

FH3X-12K-HY-3P - Three-phase hybrid inverter 12 kW for HV battery modules

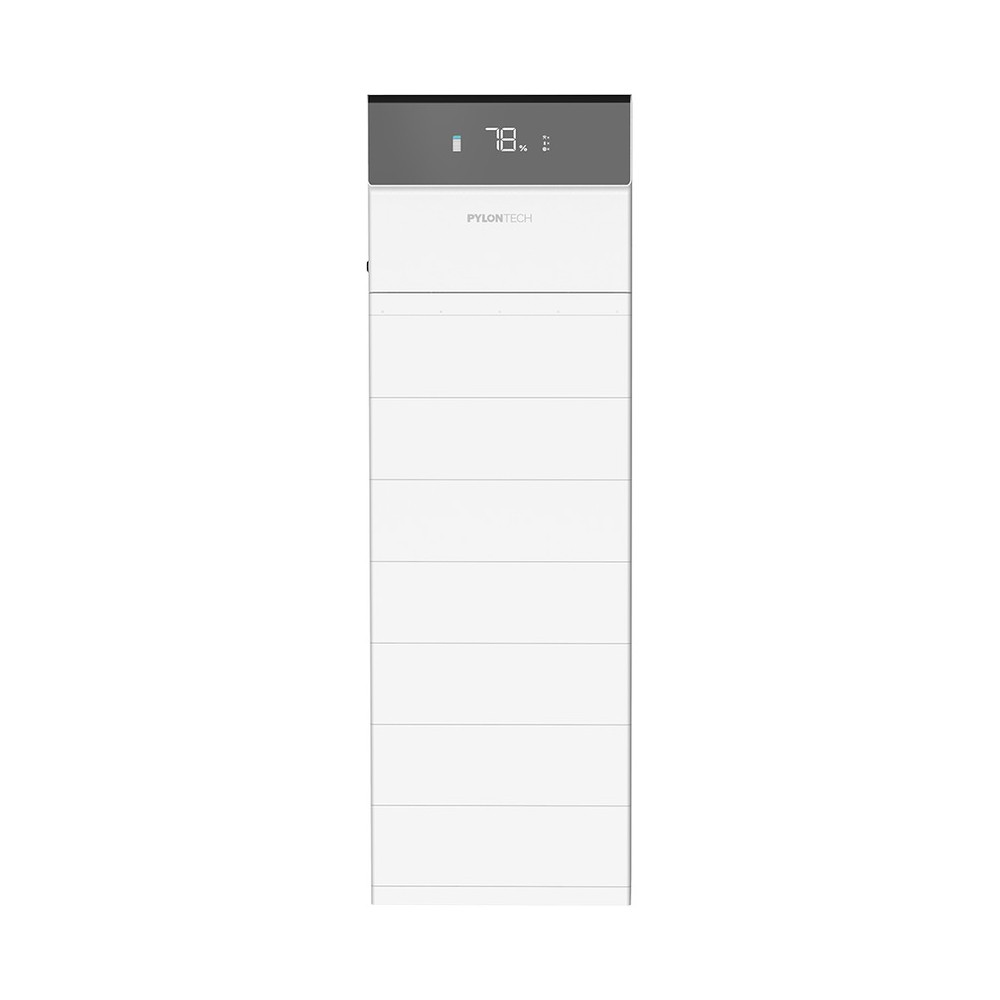

FH3X-12K-HY-3P is the all-in-one controller of the Pylontech Force-H3X system: a 12 kW three-phase hybrid inverter with built-in MPPT and BMS, mounted directly on 2-7 FH10050 battery modules (10.24-35.84 kWh) to form a complete solar storage system, with no extra junction box or switch. The FH10050 modules are not included and are added separately.

Main features:

Rated power: 12 kW
PV input: 3 MPPT, 200-850 V, maximum 19.2 kW
Battery: 2-7 FH10050 modules, 10.24-35.84 kWh
Battery current: 50 A charge and discharge
Maximum efficiency: 98%
Back-up output: 12000 VA, switchover in at most 10 ms
Communication: Wi-Fi and Bluetooth

The controller contains the inverter, the MPPT trackers and the battery management system (BMS). It is installed on 2-7 FH10050 battery modules of 102.4 V and 5.12 kWh (system capacity 10.24-35.84 kWh) and does not use the FC1000 controller of the Force-H3 system. With 2 modules charging can reach 10 kW and discharging 10 kW; with 3-7 modules charging can reach 15 kW and discharging 12 kW.

The PV input has 3 MPPT with one string each, an MPPT range of 200-850 V (full load 280-850 V), a start-up voltage of 200 V, a maximum input voltage of 1000 V, a maximum current of 20 A and a short-circuit current of 30 A per MPPT; the maximum PV power is 19.2 kW. The grid is 3/N/PE, 400 V, 50/60 Hz, with a nominal current to the grid of 17.4 A and a maximum current from the grid of 26.1 A, and the three-phase output accepts 100% unbalanced loads. The back-up output delivers 12000 VA, with a peak of 18000 VA for 60 s, and the changeover between grid and back-up takes at most 10 ms.

The controller box contains the base, the anti-tipping and module brackets, the AC, PV and RJ45 connectors, one energy meter and the mounting accessories; the battery modules are packed separately. The controller has natural cooling, a transformerless topology, a noise level below 30 dB at 1 m, a night-time consumption below 15 W, an LED display, an installed emergency power off (EPO) button and Wi-Fi and Bluetooth communication. It operates at -10...55 °C (power is reduced above 45 °C), at 0-100% humidity, and power is reduced above 2000 m altitude. The user manual states parallel operation of up to 6 units.

Technical specifications

Type	Three-phase all-in-one hybrid inverter, controller with built-in BMS
Battery module model	FH10050
Number of battery modules	2 / 3 / 4 / 5 / 6 / 7
System nominal capacity	10.24 / 15.36 / 20.48 / 25.6 / 30.72 / 35.84 kWh
System nominal power	12 kW
Maximum PV power	19.2 kW
Maximum PV input voltage	1000 V
Start-up voltage	200 V
MPPT voltage range	200-850 V
MPPT full-load voltage range	280-850 V
Number of MPPT	3
Number of PV strings per MPPT	1
Maximum input current per MPPT	20 A
Short-circuit current per MPPT	30 A
PV surge protection	Type II
Maximum continuous charge/discharge current	50 A
Maximum charging power with 2 modules	10 kW
Maximum discharging power with 2 modules	10 kW
Maximum charging power with 3-7 modules	15 kW
Maximum discharging power with 3-7 modules	12 kW
Nominal grid voltage	3/N/PE, 400 V
Nominal grid frequency	50/60 Hz
Nominal continuous current to the grid	17.4 A
Nominal active power to the grid	12000 W
Maximum apparent power to the grid	12000 VA
Maximum continuous current from the grid	26.1 A
Nominal active power from the grid	18000 W
Maximum apparent power from the grid	18000 VA
Power factor range	-0.8...+0.8
Current harmonic distortion (THDi)	< 3 %
Nominal voltage (back-up)	3/N/PE, 400 V
Nominal output frequency (back-up)	50/60 Hz
Maximum continuous current (back-up)	17.4 A
Maximum apparent power (back-up)	12000 VA
Peak off-grid power (60 s)	18000 VA
Grid / back-up switching time	≤ 10 ms
Voltage harmonic distortion (THDv)	< 3 %
Maximum efficiency	98 %
European efficiency	97.5 %
Protections	Anti-islanding, AFCI 2.0 (IEC 63027), insulation resistance monitoring, residual current monitoring, output overcurrent, short-circuit and overvoltage protection, DC switch, DC reverse-polarity protection, PV overvoltage protection, DC/AC surge protection type II
Complete system dimensions, W x H x D (2-7 modules, without base)	540 x 835 / 1005 / 1175 / 1345 / 1515 / 1685 x 350 mm
Complete system weight (2-7 modules, without base)	121 / 160 / 199 / 238 / 277 / 316 kg
Topology	Transformerless
Operating temperature	-10...55 °C (power is reduced above 45 °C)
Operating relative humidity	0-100 %
Altitude	Power is reduced above 2000 m
Noise level (1 m)	< 30 dB
Protective class	I
Overvoltage category	DC II / AC III
Ingress protection	IP65
Salt spray resistance	C5-M
Cooling	Natural
Standby consumption (night)	< 15 W
Communication	Wi-Fi, Bluetooth
Display	LED
Emergency power off (EPO)	Installed
Parallel operation	Up to 6 units
Standards and compliance	VDE-AR-N 4105, EN 50549-1, EN 50549-10, IEC 62109-1, IEC 62109-2, IEC 62619, IEC 62477-1, UN 38.3, VDE-AR-E 2510-50, CEI 0-21, G98, G99

Scheda dati

Riferimento: FH3X-12K-HY-3P
MPN: FH3X-12K-HY-3P
Tipo di prodotto: Inverter
Tipo di inverter: Ibrido (MPPT integrato)
Fasi: Trifase
Classe di potenza: 10-20 kW
Potenza continua in uscita (W, 25 °C): 12000 W
Potenza di picco: 18000 VA, 60 s
Efficienza massima: 98 %
Consumo a vuoto: meno di 15 W
Tensione batteria: HV (alta tensione)
Corrente di carica massima: 50 A
Tensione FV massima di ingresso: 1000 V
Corrente di cortocircuito FV max.: 30 A
Numero di MPPT: 3
Intervallo di tensione MPPT: 200-850 V
Tensione di uscita AC: 400 V
Frequenza di uscita: 50/60 Hz
Corrente massima di ingresso AC: 26,1 A
Funzionamento in parallelo: Sì
Interfacce di comunicazione: Bluetooth
Wi-Fi
Protezioni: Protezione anti-isola, AFCI 2.0 (IEC 63027), rilevamento della resistenza di isolamento, monitoraggio della corrente residua, protezione di uscita da sovracorrente, cortocircuito e sovratensione, sezionatore DC, protezione da inversione di polarità DC
Dimensioni (A x L x P): 495 x 540 x 350 mm
Peso: 43 kg
Grado di protezione (IP): IP65
Temperatura di esercizio: -10 ... 55 °C
Umidità relativa massima: 100 %
Norme e conformità: VDE-AR-N 4105, EN 50549-1, EN 50549-10, IEC 62109-1, IEC 62109-2, IEC 62619, IEC 62477-1, UN 38.3, VDE-AR-E 2510-50, CEI 0-21, G98, G99

Questi dati tecnici sono stati ripresi da noi dalla scheda tecnica del produttore e possono contenere errori di trascrizione. Per un’accuratezza del 100 %, consulti la scheda tecnica allegata.

Compatibilità

Consigliato

Modulo batteria Pylontech Force-H3 5,12 kWh, 102,4 V HV, FH10050

5,12 kWh 102,4 V min. 2 moduli

1.231 €

Le compatibilità sono calcolate automaticamente dai dati tecnici dei produttori e hanno carattere informativo. Per impianti complessi consigliamo di far verificare la configurazione da un consulente prima dell’ordine. Dettagli nei Termini e condizioni
