109 € Tasse escluse

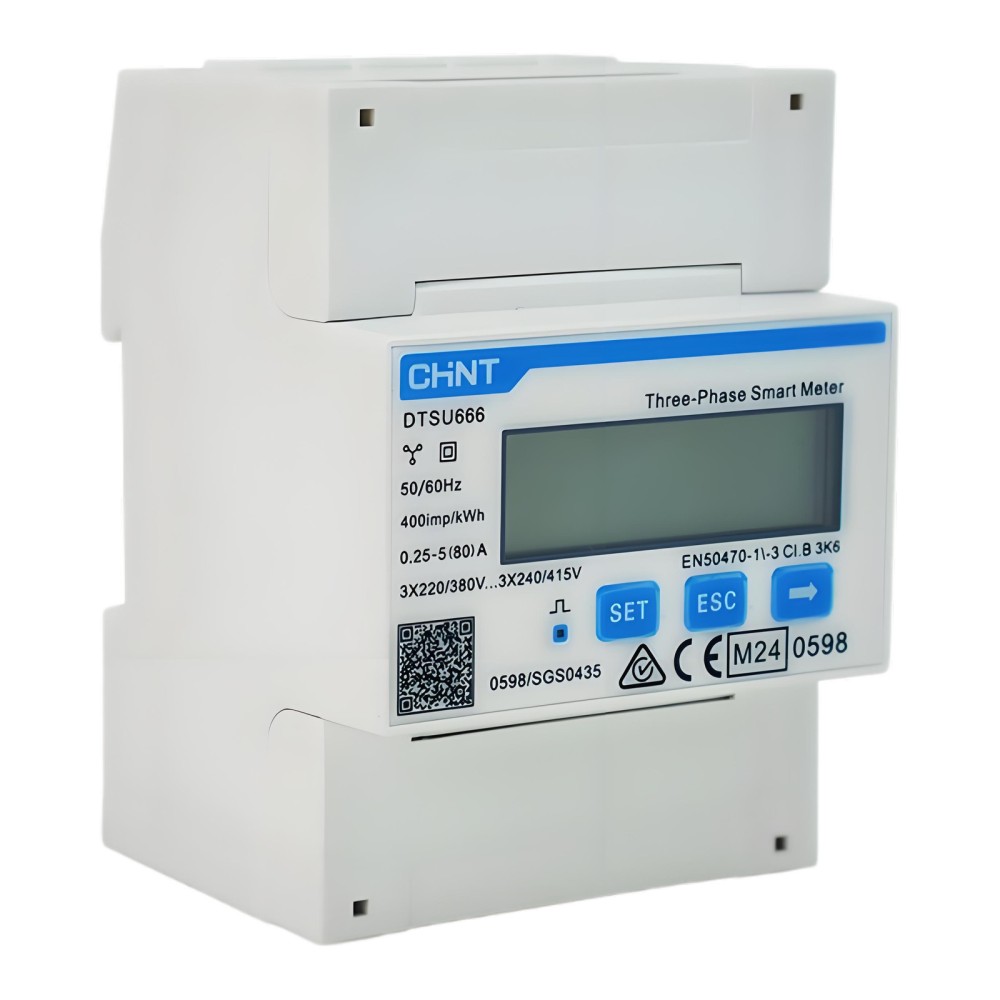

DTSU666 is a CHINT three-phase (3P4W) energy meter, with direct measurement up to 80 A. It measures active and reactive energy in both directions, has accuracy class b (1.0), a current range of 0.25-5(80) A and communicates over RS485 Modbus-RTU. It mounts on a DIN rail and is used for feed-in limitation and consumption monitoring.
DTSU666 is a CHINT three-phase (3P4W) smart energy meter for DIN-rail mounting, with direct measurement up to 80 A. It measures imported and exported active and reactive energy, communicates over RS485 Modbus-RTU and has an LCD display.
SOFAR manuals (HYD 5...20KTL-3PH, CH1000, 25-50KTLX-G3) name the CHINT DTSU666 meter for feed-in limitation and for measuring additional PV inverters.
The meter is wired directly into the measured circuit, without external current transformers; the maximum current is 80 A.
The meter measures energy and power (kW, kvar, kVA), current, voltage, frequency and power factor. The RS485 baud rate can be set from 1200 to 19200 bps (default 9600 bps); it operates from -25 to 55 °C, with IP20 protection.
| Manufacturer | CHINT |
|---|---|
| Model | DTSU666 |
| Type | Smart energy meter, three-phase |
| Connection type | 3P4W |
| Measurement | direct |
| Current range | 0.25-5(80) A |
| Accuracy class | Class B (1.0) |
| Constant | 800 imp/kWh |
| Nominal voltage | 3 x 220/380 V ... 3 x 240/415 V |
| Operating range (voltage) | 0.8 Un ... 1.15 Un |
| Power consumption | 2 W, 10 VA |
| Frequency | 50 Hz or 60 Hz |
| Communication | RS485, Modbus-RTU |
| Baud rate | 1200, 2400, 4800, 9600 (default), 19200 bps |
| Measured values | import/export active and reactive energy (kWh, kvarh), instantaneous power (kW, kvar, kVA), current, voltage, frequency, power factor |
| Display | LCD with backlight |
| Pulse output | LED pulse indication |
| Compliance | EN 50470-1/-3, MID B+D certified |
| Operating temperature | -25 ... 55 °C |
| Storage temperature | -40 ... 70 °C |
| Maximum relative humidity | 95 %, non-condensing |
| Ingress protection | IP20 |
| Mounting | DIN rail |
| Dimensions (height x width x depth) | 100 x 72 x 65 mm |
| Weight | 0.33 kg (approx.) |
Questi dati tecnici sono stati ripresi da noi dalla scheda tecnica del produttore e possono contenere errori di trascrizione. Per un’accuratezza del 100 %, consulti la scheda tecnica allegata.
Le compatibilità sono calcolate automaticamente dai dati tecnici dei produttori e hanno carattere informativo. Per impianti complessi consigliamo di far verificare la configurazione da un consulente prima dell’ordine. Dettagli nei Termini e condizioni
