109 € Ohne Steuern

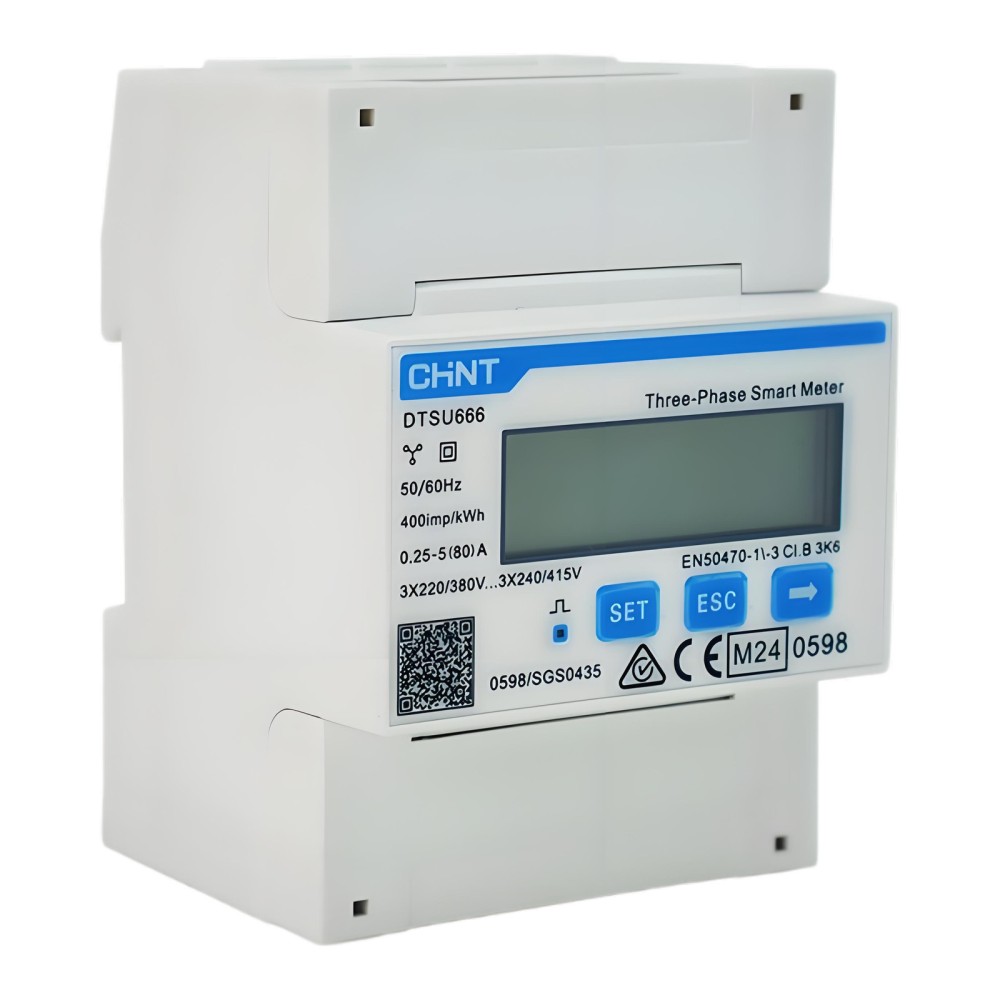

DTSU666 is a CHINT three-phase (3P4W) energy meter, with direct measurement up to 80 A. It measures active and reactive energy in both directions, has accuracy class b (1.0), a current range of 0.25-5(80) A and communicates over RS485 Modbus-RTU. It mounts on a DIN rail and is used for feed-in limitation and consumption monitoring.
DTSU666 is a CHINT three-phase (3P4W) smart energy meter for DIN-rail mounting, with direct measurement up to 80 A. It measures imported and exported active and reactive energy, communicates over RS485 Modbus-RTU and has an LCD display.
SOFAR manuals (HYD 5...20KTL-3PH, CH1000, 25-50KTLX-G3) name the CHINT DTSU666 meter for feed-in limitation and for measuring additional PV inverters.
The meter is wired directly into the measured circuit, without external current transformers; the maximum current is 80 A.
The meter measures energy and power (kW, kvar, kVA), current, voltage, frequency and power factor. The RS485 baud rate can be set from 1200 to 19200 bps (default 9600 bps); it operates from -25 to 55 °C, with IP20 protection.
| Manufacturer | CHINT |
|---|---|
| Model | DTSU666 |
| Type | Smart energy meter, three-phase |
| Connection type | 3P4W |
| Measurement | direct |
| Current range | 0.25-5(80) A |
| Accuracy class | Class B (1.0) |
| Constant | 800 imp/kWh |
| Nominal voltage | 3 x 220/380 V ... 3 x 240/415 V |
| Operating range (voltage) | 0.8 Un ... 1.15 Un |
| Power consumption | 2 W, 10 VA |
| Frequency | 50 Hz or 60 Hz |
| Communication | RS485, Modbus-RTU |
| Baud rate | 1200, 2400, 4800, 9600 (default), 19200 bps |
| Measured values | import/export active and reactive energy (kWh, kvarh), instantaneous power (kW, kvar, kVA), current, voltage, frequency, power factor |
| Display | LCD with backlight |
| Pulse output | LED pulse indication |
| Compliance | EN 50470-1/-3, MID B+D certified |
| Operating temperature | -25 ... 55 °C |
| Storage temperature | -40 ... 70 °C |
| Maximum relative humidity | 95 %, non-condensing |
| Ingress protection | IP20 |
| Mounting | DIN rail |
| Dimensions (height x width x depth) | 100 x 72 x 65 mm |
| Weight | 0.33 kg (approx.) |
Diese technischen Daten wurden von uns aus dem Datenblatt des Herstellers übernommen und können Übertragungsfehler enthalten. Für 100 % Genauigkeit sehen Sie bitte im beigefügten Datenblatt nach.
Die Kompatibilität wird automatisch aus den technischen Daten der Hersteller berechnet und dient nur zur Information. Bei komplexen Anlagen empfehlen wir, die Konfiguration vor der Bestellung von einem Berater prüfen zu lassen. Details in den AGB
